4OM-1505 1-26 3. Maintenance Spots : Chap.1 PEC Recognition X-Axis Ball Screw Apply grease with a brush or a spatula. If a large amount of grease is applied, it may be dispersed over a PCB and the stencil. After applying…
4OM-1505
1-25
3. Maintenance Spots : Chap.1
PEC Recognition Y-Axis
Linear Guide (Front Left Side)
Every 6 Months Lubrication
Use the H-type attachment.
PEC Recognition Y-Axis
Linear Guide (Front Right Side)
Every 6 Months Lubrication
Use the H-type attachment.
Inject new grease from the grease
nipple with a brush or a grease gun.
Inject new grease from the grease
nipple with a brush or a grease gun.
PEC Recognition
Y-Axis Linear Guide
Every Month Cleaning
Do not leave any waste
threads after cleaning.
PEC Recognition
X-Axis Ball Screw
Apply grease with a brush or a spatula.
If a large amount of grease is
applied, it may be dispersed
over a PCB and the stencil.
After applying grease, brush
the surface or scrape with a
spatula until a small amount
of grease remains on the
surface of the ball screw.
Every 6 Months Lubrication
Note
Clean the stopper with an oiled rag.
Note
Note
Note
F4A14
0906-001
4OM-1505
1-26
3. Maintenance Spots : Chap.1

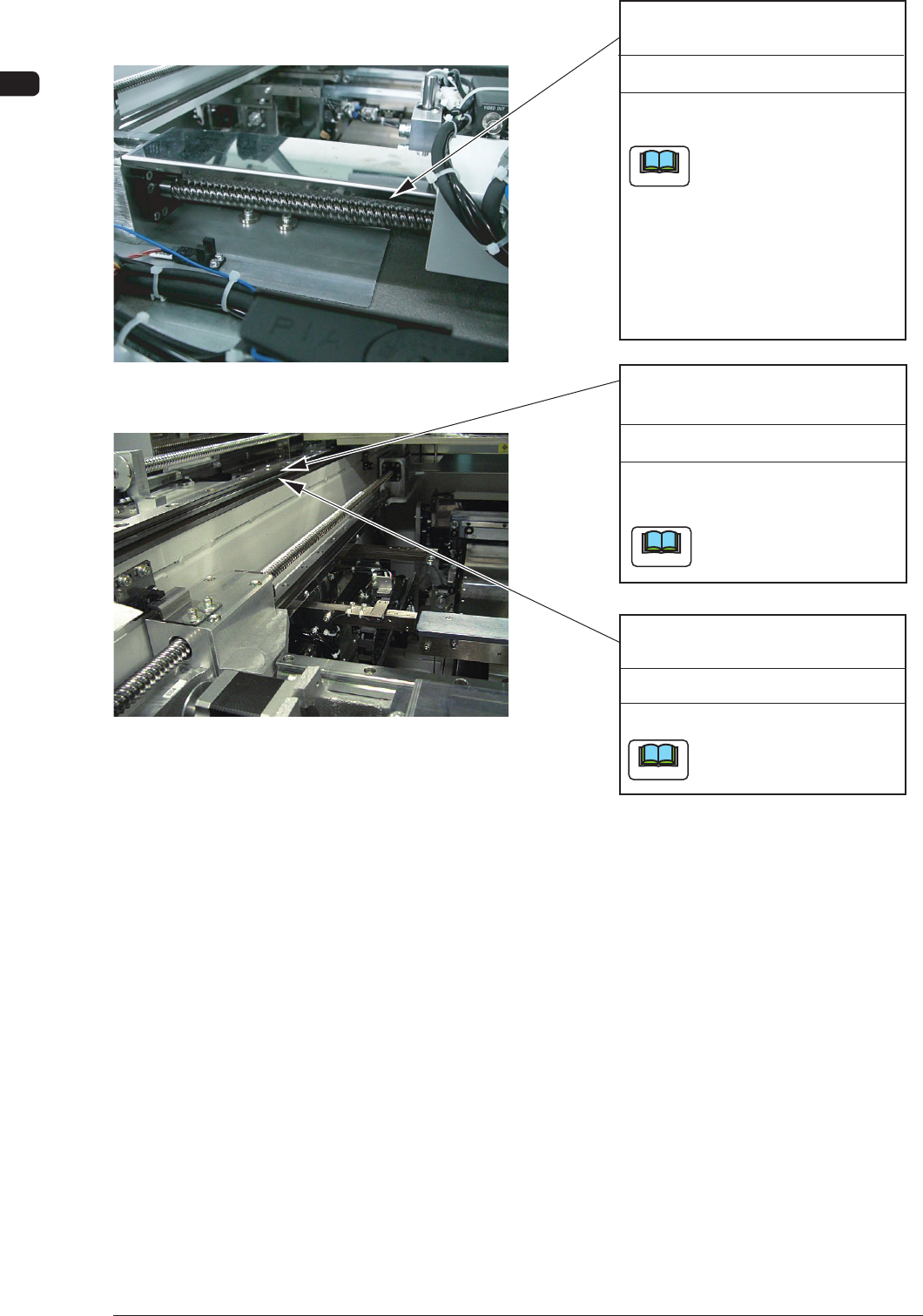

PEC Recognition X-Axis
Ball Screw
Apply grease with a brush or a
spatula.
If a large amount of grease is
applied, it may be dispersed
over a PCB and the stencil.
After applying grease,
brush the surface or scrape
with a spatula until a small
amount of grease remains
on the surface of the ball
screw.
Every 6 Months Lubrication
PEC Recognition Y-Axis
Linear Guide (Rear Side)
PEC Recognition Y-Axis
Linear Guide
Clean the stopper with an oiled rag.
Every Month Cleaning
Do not leave any waste
threads after cleaning.
Every 5 years Lubrication
Use the H-type attachment.
Inject new grease from the grease
nipple with a brush or a grease gun.
Rear Side
Rear Left Side
Note
Note
Note
F4A15
0906-001
4OM-1505
1-27
3. Maintenance Spots : Chap.1
3.2.5 Conveyor Section
Upper Surface of PCB Transfer
Belt
Every Day Cleaning
Remove solder paste and dust
with a vacuum cleaner.
L Conveyor
Linear Guide
Every Month Cleaning
Clean the stopper with an oiled rag.
Do not leave any waste
threads after cleaning.
Every 5 years Lubrication
Apply grease with a brush or a
spatula.
Linear Guide
Note
F4A16
0906-001
