4OM-1505 1-33 3. Maintenance Spots : Chap.1 T able Z-Axis Ball Screw Every 6 Months Lubrication Every 6 Months Lubrication T able Z-Axis Guide Bushing T able Z-Axis Guide Bushing Every Month Cleaning Clean the stopper wi…
4OM-1505
1-32
3. Maintenance Spots : Chap.1
3.2.7 Table Section
Table X-Axis Ball Screw
Move the table Z axis up to
the printing position.
Detach the cover located in
front of the table.
Apply grease to the X-axis
ball screw with a brush or a
spatula.
Every 6 Months Lubrication
(1)
(2)
(3)
F4A23
0906-001
4OM-1505
1-33
3. Maintenance Spots : Chap.1

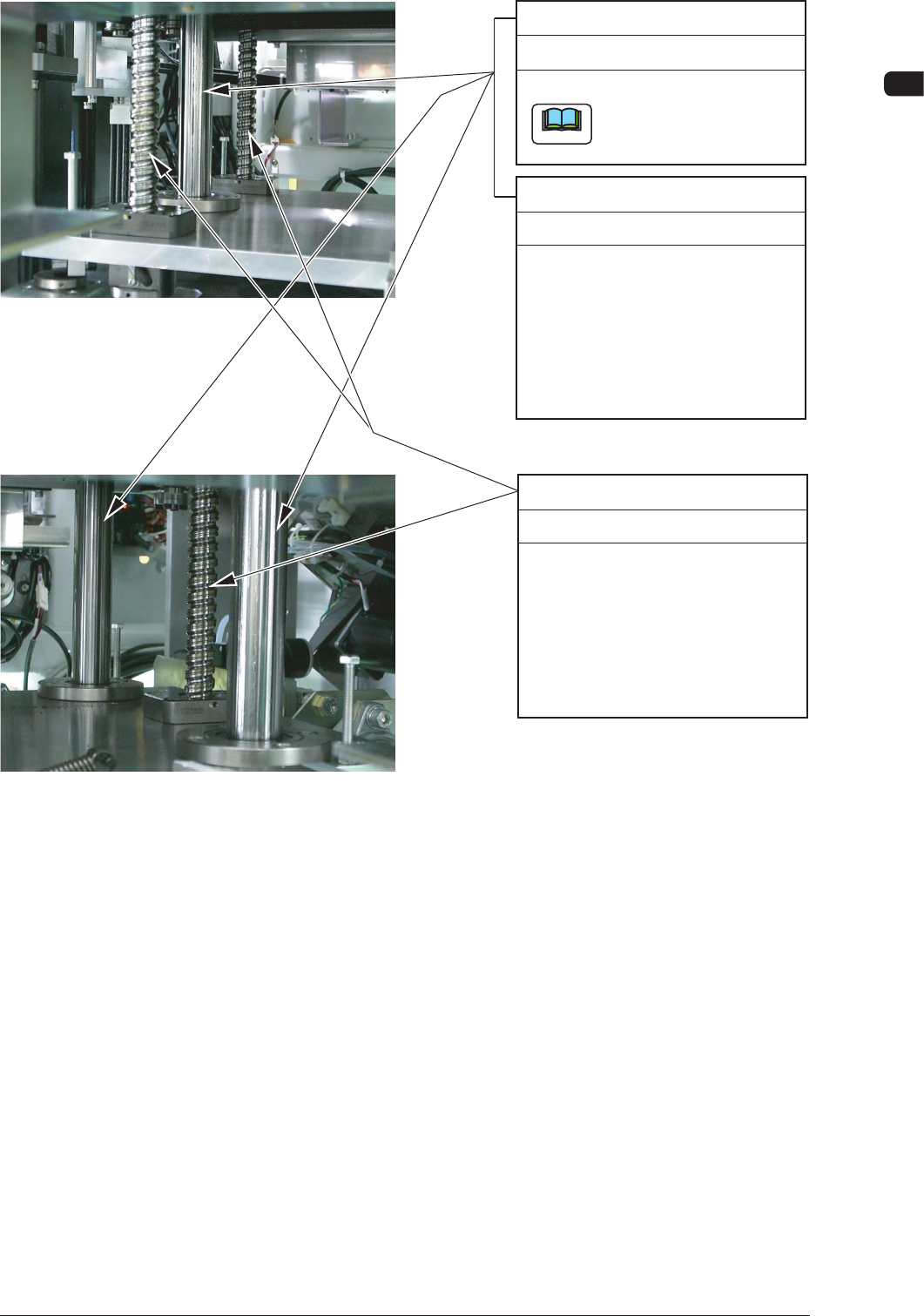

Table Z-Axis Ball Screw
Every 6 Months Lubrication
Every 6 Months Lubrication
Table Z-Axis Guide Bushing
Table Z-Axis Guide Bushing
Every Month Cleaning
Clean the stopper with an oiled rag.
Do not leave any waste
threads after cleaning.
Note
Move the table Z axis up to
the printing position.
Detach the cover located in
front of the table.
Apply grease to the X-axis
ball screw with a brush or a
spatula.
(1)
(2)
(3)
Move the table Z axis up to
the printing position.
Detach the cover located in
front of the table.
Apply grease to the X-axis
ball screw with a brush or a
spatula.
(1)
(2)
(3)
F4A24
0906-001
4OM-1505
1-34
3. Maintenance Spots : Chap.1

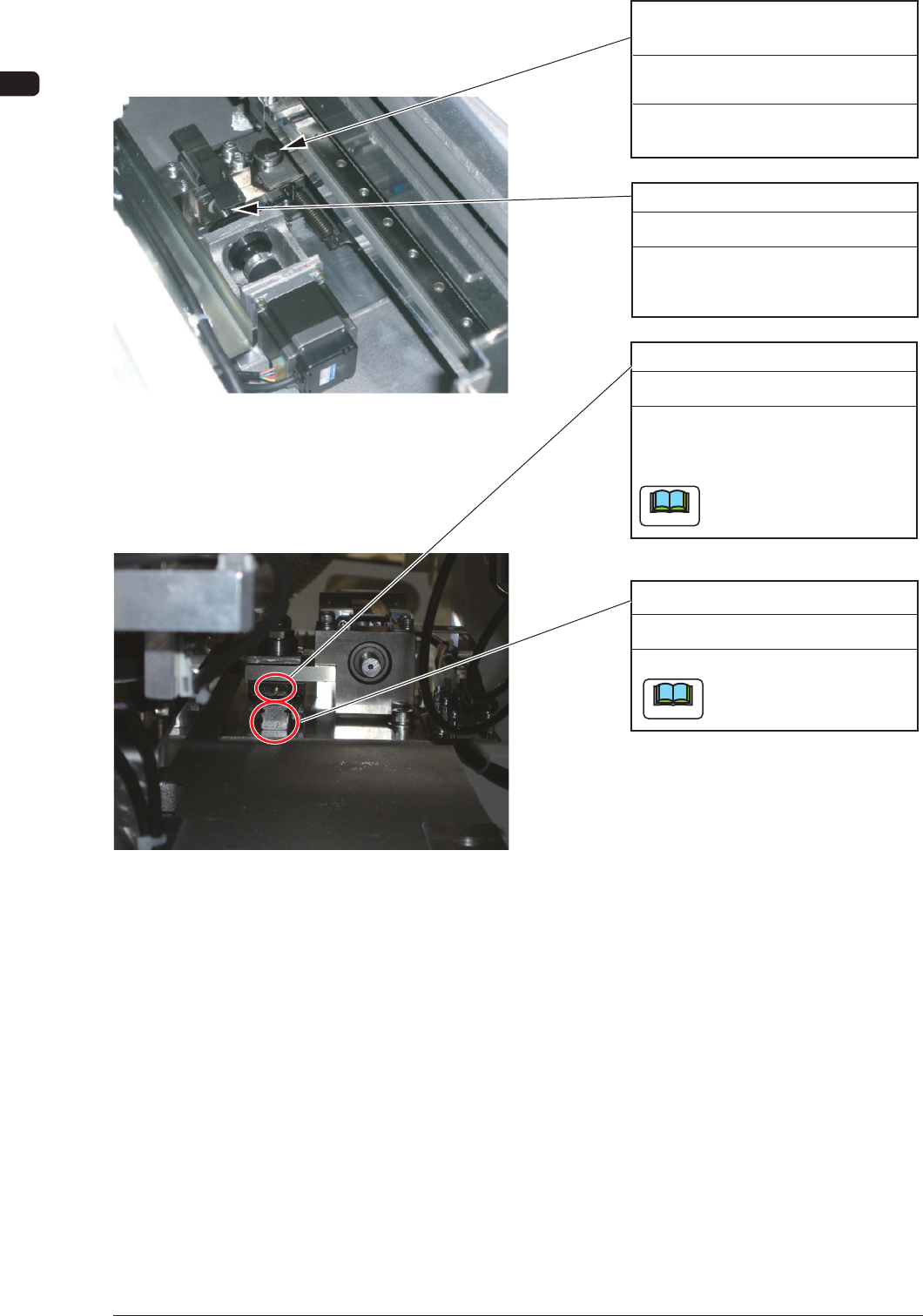

Apply grease with a brush or a
spatula.
Every 3 Months after Initial One
Lubrication (NM1)
Table Q-Axis Movable Bearing
Outer Circumference
Apply grease with a brush or a
spatula.
Every 6 Months Lubrication
Tabel Q-Axis Ball Screw
Clean the stopper with an oiled rag.
Every Month Cleaning
Tabel Q-Axis Linear Guide
Inject new grease from the
grease nipple with a grease gun
from the rear side of the machine.
Every 5 years Lubrication
Use the H-type attachment.
Tabel Q-Axis Linear Guide
Note
Note
Do not leave any waste
threads after cleaning.
F4A25
0906-001
