FK-9F98-29 XP Series Training Text for Service Engineers
Edition 5.0 XP141 – Chapter 1 Initial Adjustment Page 1 of 6
Fuji Machine Mfg. Co., Ltd.Okazaki
SMT Equipment Quality Assurance Dept.
1 – 1 CS Section
Chapter – 1 Initial Adjustment

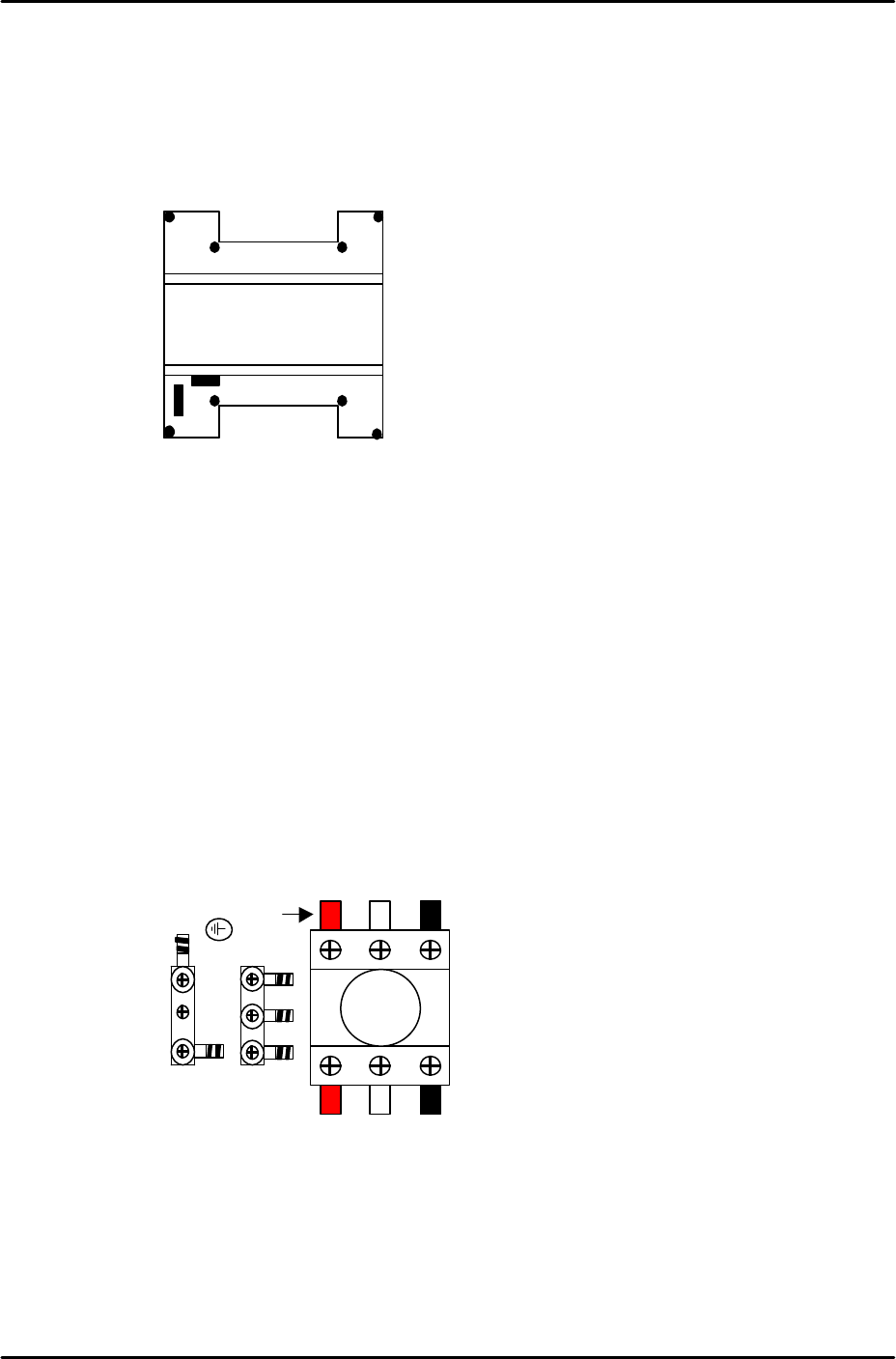

1.1 Leveling
1. Place two track levels at position A, shown in the following diagram:
2. Carry out initial leveling at points 1,2,3,4, then lock all 8 leveling sheets.
3. Leveling tolerance is 0.10mm/1000mm.
1.2 Power and Air connection
Power supply connection
1. Open the power supply BOX at the lower right hand
side of the machine and pull the power line from the
bottom of the BOX.
2. Connect the ground terminal and the ground wire first.
3. Connect the three wires of the power supply cable to the three breaker box (KG41B)
terminals.
L1: red L2: white L3: black
A
1
23
4
L1 L2 L3
Red
FK-9F98-29 XP Series Training Text for Service Engineers
Edition 5.0 XP141 – Chapter 1 Initial Adjustment Page 2 of 6
Fuji Machine Mfg. Co., Ltd.Okazaki
SMT Equipment Quality Assurance Dept.
1 – 2 CS Section

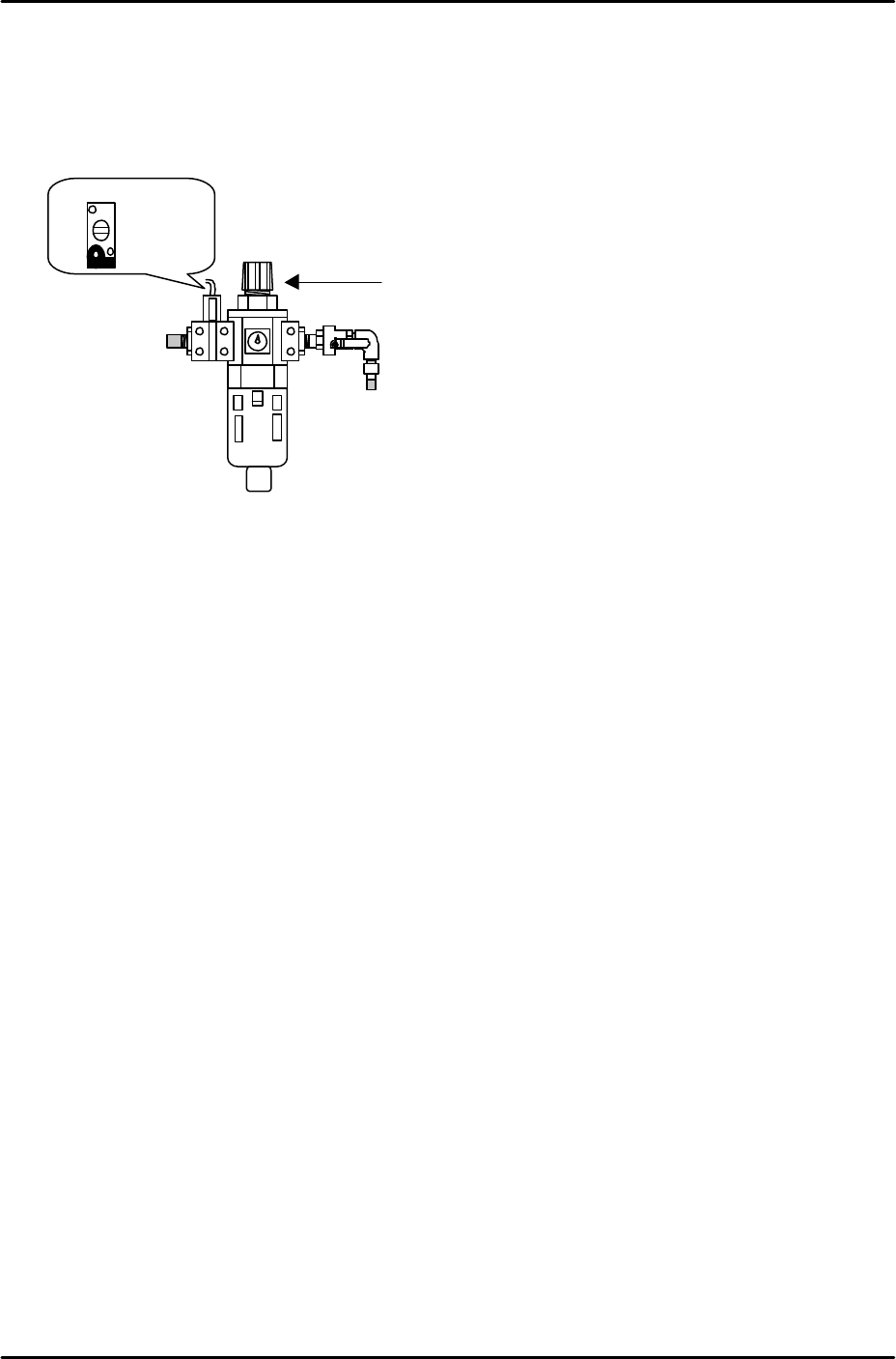

Air hose connection
1. Connect the hose to the air inlet at the machine.
2. Pull up on the regulator knob to release the lock.
3. Turn the regulator knob until the pressure level indicated at the regulator shows 0.5Mpa
(5kgf/cm2).
4. Push down the regulator knob to lock it.
5. Adjust the screw on the vacuum sensor so that the 200-volt power supply to the servos
cuts out when the air pressure drops to 0.4Mpa and below.
6. Select [Maintenance A] – [I/O Check] – [Y016 VacuumPump] – [ON] and confirm that the
vacuum pump dial shows negative pressure.
7. If the dial indicates that the vacuum pump is rotating in the wrong direction the power
cable connection is probably reversed.
8. In this case turn the machine power OFF, trip the breaker and disconnect the power cable
from the mains socket.
9. Check that the power supply connection is correct, and then confirm the power cable is
not reverse phased.
Vacuum Sensor
Regulator Knob
