FK-9F98-29 XP Series Training Text for Service Engineers
Edition 5.0 XP241 – Chapter 4 Loader Adjustment Page 8 of 12
Fuji Machine Mfg. Co., Ltd. Okazaki.
SMT Equipment Quality Assurance Dept.
4 – 8 CS Section
Note: Set the main stopper at a right angle to the fixed rail.
4.8 In-lifter adjustment
1. Select [Maintenance A] – [I/O Check], and turn I/O
Y02D InStLftUpChk ON to raise the in-lifter.
2. Adjust the cylinder stopper bolt so that the clearance
between the in-lifter air cylinder stopper and
underside of the lifter plate becomes 1.0mm.
3. Turn I/O Y02D InStLifterUp OFF to lower the in-lifter.
The top of the lifter plate should now be flush with the
conveyor belt top surface. If not adjust the tilt of the
lifter plate.
4. When step 3 is complete turn I/O Y02D InStLifterUp ON to raise the in-lifter.
5. Now repeat the procedure in step 2, but this time set the clearance to 1.5mm.
Plate jig
(AJPJ-0060)
Place the stopper leading edge at the
same position as the board clamper edge.
Main stopper
45 ~ 47mm
Parts No. ADEQC9201
Adjust the
clearance
to 1.0mm
To adjust the clearance, adjust
the cylinder stopper bolt
Conveyor belt
top surface
Upward limit sensor
Speed controller (DOWN)
Speed controller (UP)
Backup
Plate
Lifter Plate
Conveyor Belt
Align the height of the plate
top surface and belt top
surface.
FK-9F98-29 XP Series Training Text for Service Engineers
Edition 5.0 XP241 – Chapter 4 Loader Adjustment Page 9 of 12
Fuji Machine Mfg. Co., Ltd. Okazaki.
SMT Equipment Quality Assurance Dept.
4 – 9 CS Section

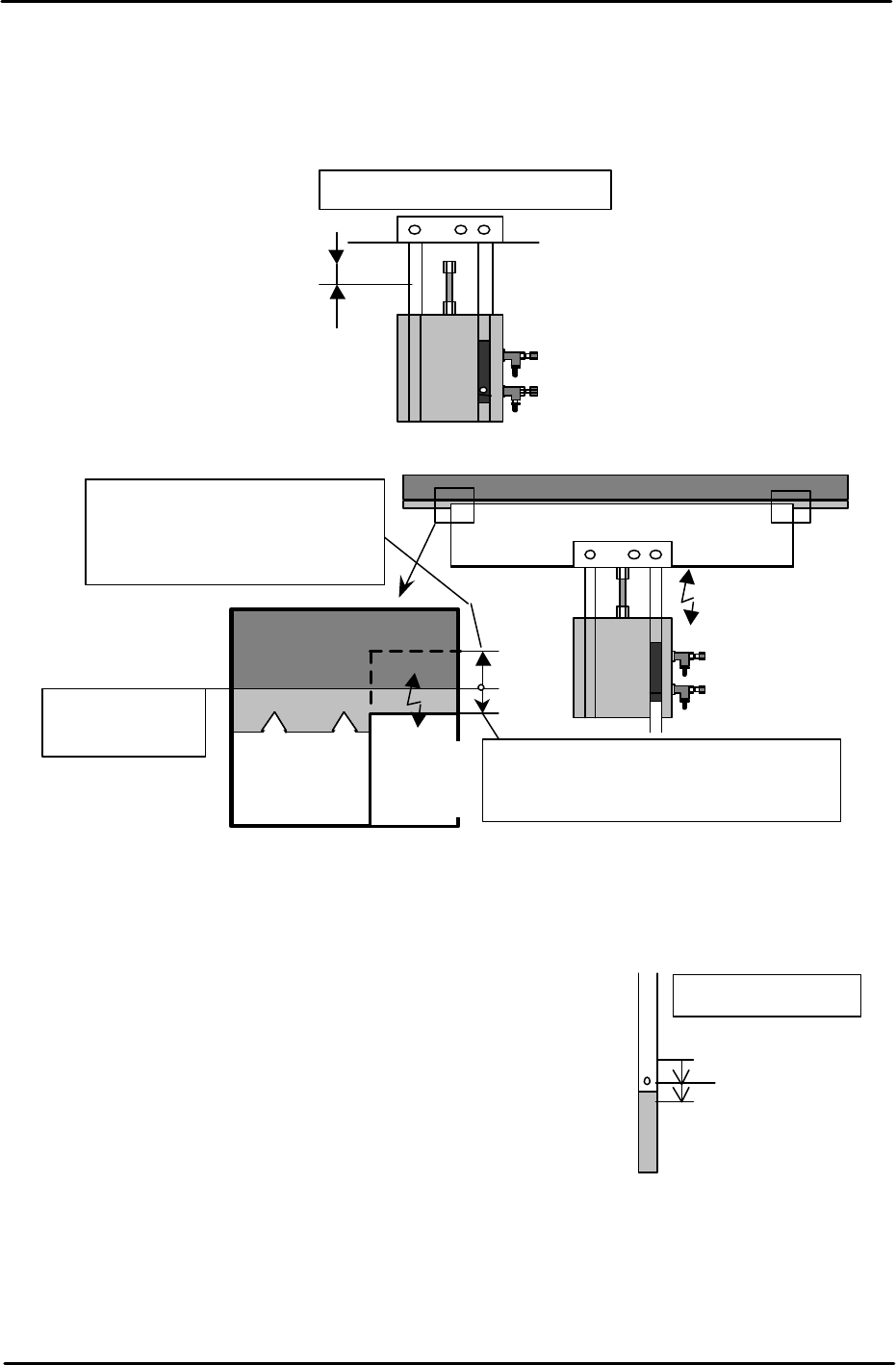

6. Turn I/O Y02D InStLifterUp OFF to lower the in-lifter. Ensure that the lifter plate top
surface is approx. 0.5mm below the conveyor belt top surface. Use a ruler to check.
Confirm both the height and tilt.
7. After adjustment is complete, place a board on the in-conveyor and raise the in-lifter.
Check that the board is not jolted up. And also ensure that the reference side/movable-
side up/down speed is balanced. If not, adjust using the cylinder speed controllers.
8. Air Cylinder Upper Limit Sensor
Turn I/O Y02D InStLifterUp ON and raise the in-lifter. Carry
out the upper limit sensor adjustment. (I/O X028
InStLftUpChk) Slowly raise the sensor from the lower
position until the sensor turns ON and keep raising until it
goes OFF. Then, lower the sensor until it comes ON and
fasten the sensor approximately 1mm below the point that it
first comes ON.
Top surface of
the conveyor belt
Ensure that when the plate is lowered, the
plate top surface is approximately 0.5mm
below the conveyor belt top surface.
When the plate is raised, the plate
top surface should be raised
approx. 1mm from the conveyor
belt top surface.
Lifter
Plate
Lifter Plate
Conveyor Belt
Adjust the clearance to 1.5mm.
Fix the sensor
Sensor ON: Lower 1mm
Sensor OFF
In-lifter (UP)
FK-9F98-29 XP Series Training Text for Service Engineers
Edition 5.0 XP241 – Chapter 4 Loader Adjustment Page 10 of 12
Fuji Machine Mfg. Co., Ltd. Okazaki.
SMT Equipment Quality Assurance Dept.
4 – 10 CS Section

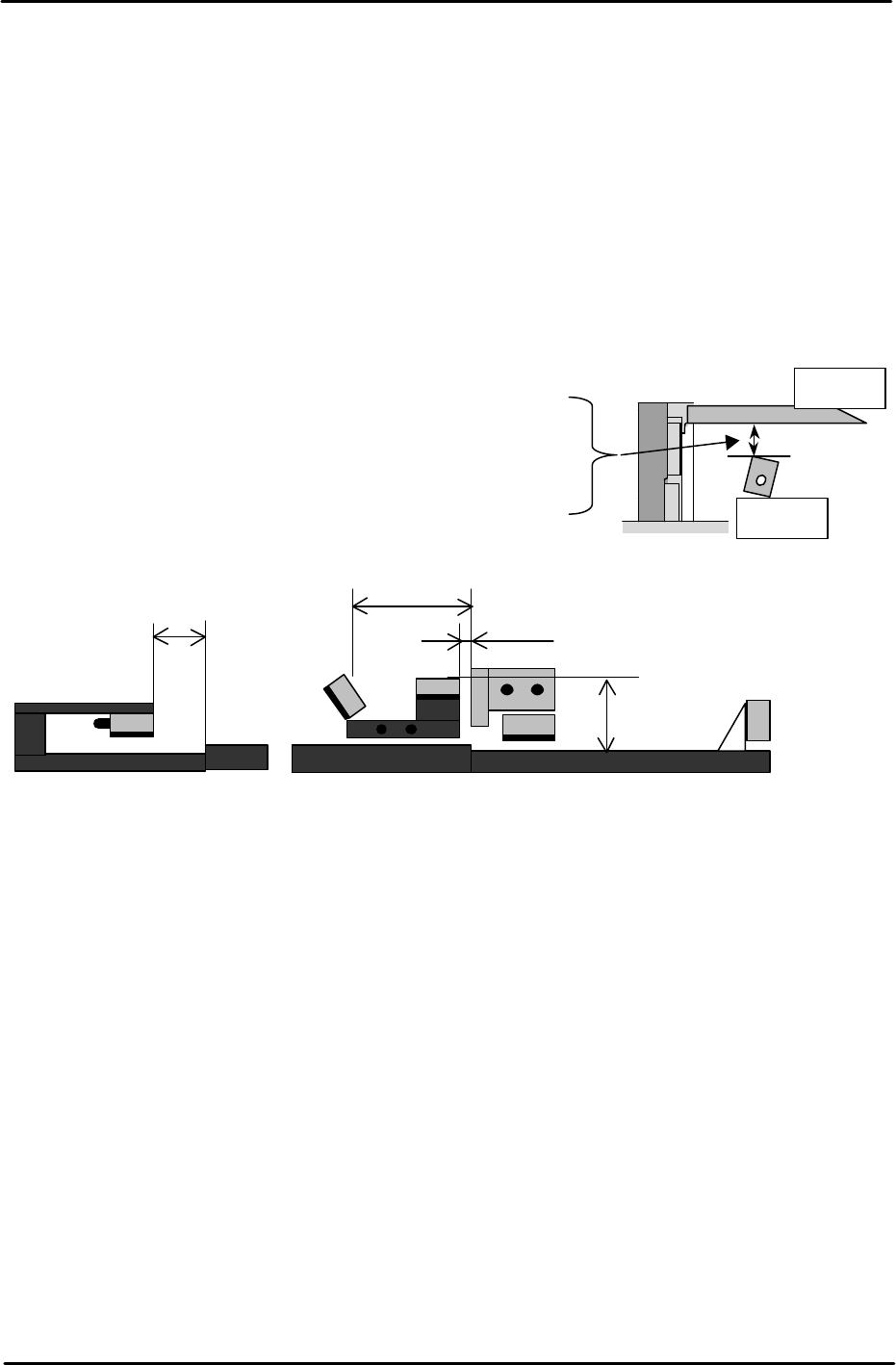

4.9 Board Sensors Adjustment
1. For each board sensor adjustment, use a FUJI96 board.
2. Set the sensor dial to its maximum volume (to clockwise).
Note: Ensure that when the sensor volume is at the maximum it does not detect any part
of the X and Y-axes moving above it. If the X or Y-axes affect the sensor, reduce the
sensor volume.
To ensure that there is enough clearance between the board and sensors, adjust the
distance between the board underside and the sensor top surface to the following
distances:
1. In-lifter board arrival sensor................................ X01B InStArrvChk
2. Main conveyor board deceleration sensor ......... X01C MainStDecelPnt
3. Main conveyor board arrival sensor.................... X01D MainStArrvChk
4. Main conveyor board pass sensor...................... X022 MainStPassChk
5. Out conveyor board pass sensor........................ X020 OutStPassChk
In- lifter board arrival sensor ............................27mm
Main conveyor board deceleration sensor.........25.5mm
Main conveyor board arrival sensor ................ 25.5mm
Main conveyor board pass sensor ...................30mm
Out conveyor board pass sensor ......................25.5mm
Board
Sensor
40mm
In-lifter
1
2 3
4
5mm
60mm
36mm
Main lifter
5
Out-conveyor
