FK-9F98-29 XP Series Training Text for Service Engineers
Edition 5.0 XP241 – Chapter 8 Options Page 4 of 10
Fuji Machine Mfg. Co., Ltd. Okazaki
SMT Equipment Quality Assurance Dept.
8 – 4 CS Section
8.2 Coplanarity Check Camera Adjustment
1. Equipment: Coplanarity Camera Nozzle Jig (Z9631DEPJ3410).
Coplanarity camera settings
1. Set the coplanarity check camera settings and aperture as follows:
Signal 1N
Gain F
Aperture 8
Note: ensure that the lens unit is fastened to the camera unit with
adhesive (Loctite 425).
Note: Confirm that the camera lens is a 35mm lens.
2. Make sure the machine power and main breaker are OFF and
then remove the cover from the coplanarity check camera amplifier. This is located on
the machine base below the camera.
3. Set the top right rotary switch to the correct position as illustrated in the following diagram
and picture:
35mm lens
A F M
GAIN
SIGNAL
1 N
1 I
VIDEO OUT/DC IN/SYNC
35 mm
Coplanarity Camera Amplifier
Coplanarity Camera Amplifier
FK-9F98-29 XP Series Training Text for Service Engineers
Edition 5.0 XP241 – Chapter 8 Options Page 5 of 10
Fuji Machine Mfg. Co., Ltd. Okazaki
SMT Equipment Quality Assurance Dept.
8 – 5 CS Section
Vision Board Setting
1. Before proceeding with this setting make sure that the machine power and breaker are
OFF.
2. In order to set the vision board jumpers for use with the coplanarity check camera please
refer to the following illustration and picture:
3. It is necessary to remove the Vision board from the rack in order to set the jumpers. The
CPU board and vision boards are joined, so they must be removed together.
4. Ensure that JP2 is set to short and that JP3 is set to OPEN.
S1
.1
S1
.2
S1
.3
S1
;4
S1
.5
S1
.6
S1
.7
S1
.8
ONJP7 JP6
JP3
JP2
JP5
The dipswitch position is shown in black
Open Short
For details of the location of
the vision board please refer
to the VME rack
configuration diagram in the
supplementary information
section of this manual
JP6 is open
JP7 is shorted
JP3 is open
JP2 is shorted
JP5 is shorted
Note that the
orientation of this
picture is different to
that of the diagram
above
FK-9F98-29 XP Series Training Text for Service Engineers
Edition 5.0 XP241 – Chapter 8 Options Page 6 of 10
Fuji Machine Mfg. Co., Ltd. Okazaki
SMT Equipment Quality Assurance Dept.
8 – 6 CS Section
Proper Setting
1. Select [Maintenance C] – [Proper Data Editor] – [Machine_Type] and set “_Coplanarity”
to “1”.
2. Select [Maintenance C] – [Proper Data Editor] – [Others] and temporarily set
“_CoplaCamShutterSpeed” to “3000”.

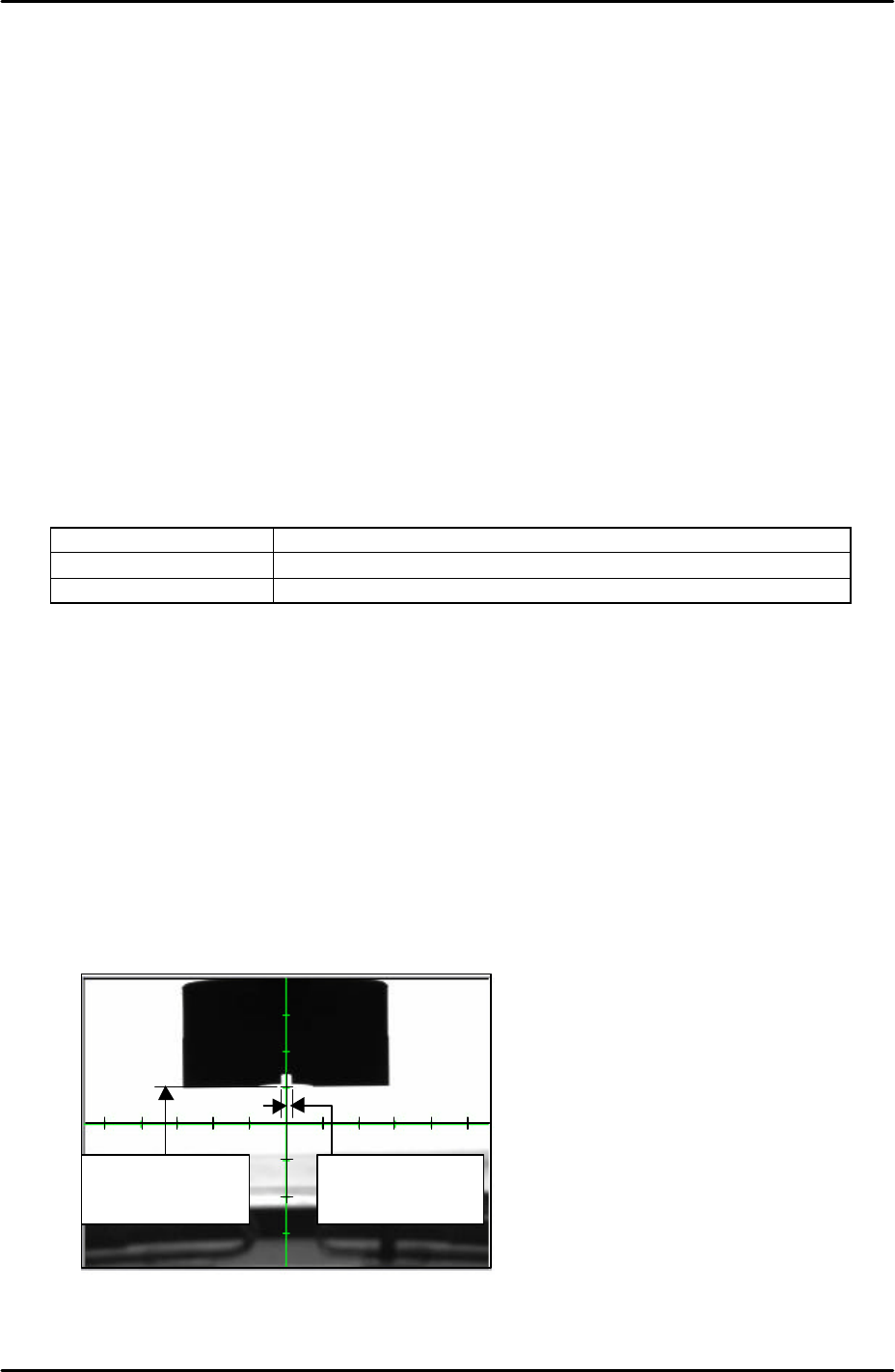

Camera position
1. Set the coplanarity camera nozzle jig in position 1 of the nozzle change station.
2. Select [Production] – [Nozzle Editor] and set the nozzle size for position 1. Note that any
size is okay as long as the setting is not “Empty”.
3. Select [Manual Operation] – [Nozzle Operation] – [1] – [Execute] – [START] and pick up
the coplanarity camera nozzle jig from the nozzle change station.
4. Select [Maintenance C] – [Proper Data Editor] – [Others] and set the following proper
data items:
X_CoplanarityPosX 645
Y_CoplanarityPosY Here input the “_PrismBack” value input in chapter 6.6
Z_CoplanarityPosZ 43.7
5. Select [Maintenance A] – [Jog] and bring the X and Y axes to the positions input in step
4.
6. Once the positions of the X and Y-axes have been set, bring the Z-axis to 43.7mm.
7. Select the coplanarity camera and display the cross hairs on the screen.
8. The coplanarity camera jig should be visible. Temporarily set the focus of the coplanarity
camera by turning the focus ring on the end of the lens.
9. Adjust the position of the camera bracket so that the vertical cross hair is in the center of
the hole in the coplanarity camera nozzle jig. Please see the picture below:
5 memory scales
from the horizontal
cross hair
Vertical cross hair is
in the center of the
nozzle jig
