FK-9F98-29 XP Series Training Text for Service Engineers
Edition 5.0 XP241 – Chapter 9 New MTU Adjustment Page 17 of 21
Fuji Machine Mfg. Co., Ltd. Okazaki
SMT Equipment Quality Assurance Dept.
9 – 17 CS Section
9.23 Tray catch stopper adjustment
1. For this adjustment do not use the tray pallet jig (Z9631DEPJ3740) because it interferes.
Use a normal tray pallet instead.
2. Set a tray pallet in slot [51,52].
3. Select [Manual Operation] – [Tray Operation] – [Tray height measurement].
4. After tray height measurement is complete select slot [51,52] – [Move Elevator] to go to
the tray transference position for that slot.

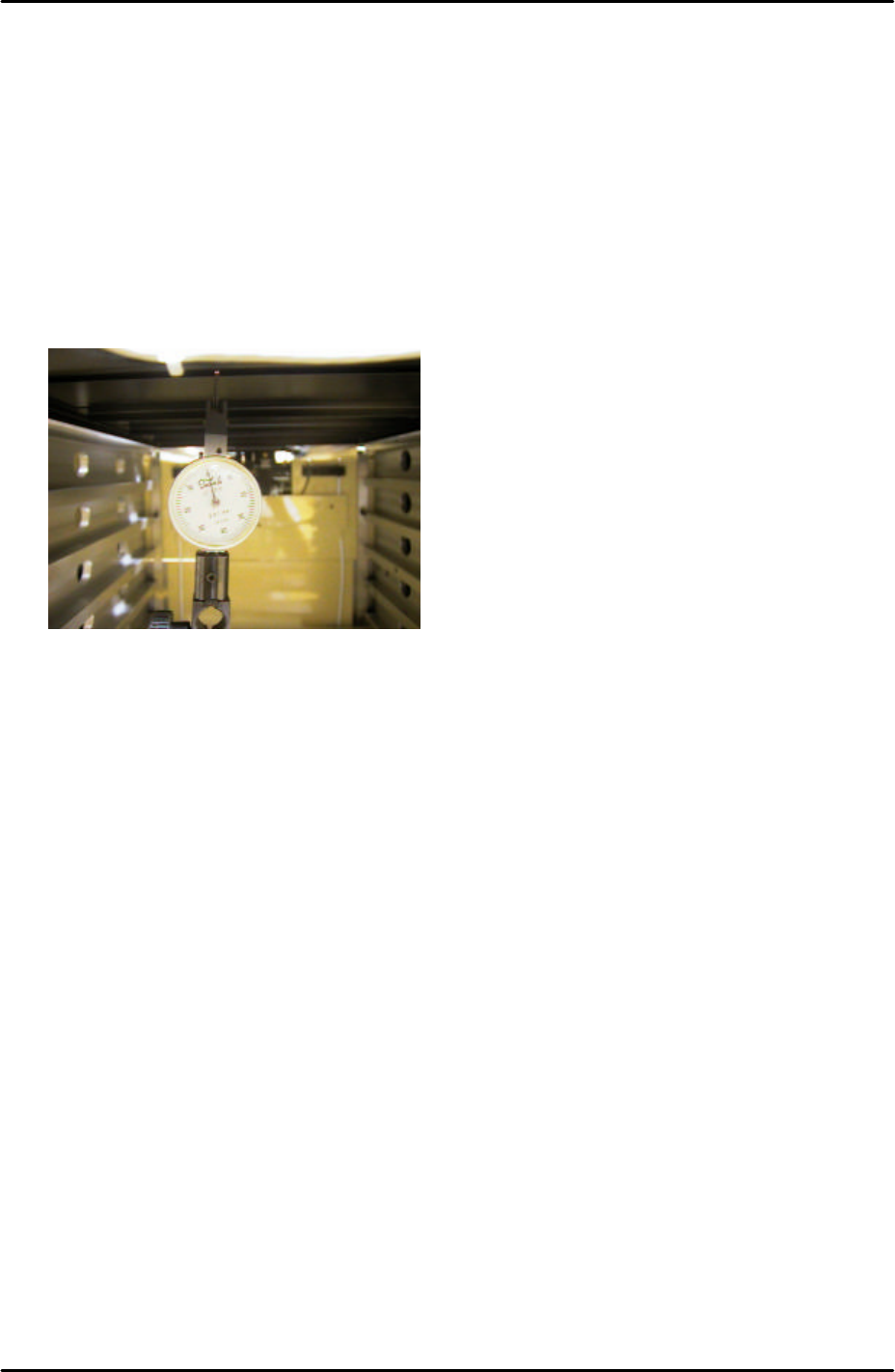

5. Set a dial gage to 0 on the tray pallet as shown in the photo:
6. Move the tray pallet forward by selecting [Manual Operation] – [Tray Operation] – [Shuttle
Forward].
7. Retract the tray pallet by selecting [Manual Operation] – [Tray Operation] – [Shuttle
Retract].
8. At this position the dial gage should read 0 +/- 0.1mm. If not adjust and lock the tray
catch stopper.
9. After adjusting the stopper so that the dial gage reads 0 +/- 0.1mm, advance and retract
the tray pallet again and confirm the dial gage reading is within tolerance.
FK-9F98-29 XP Series Training Text for Service Engineers
Edition 5.0 XP241 – Chapter 9 New MTU Adjustment Page 18 of 21
Fuji Machine Mfg. Co., Ltd. Okazaki
SMT Equipment Quality Assurance Dept.
9 – 18 CS Section
9.24 Shuttle clamp position check
1. Temporarily set the large block jig (Z9631ADEPJ8172) in the center of slot [41,42].
2. Move the T-axis so that slot [51,52] moves to the tray transference position.

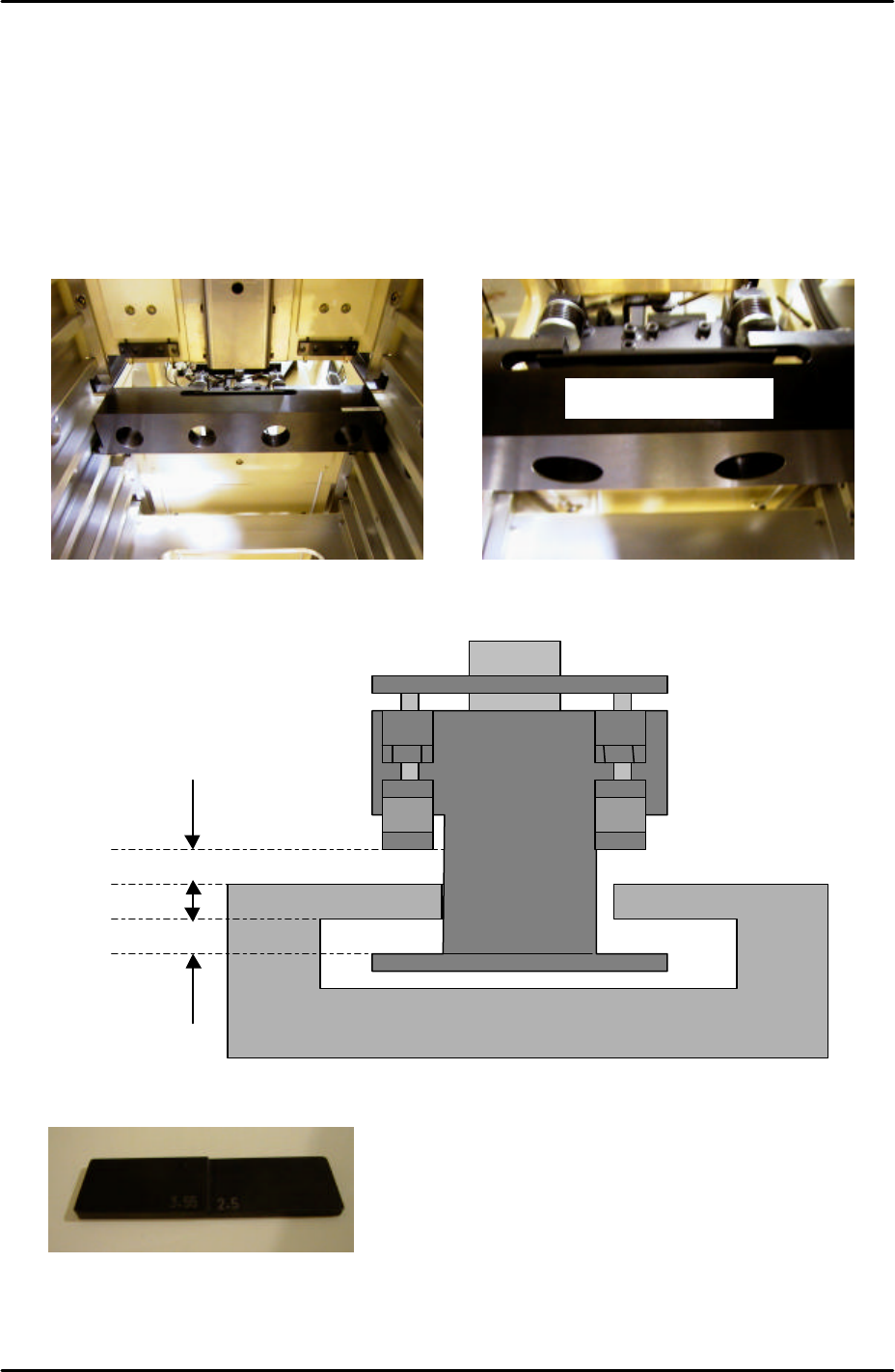

3. Position the large block jig so that the cut out section hooks over the shuttle clamper as
shown in the photographs below. Make sure that the large block jig is pushed as far
forward as possible so that it is right up against the MTU guide rails:
4. Under these conditions check that the front and back clearances between the shuttle
clamper and jig are within tolerance as shown in the following diagram:
5. Use a feeler gage jig or similar object to measure the gaps:
6. If the clearance is not within tolerance recheck the shuttle clamping position adjustment
(9.16) and the tray catch stopper adjustment (9.23).
Z9631ADEPJ8172
2.5mm to 3.55mm
2.5mm to 3.55mm
Z9631ADEPJ8172
3.55 2.5
FK-9F98-29 XP Series Training Text for Service Engineers
Edition 5.0 XP241 – Chapter 9 New MTU Adjustment Page 19 of 21
Fuji Machine Mfg. Co., Ltd. Okazaki
SMT Equipment Quality Assurance Dept.
9 – 19 CS Section
9.25 Tray detection sensor adjustment
1. Move the T-axis to the “T_TrayOrg” position.
2. Set the tray shutter at position 1.

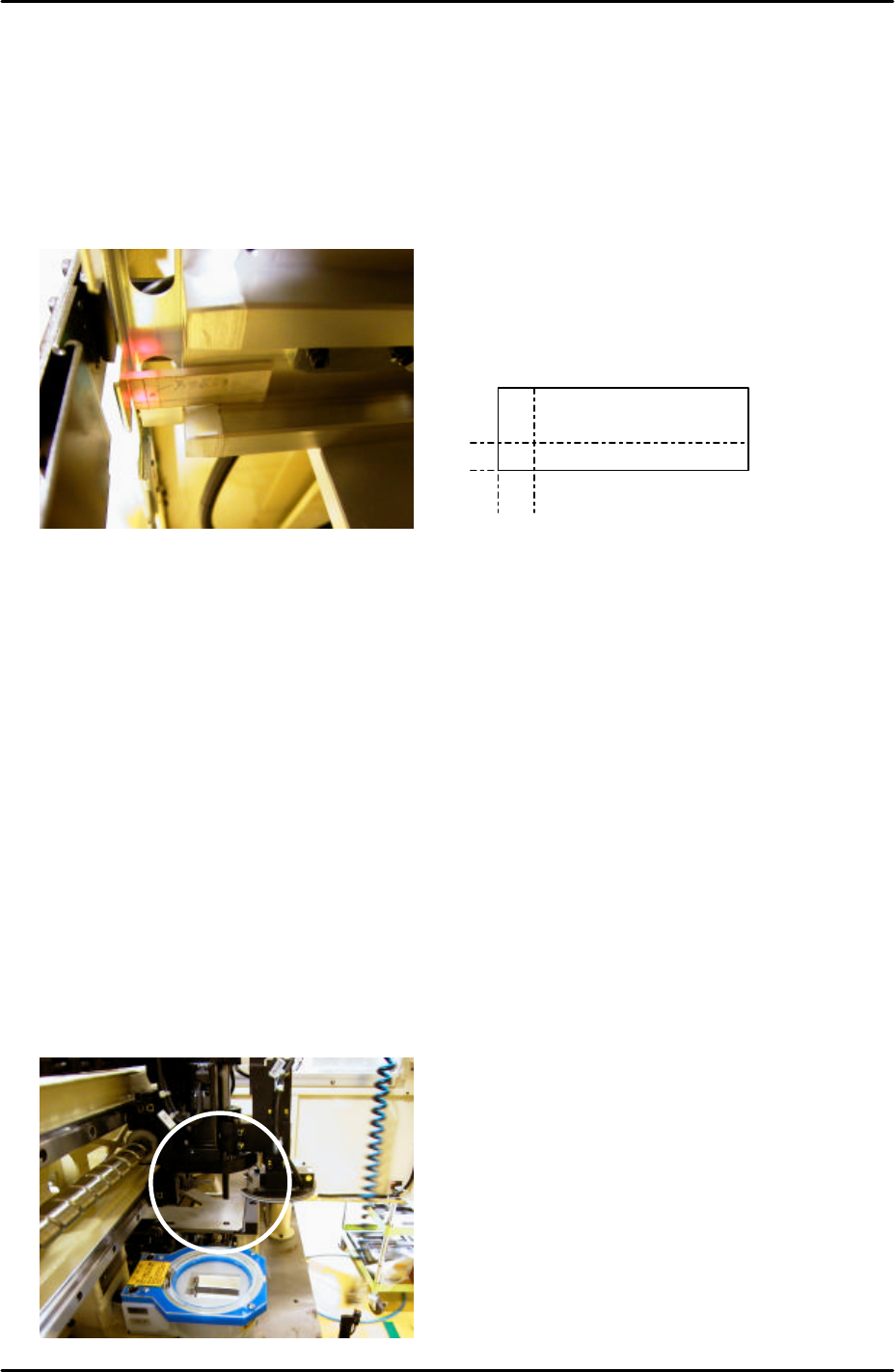

3. Slide the acrylic jig along the slot [01,02] magazine rail until it contacts the shutter as
shown below:
4. Adjust the position of the tray detection sensor so that the sensor beam is in the center of
the cross on the jig.
5. If it is impossible to set the sensor beam in the center of the cross then set it as close as
possible.
9.26 Tray pickup position measurement
1. Set the tray jig (Z9531DEPJ3522) in slot [01,02] and select [Manual Operation] – [Tray
Operation] – [01,02] – [Move Elevator] to bring the jig to the tray origin position.
2. Select [Shuttle Forward] to bring the tray jig to the tray pickup position.
3. Select [Maintenance A] – [I/O Check] – [Y021 NozzleUnhold] – [OFF] and attach the tray
pickup position nozzle jig (Z9731DEPJ3650) to the placing head.
4. Bring the placing head over the tray jig and then press the emergency stop button to cut
the 200V power supply to the servos:
5mm
4mm
Acrylic Jig
