FK-9F98- 29 XP Series Training Text for Service Engineers Edition 5.0 Supplementary Information Fuji Machine Mfg. Co., Ltd. Okazaki SMT Equipment Quality Assurance Dept. CS Section XP141E Jigs MFU Device Jig Z9631ADEPJ10…
FK-9F98-29 XP Series Training Text for Service Engineers
Edition 5.0 Supplementary Information
Fuji Machine Mfg. Co., Ltd. Okazaki
SMT Equipment Quality Assurance Dept.
CS Section

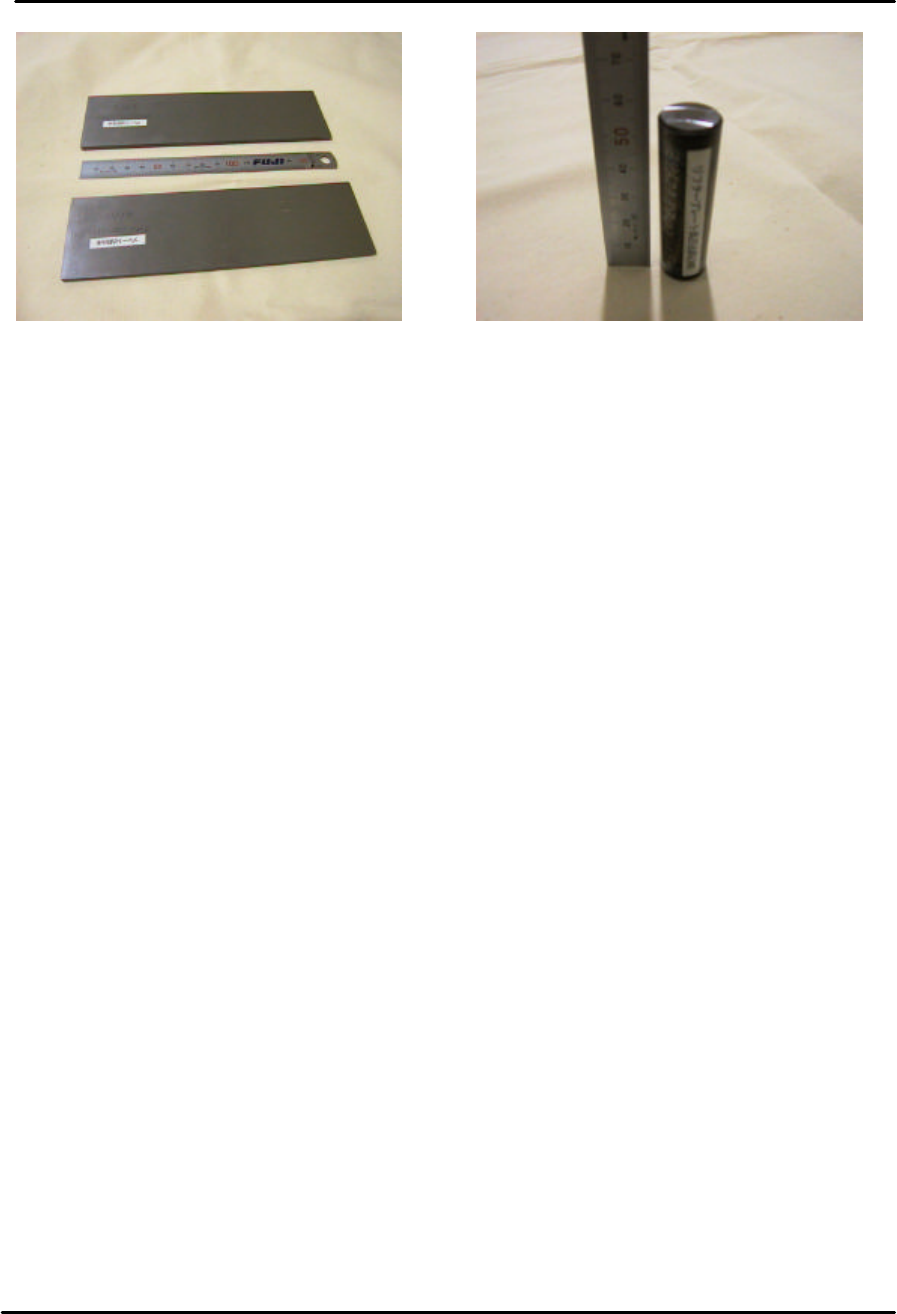

Lifter Height Adjustment Plate Jig
Z9623DBQJ1560
Lifter Height Adjustment Cylindrical
Jig Z9623DBQJ1550
FK-9F98-29 XP Series Training Text for Service Engineers
Edition 5.0 Supplementary Information
Fuji Machine Mfg. Co., Ltd. Okazaki
SMT Equipment Quality Assurance Dept.
CS Section

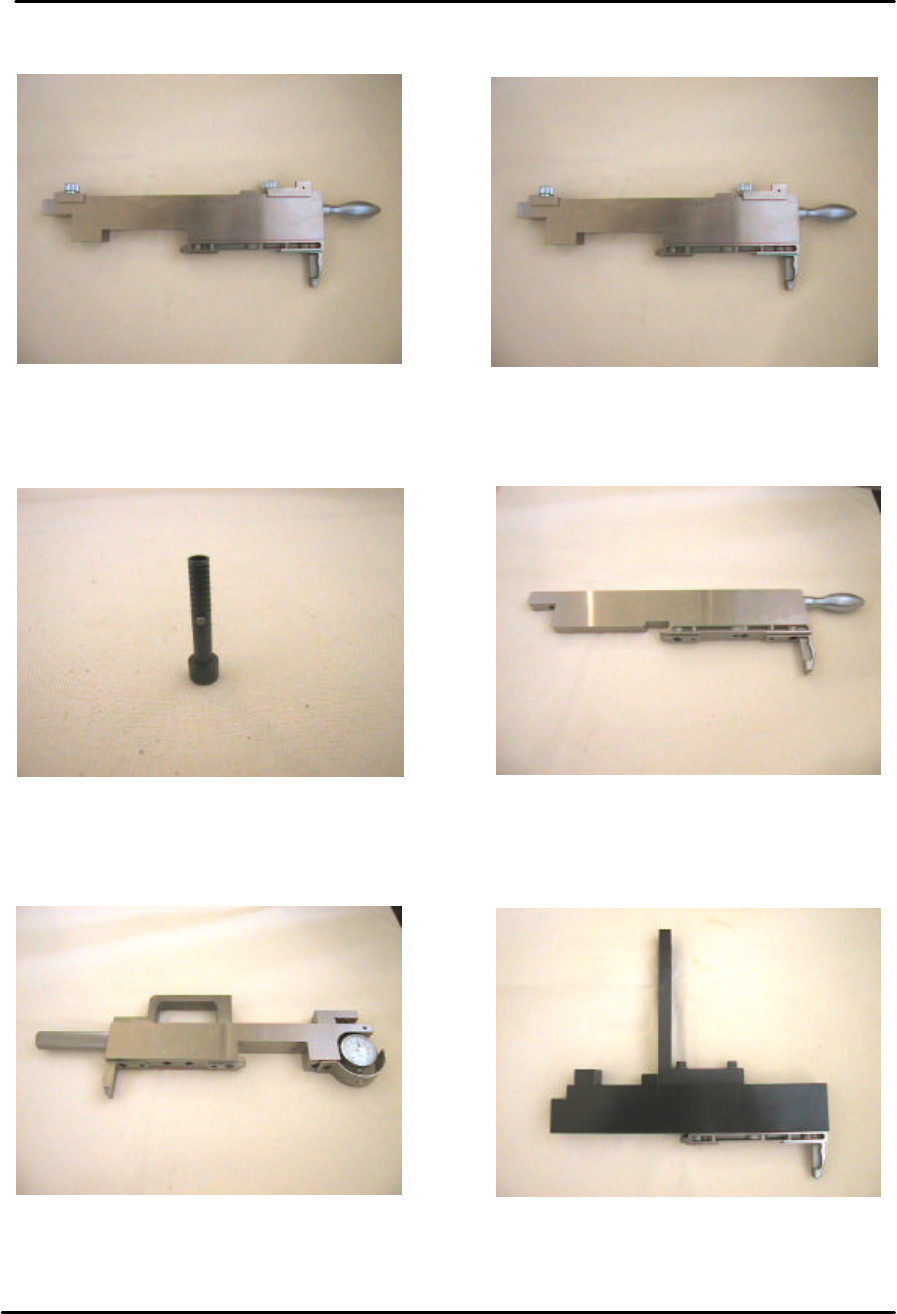

XP141E Jigs
MFU Device Jig
Z9631ADEPJ10000
Tape Leaf Check Sensor Jig
Z9631ADEPJ10000
Nozzle Jig
A5706ASEAJ8100
XY Pick Up Position Jig
Pick Up Height Measurement Jig
Z9064AVJ5540
Feeder Indexing Lever Height
Adjustment Jig Z9913AWPJ9310
FK-9F98-29 XP Series Training Text for Service Engineers
Edition 5.0 Supplementary Information
Fuji Machine Mfg. Co., Ltd. Okazaki
SMT Equipment Quality Assurance Dept.
CS Section

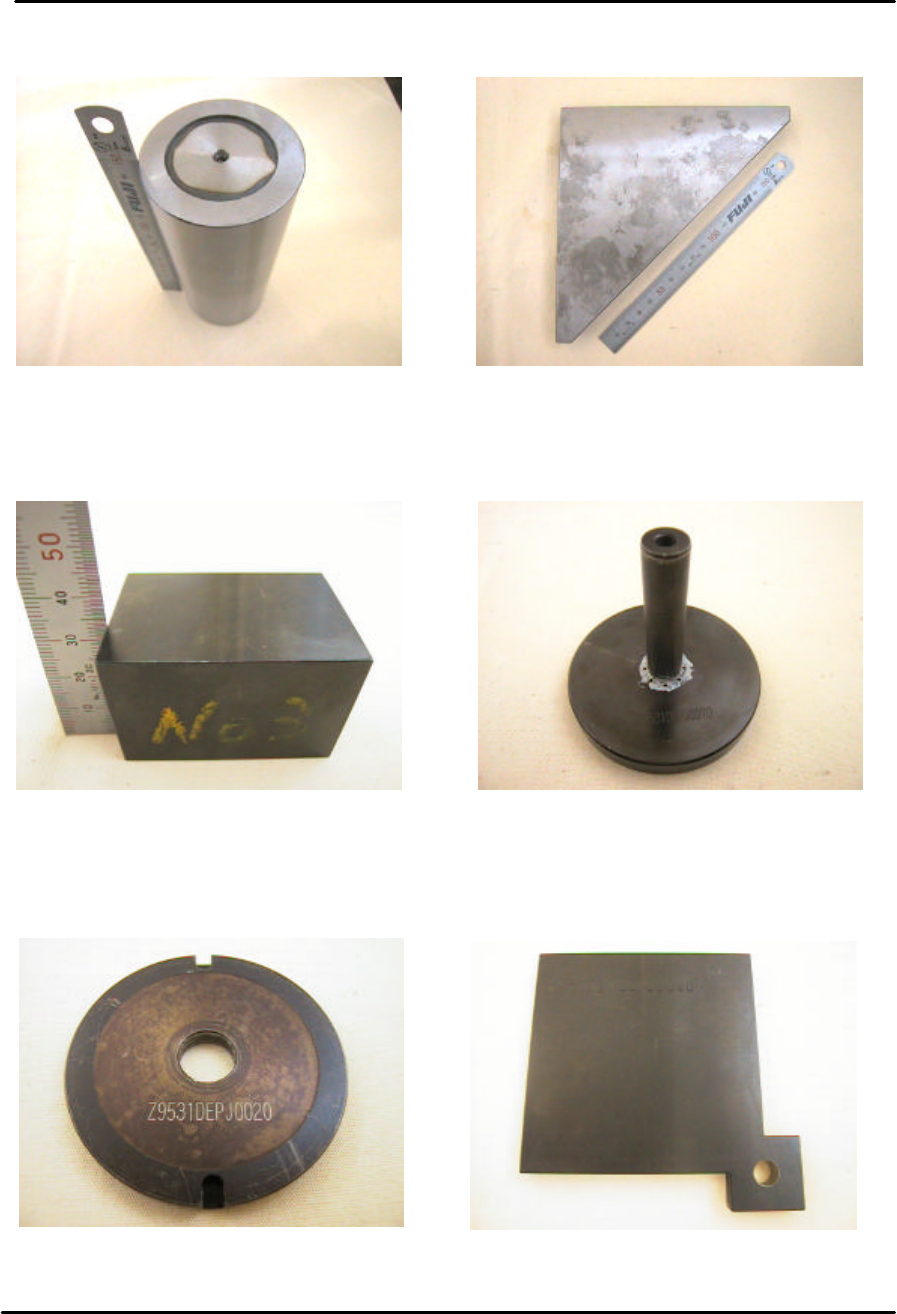

XP241E and XP341E Jigs
Cylindrical Jig
Z9531DEPJ0060
Platform Plate Jig
Z9531DEPJ1080
33mm Height Block Jig
Z5704DEPJ0010
Nozzle Jig
Z9531DEPJ0070
Ring Jig
Z9531DEPJ0020
Tray Pick Up Measurement Jig
Z9531DEPJ0040
