MIL-STD-883F METHOD 2010.11 18 June 2004 43 FIGURE 2010-35. Cl ass level S cr iter ia for wi re(s ) cr ossi ng wire(s ) .
MIL-STD-883F
METHOD 2010.11
18 June 2004
42
Condition A Condition B
Class level S Class level B
e. Wire(s) crossing wire(s) when viewed from above, e. Wire(s) crossing wire(s) when viewed from above,
(excluding common conductors) except in multitiered (excluding common conductors) except that wires
packages, where the crossing occurs within the crossing wires bonded to package posts that are
boundary of the lower wire bond tier(s) being crossed at difference heights, or wires bonded into the
or packages with down bond(s). In these situations, package cavity that cross are acceptable if they
the wires that cross are acceptable if they maintain maintain a minimum clearance of two wire diameters
a minimum clearance of two wire diameters (see figure (e.g., multitiered packages or packages with down
2010-35). bond chips).
NOTE: No bond wire shall cross more than one other
bond wire and there shall be no more than
4 crossovers or crossovers involving more than 10
percent of the total number of wires, whichever is
greater for any single package cavity.
f. Wire(s) not in accordance with bonding diagram.
3.2.3 Die mounting
.
3.2.3.1 Die mounting eutectic
. No device shall be acceptable that exhibits:
a. Die mounting material buildup that extends onto the top surface or extends vertically above the top surface of the
die.
b. Die mounting material (eutectic wetting) not visible around at least two complete sides or 75 percent of the die
perimeter, except for transparent die.
c. Transparent die with less than 50 percent of the area bonded.
d. Flaking of the die mounting material.
e. Balling or buildup of the die mounting material that does not exhibit a minimum of 50 percent peripheral fillet when
viewed from above or the accumulation of die mounting material is such that the height of the accumulation is
greater than the longest base dimension or the accumulation necks down at any point (see figure 2010-36).
MIL-STD-883F
METHOD 2010.11
18 June 2004
43

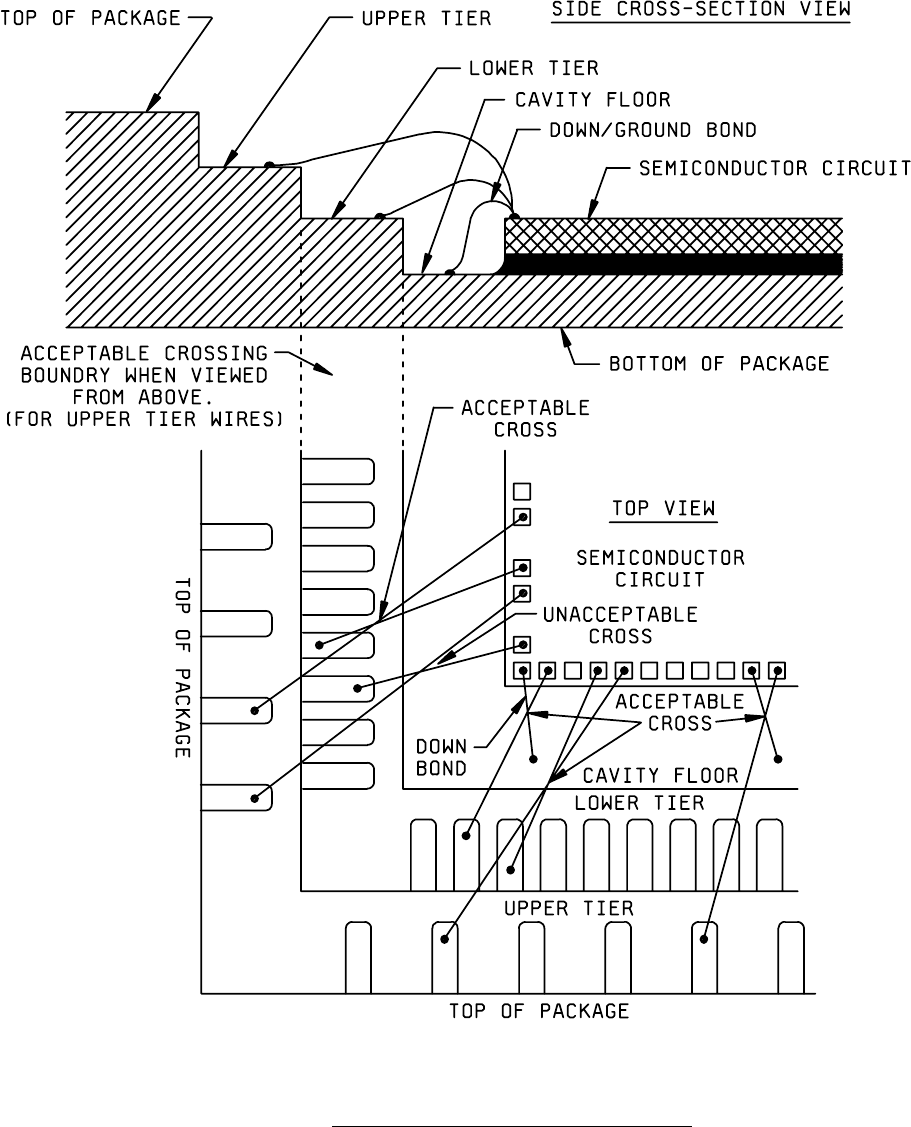

FIGURE 2010-35. Class level S criteria for wire(s) crossing wire(s)
.
MIL-STD-883F
METHOD 2010.11
18 June 2004
44

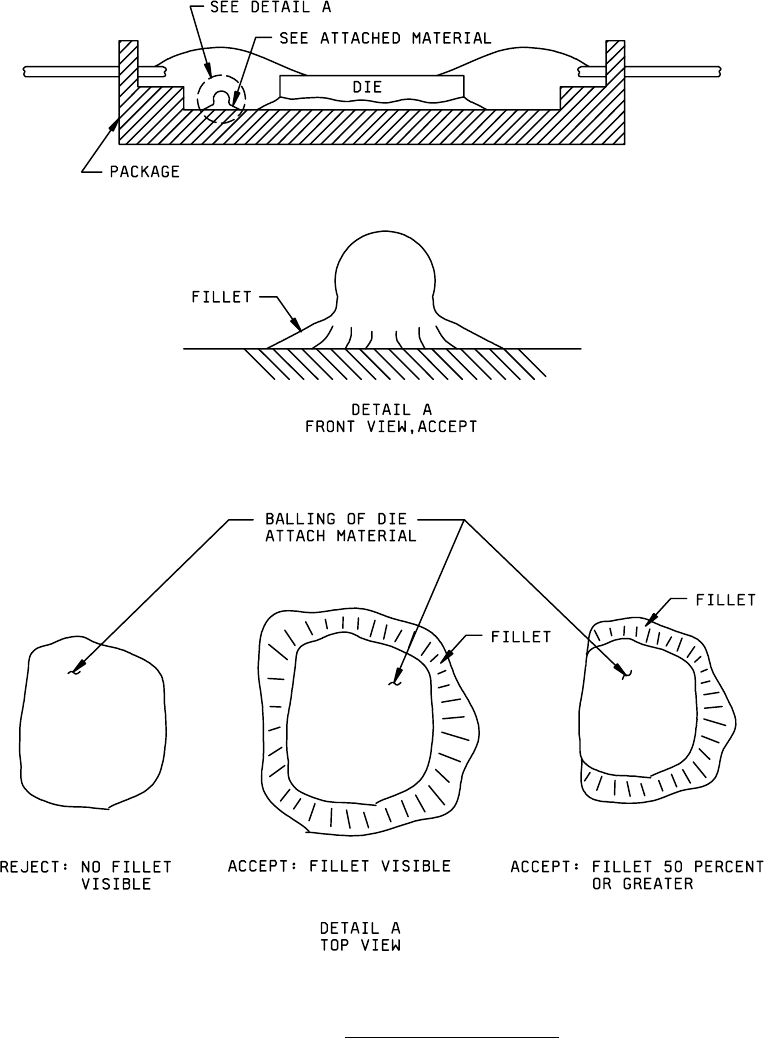

FIGURE 2010-36. Balling of die attach material
.
