MIL-STD-883F
METHOD 2018.4
18 June 2004
22

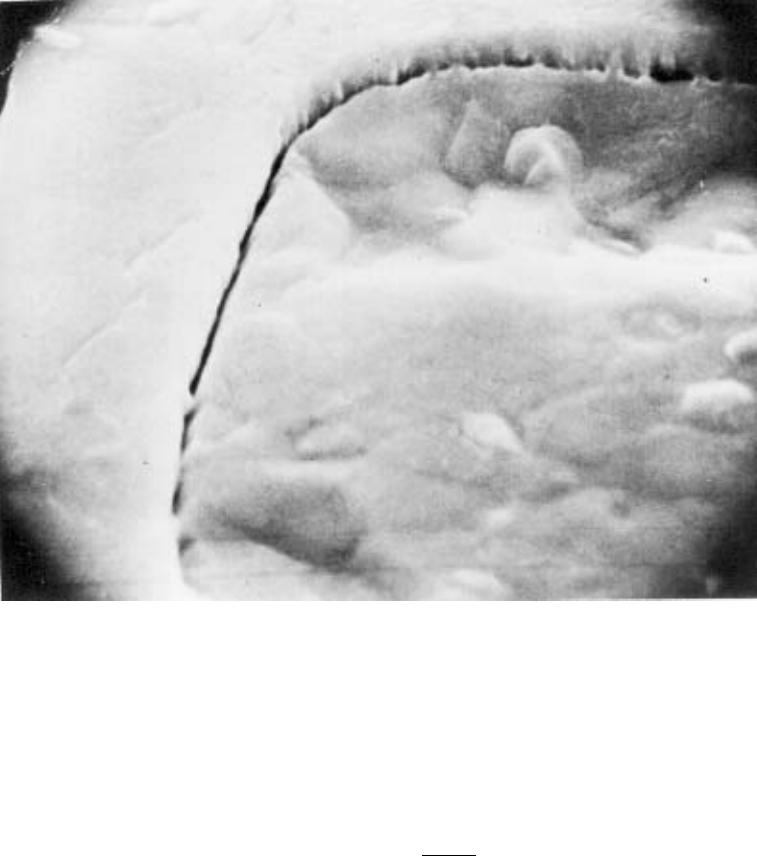

FIGURE 2018-11. 7,000X
.
Separation of metallization at
passivation step (base contact) (reject).
MIL-STD-883F
METHOD 2018.4
18 June 2004
23

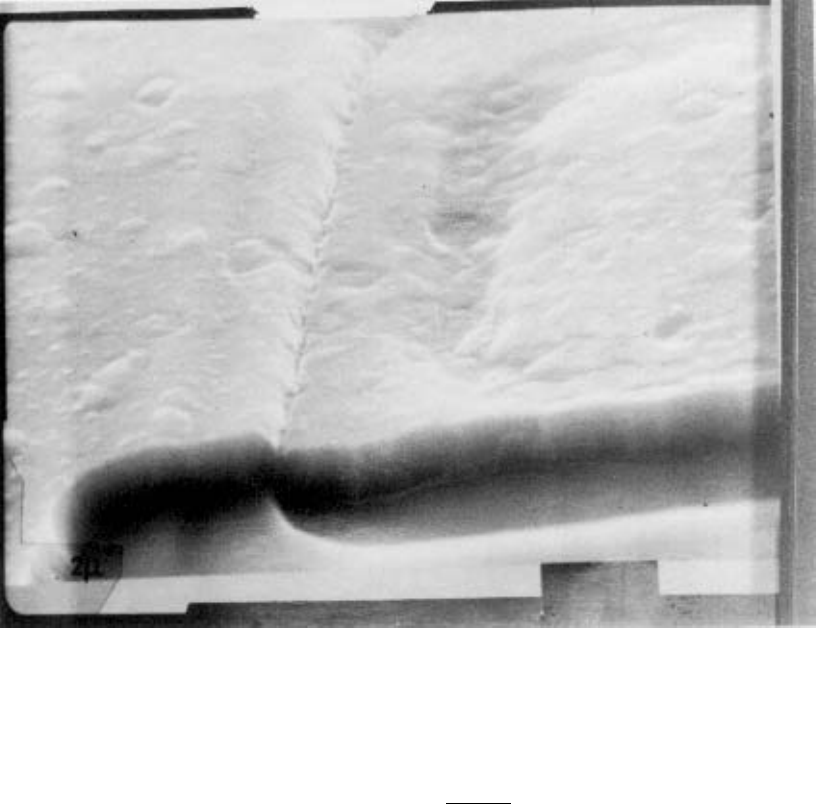

FIGURE 2018-12. (6,000X)
.
Crack-like defect at passivation step (accept).
MIL-STD-883F
METHOD 2018.4
18 June 2004
24

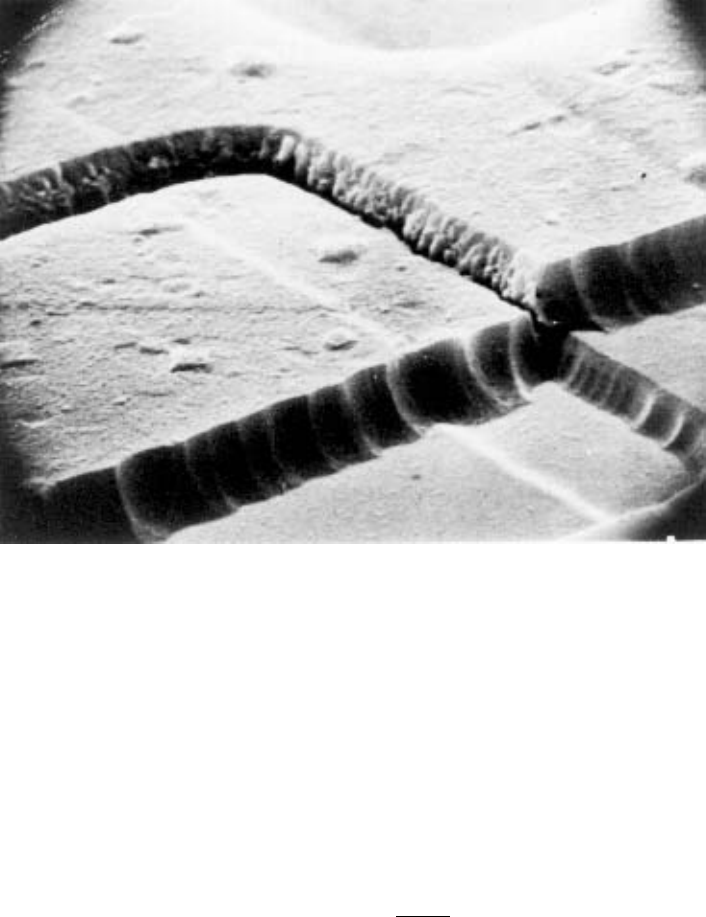

FIGURE 2018-13. 6,000X
.
Crack-like defect at passivation step (reject).
