MIL-STD-883F METHOD 2018.4 18 June 2004 28 FIGURE 2018-17. 9,500X . St eep passi vation s tep (MOS) (rejec t).

100%1 / 708
MIL-STD-883F
METHOD 2018.4
18 June 2004
27
FIGURE 2018-16. (6,000X)
.
Steep passivation step (MOS) (accept).
MIL-STD-883F
METHOD 2018.4
18 June 2004
28

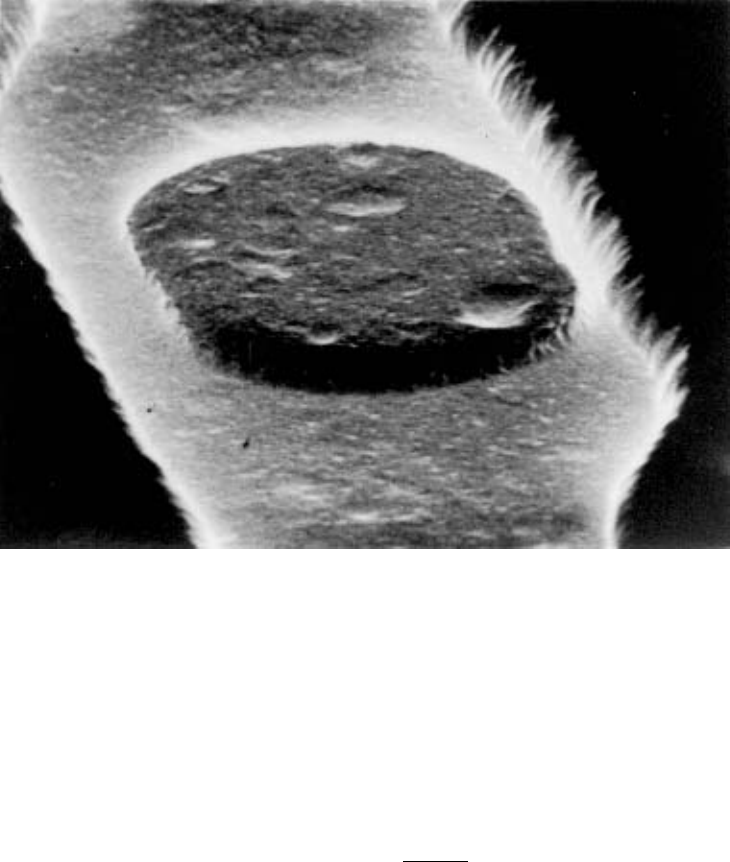

FIGURE 2018-17. 9,500X
.
Steep passivation step (MOS) (reject).
MIL-STD-883F
METHOD 2018.4
18 June 2004
29
FIGURE 2018-18. (5,000X)
.
Peeling or lifting general metallization
in contact window area (reject).
