MIL-STD-883F METHOD 2018.4 18 June 2004 29 FI GURE 2018-18. ( 5,000X) . Peel ing or l ift ing general met alli zation in cont act wi ndow area (r eject) .

100%1 / 708
MIL-STD-883F
METHOD 2018.4
18 June 2004
28

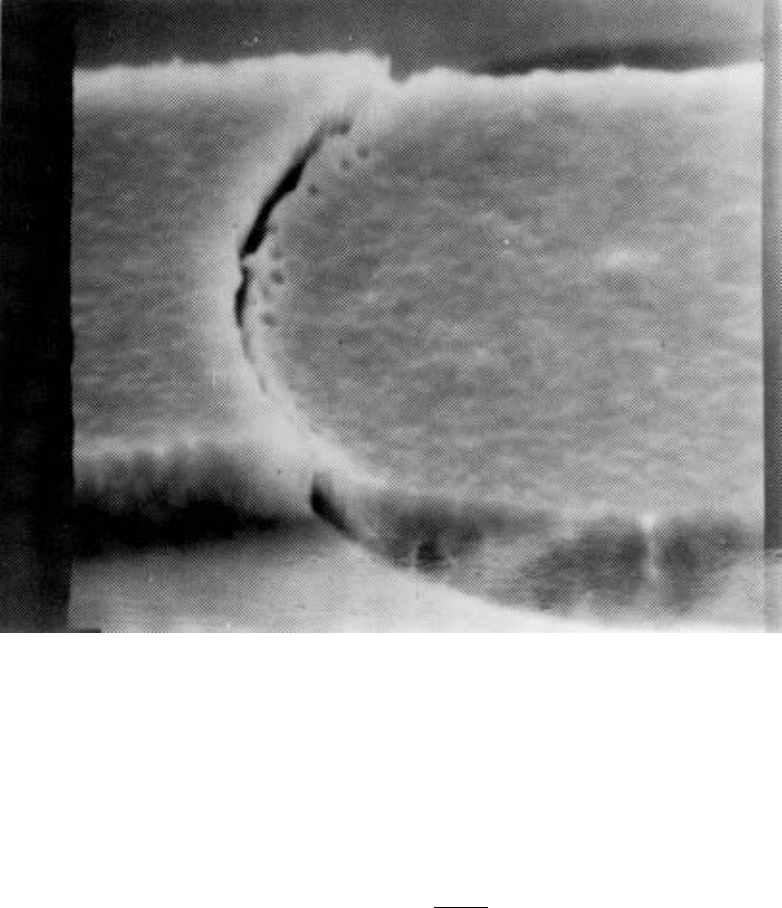

FIGURE 2018-17. 9,500X
.
Steep passivation step (MOS) (reject).
MIL-STD-883F
METHOD 2018.4
18 June 2004
29

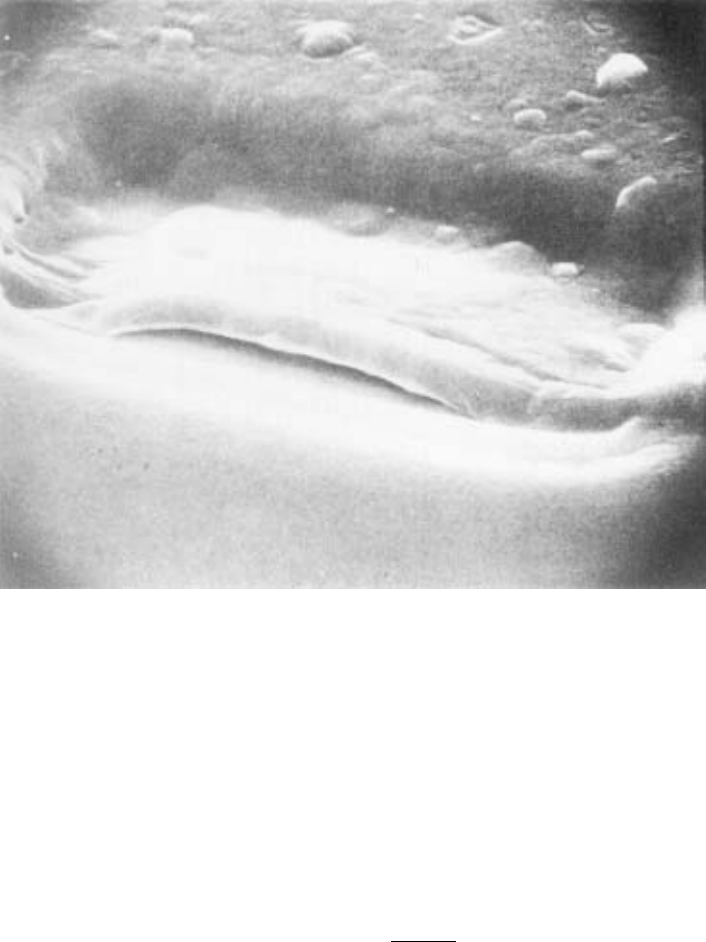

FIGURE 2018-18. (5,000X)
.
Peeling or lifting general metallization
in contact window area (reject).
MIL-STD-883F
METHOD 2018.4
18 June 2004
30

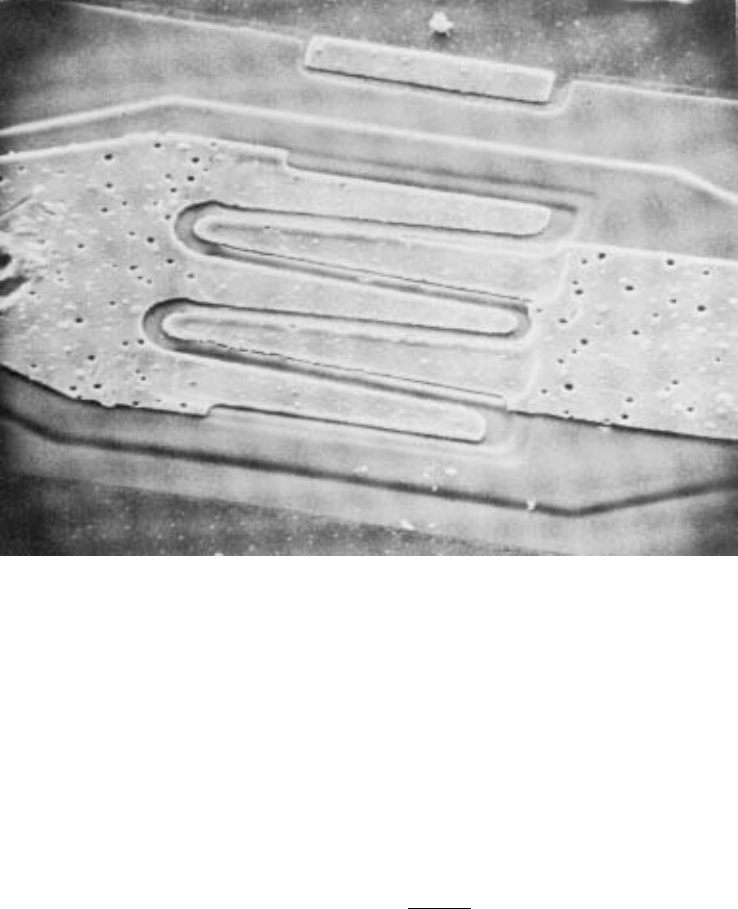

FIGURE 2018-19. 10,000X
.
General metallization voids (accept).
