MIL-STD-883F
METHOD 2018.4
18 June 2004
33

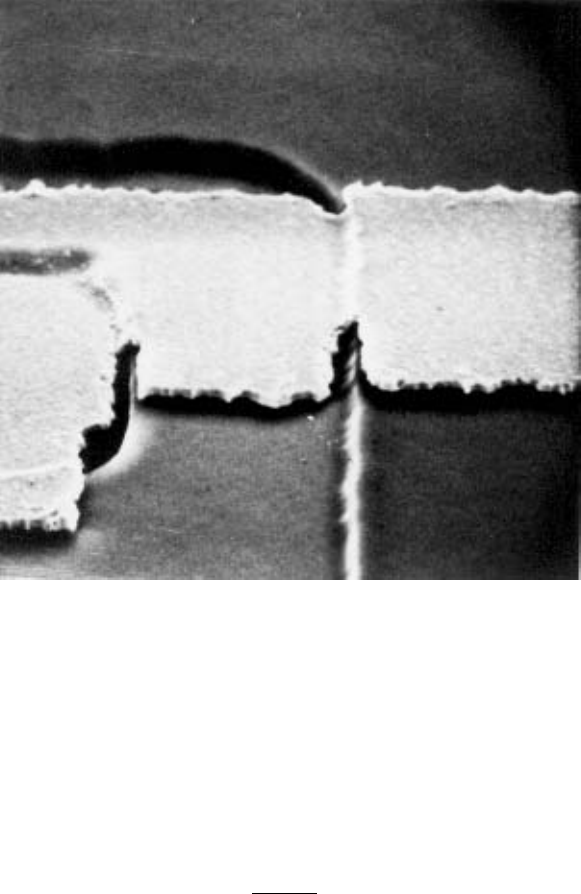

FIGURE 2018-22. (5,000X)
. Barrier or adhesion
layer etch-back/undercut type of notch at
passivation step (multi-layered metal) (accept).
MIL-STD-883F
METHOD 2018.4
18 June 2004
34

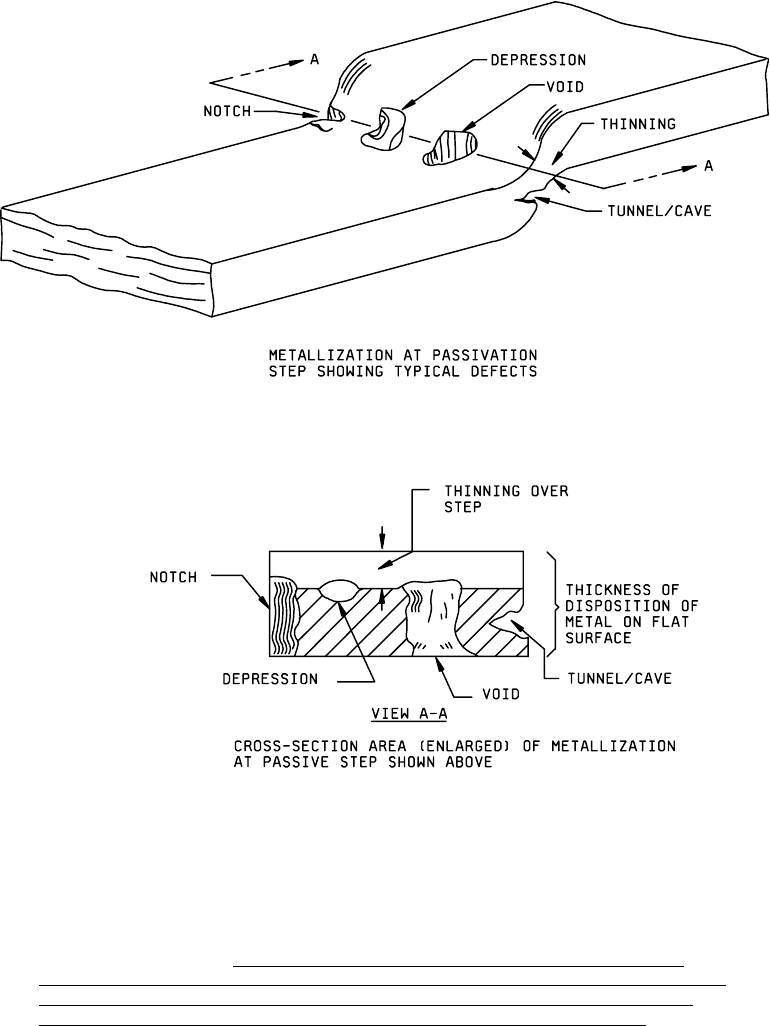

FIGURE 2018-23. Concept of reduction of cross-sectional area of metallization
as accept/reject criteria (any combination of defects and thinning over a step which reduces
the cross-sectional area of the metal to less than the percentage defined within 3.7.2 of
metal cross-sectional area as deposited on the flat surface) is cause for rejection
.
MIL-STD-883F
METHOD 2018.4
18 June 2004
35
Figure 2018.24 20% metallization coverage (barrier metal inclusive)
*
*
*
*
