MIL- STD-883F 2004 TEST METHOD STANDARD MICROCIRCUITS - 第511页
MIL-STD-883F METHOD 3013.1 15 November 1974 7 FIGURE 3013- 3. Noninvert ing logi c gate t ransf er char acter ist ic def ining t est poi nts .
MIL-STD-883F
METHOD 3013.1
15 November 1974
6

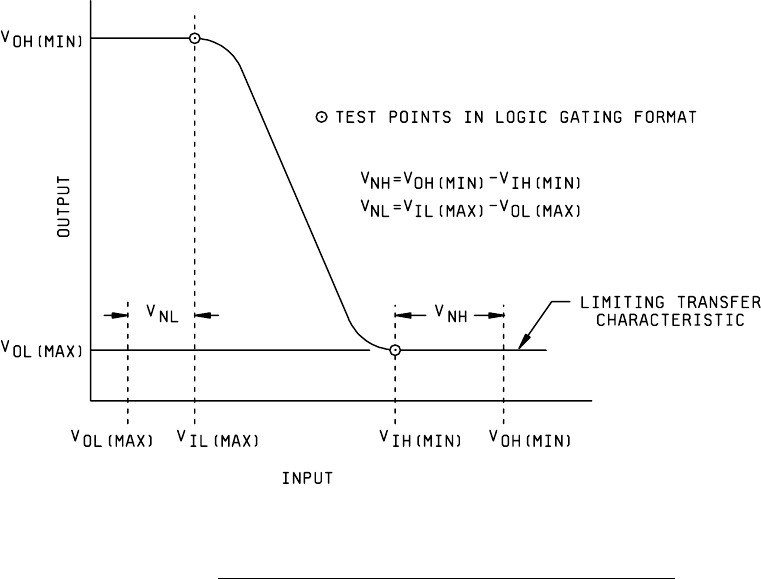

FIGURE 3013-2. Inverting logic gate transfer characteristic defining test points
.
MIL-STD-883F
METHOD 3013.1
15 November 1974
7

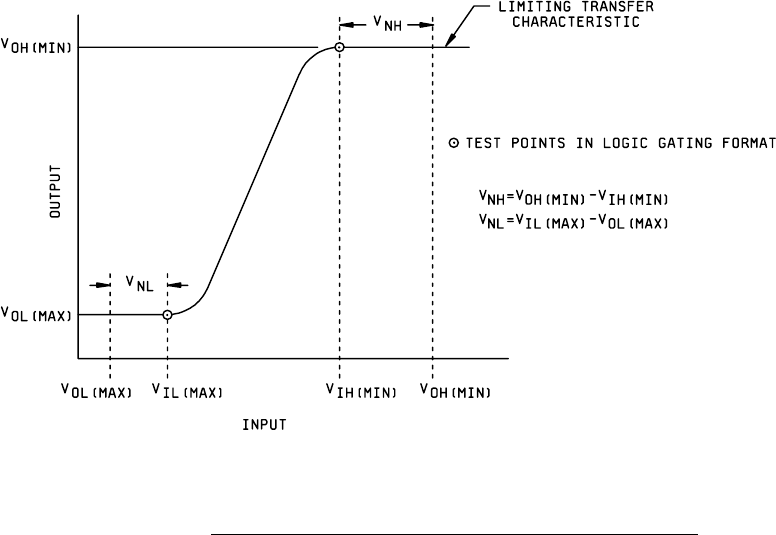

FIGURE 3013-3. Noninverting logic gate transfer characteristic defining test points
.
MIL-STD-883F
METHOD 3013.1
15 November 1974
8
This page intentionally left blank
