MIL-STD-883F
METHOD 4001.1
22 March 1989
3
3.4 Input offset voltage drift. Measurement of V
IO1
is made at temperature T
1
in accordance with 3.1 and a second
measurement at T
2
of V
I02
is made at the second temperature.
IO
IO2 IO1
21
DV
=
V
-
V
T
-
T
3.5 Input offset current drift
. Measurement of I
I01
is made at temperature T
1
and I
I02
at temperature T
2
in accordance with
3.2.
IO
IO2 IO1
21
DI
=
I
-
I
T
-
T
3.6 Adjustment for input offset voltage
. Use the value of E
0
for 3.1.4. Measure E
01
with the offset null voltage (V
ON
) set to
the positive extreme.
IO Adj O 01
1
2
V
(+) = (
E
-
E
)
R
R
Measure E
02
with the offset null voltage (V
ON
) set to the negative extreme:
IO Adj O 02
1
2
V
(-) = (
E
-
E
)
R
R
NOTE: V
ON
may be implemented using a combination of resistors to obtain the proper voltage across the offset null
terminals. This determination shall be based on the device under test (DUT) specifications.
4. SUMMARY
. The following details shall be specified in the applicable acquisition document for specified values of R
1
,
R
2
, and R
3
, R
4
, R
5
, R
L
, and ±V
CC
of the nulling amplifier.
a. V
IO
maximum.
b. DV
IO
maximum at specified temperature(s).
c. I
IO
maximum when applicable.
d. DI
IO
maximum, when applicable at specified temperature(s).
e. I
IB+
and I
IB-
maximum at specified temperature(s).
f. V
QI
and V
QO
, when applicable, at specified temperature(s).
g. ±V
IO Adj
at specified temparature(s).
h. Test temperature(s). Unless otherwise specified, all parameters shall be measured at the minimum and maximum
specified operating temperature and at +25°C ambient.
MIL-STD-883F
METHOD 4001.1
22 March 1989
4
FIGURE 4001-1. Differential input amplifier
.
FIGURE 4001-2. Single ended inverting amplifier
.
MIL-STD-883F
METHOD 4001.1
22 March 1989
5

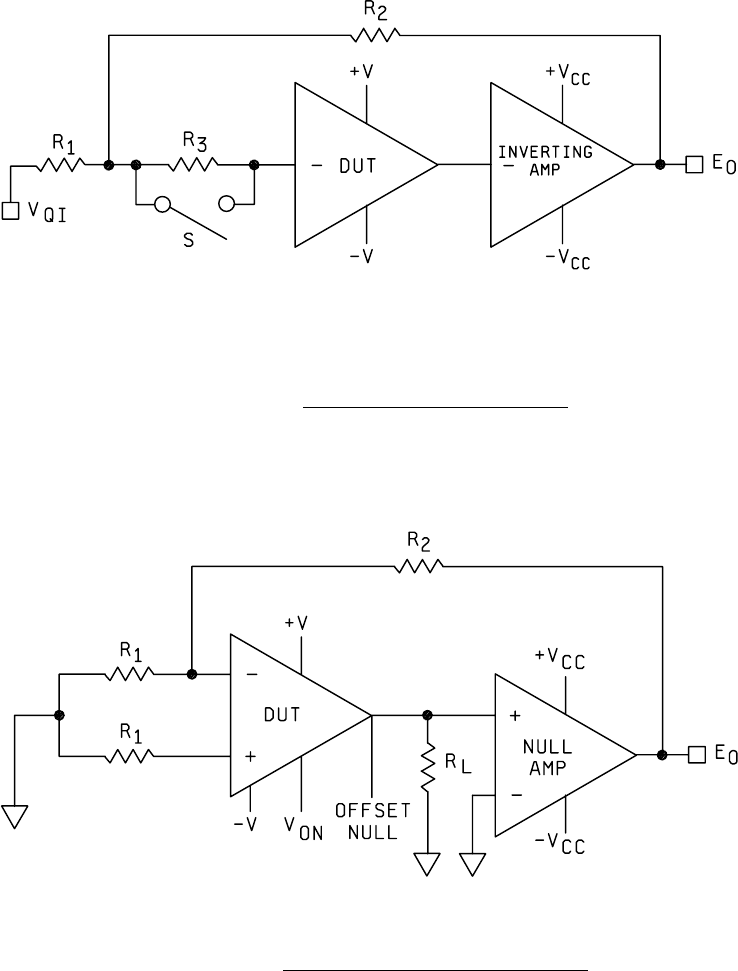

FIGURE 4001-3. Single ended noninverting amplifier
.
FIGURE 4001-4. Differential input amplifier using null loop
.
