MIL- STD-883F 2004 TEST METHOD STANDARD MICROCIRCUITS - 第74页
MIL-STD-883F METHOD 1012.1 4 November 1980 10 FIGURE 1012-1. Temperatur e contr olled heat s ink - Conti nued.
MIL-STD-883F
METHOD 1012.1
4 November 1980
9

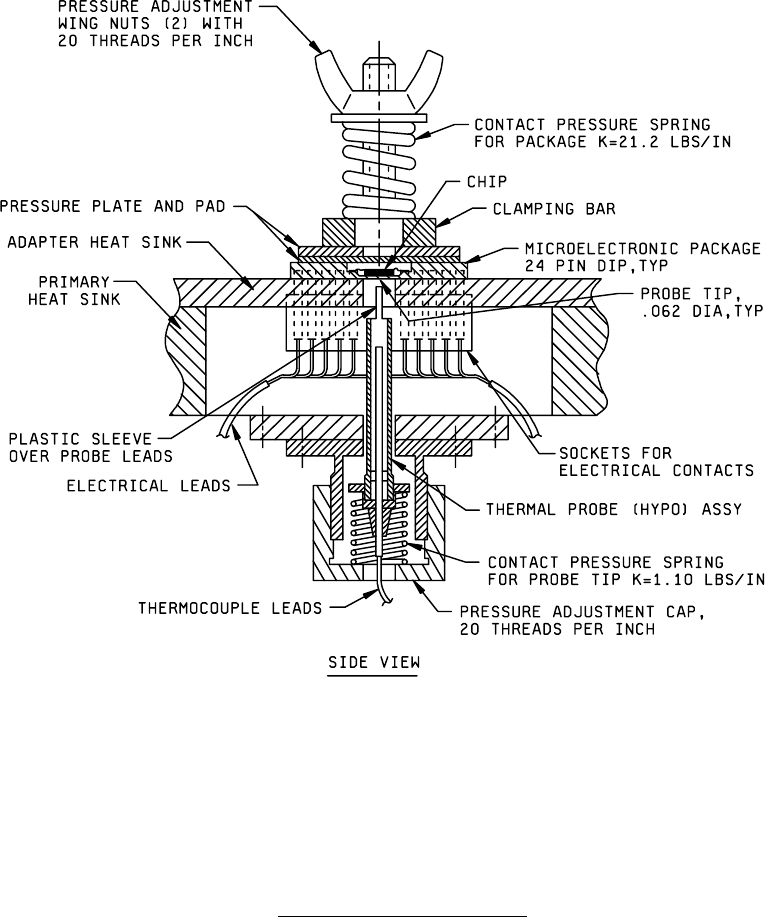

FIGURE 1012-1. Temperature controlled heat sink
.
MIL-STD-883F
METHOD 1012.1
4 November 1980
10
FIGURE 1012-1. Temperature controlled heat sink
- Continued.
MIL-STD-883F
METHOD 1012.1
4 November 1980
11

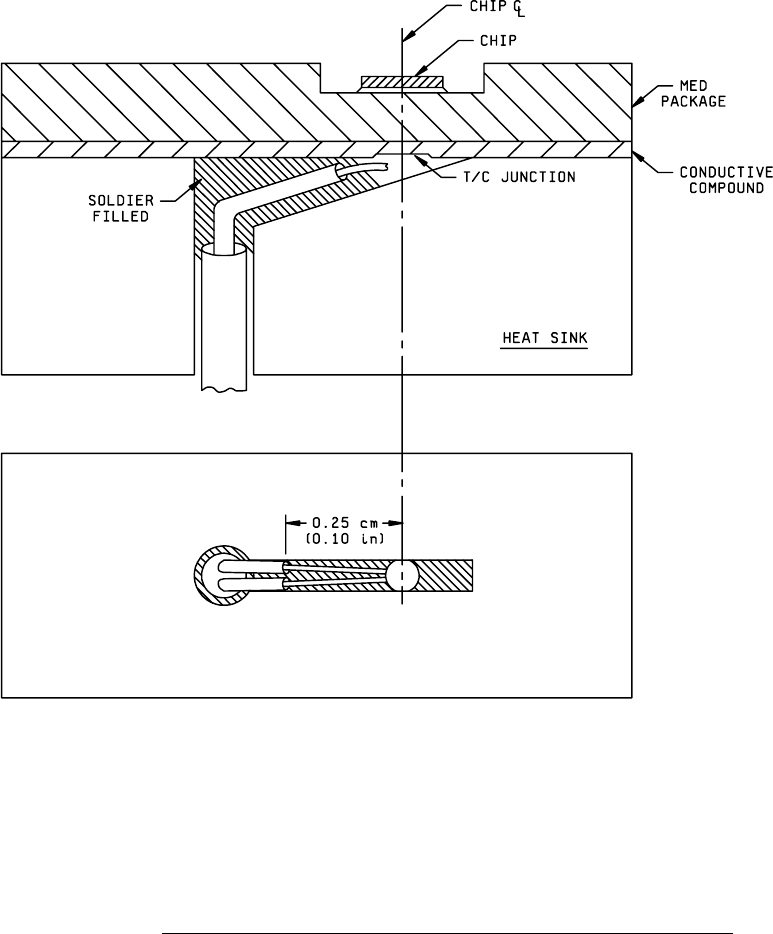

FIGURE 1012-2. Temperature arrangement for mounting surface temperature measurements
.
