Compatibility of sealing material with selected fluids
Substance
VITON
EPDM
NBR
Resistant
materials
Acetone
non resistant
resistant
non resistant
Ammonia
non resistant
non resistant
non resistant
PEEK,
PTFE
Chloroform
resistant
non resistant
non resistant
Cyclohexane
resistant
non resistant
resistant
Cyclohexanol
resistant
non resistant
resistant
Dimethyl
formamide
(DMF)
non resistant
resistant
non resistant
PEEK
Acetic acid
non resistant
non resistant
non resistant
PTFE
Ethanol
non resistant
resistant
resistant
Heptane
resistant
non resistant
resistant
Hexane
resistant
non resistant
resistant
Isopropanol
resistant
resistant
partially
resistant
Methylene
chloride
partially
resistant
non resistant
non resistant
PEEK,
PTFE
Nitromethane
non resistant
partially
resistant
non resistant
PTFE
Pentane
resistant
non resistant
resistant
Mercury
resistant
resistant
resistant
Silicon oil
resistant
resistant
resistant
Toluene
non resistant
non resistant
non resistant
PEEK,
PTFE
Water
no
information
no information
no
information
PEEK,
PTFE
Xylene
resistant
non resistant
non resistant
Table 2 – Chemical compatibility of sealing materials
29
8. TS9800 JET VALVE
8.1 Valve Modules
The TS9800 Series consists of three basic modules:
• Actuator System module (1)
• Fluid Manifold module (2)
• Nozzle Unit module (3)

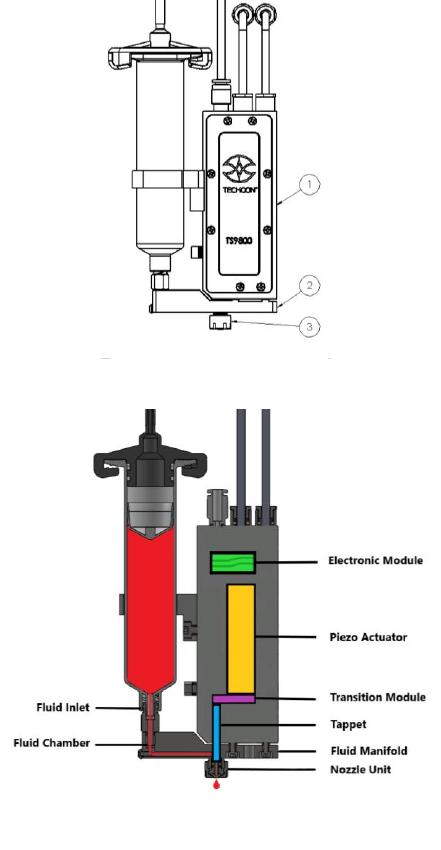

Figure 5: TS9800 Jet Valve
Figure 6: Jet Valve’s internal operation
30
The actuator system is the heart of the Jet Valve. It contains the
electronics for sensor and piezo actuator signals. It also contains the
mechanics for the tappet drive. The housing is encapsulated to avoid
contamination and intrusion of humidity.
Fluid Manifold can be easily removed from the actuator system by
loosening two screws. This allows a stand-alone cleaning process.
Nozzle Unit can be easily changed and cleaned to minimized down
times. The nozzle insert is a consumable item and it can be easily
replaced.
8.2 SPECIFICATIONS OF TS9800 SERIES JET VALVE
8.3 SPECIAL FEATURES
8.3.1 Normally Open
In the non-operative mode, without supply voltage, the valve is
opened. However, this is usually not a problem regarding the
fluid leakage. With the high viscosity fluid, the valve will leak
very slowly or not at all. In order to eliminate the fluid
leakage, the supply pressure to the material syringe must be
disconnected before shutting down the control unit.
8.3.2 Quick-Change Concept
The “Quick-Change” (which consists of nozzle adjustment
nut, nozzle bushing, O-ring seal and nozzle insert) allows a
very fast exchange of the nozzle unit. The electronically
controlled calibration process helps to adjust the nozzle unit
quickly and precisely to the tappet.
Size
4.9” X 2.7” X 0.63” (125mm X 69mm X 16mm)
Weight
258 g
Minimum shot
size
0.5 nl
Fluid pressure
range
1.0 to 100.0 psi (0.07 to 6.8 bars)
Fluid viscosity
range
Wide range
Operating
Frequency
Depending on parameter setting (1-1500 Hz)
Continuous load
dispensing
frequency
50-350 Hz
Response time
1 µs
Operating
temperature
range
10 – 50 °C
Wetted Parts
Stainless Steel, Tungsten Carbide, PTFE, EPDM
