9. TS980 JET VAVLE CONTROLLER
9.1 Description
The TS9800 Jet Valve Controller consists of:
• External universal power supply for all voltages
• Electronically controlled heating regulator
• Microprocessor-based for the TS9800 Jet Valve
• Touch screen display with 272 X 480 RGB resolution
• Various interfaces on the back side
• On/Off switch for voltage supply
9.2 Technical Specifications
Property
Value
Unit / Explanation
Number of parameter
storage spaces
50
49 STD program + a P prog
Colour of display
Yes
White backlighting
Maximum heating
temperature
90
°C
Heating circuits
1
Circuit I: fluidic module
heating
Interfaces
11
DC power plug (24 VDC)
9 pin Sub-D EIA-232 (RS-
232C)
15 pin Sub-D PLC (SPS)
3 x multi pin sockets
1 x USB port
1 x Ethernet port
1 x Micro SD card port
1 x On/Off switch
Operating temperature
range
10 to 50
°C
Housing colour
Black
Ventilation concept
Convection airing
Internal cooling fan
Line voltage
100 - 240
VAC
Line frequency
50 / 60
Hz
Controller maximum
power consumption
221
Watt
Weight
2110
gram
Dimensions
Width 137 mm, Height 126 mm, Depth 181 mm
(w. o. cables)
33

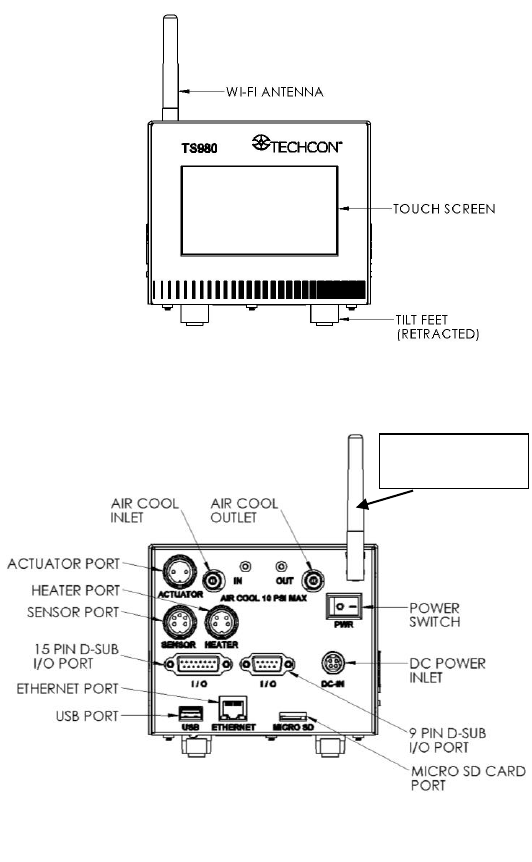

9.3 Features
Figure 8: Rear face of the Jet Valve Controller
Figure 7: Front Face of the Jet Valve Controller
Wi-Fi Antenna
(Not Available)
34

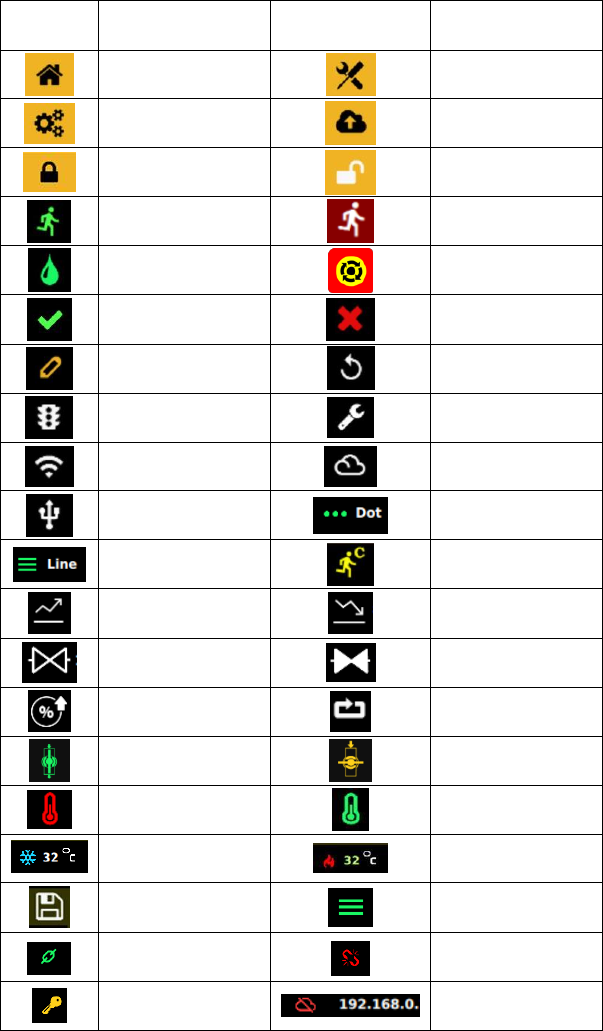

9.4 Symbol Definitions
Symbol
Description
Symbol
Description
Home Screen
Calibration
Settings
IoT
Login (Lock)
Logout (Unlock)
Run (Start)
System Inhibit
Purge (Press & Hold)
E-Stop
Accept
Cancel
Change Password
Counter Reset
Run Method
Service Mode
Wi-Fi Setting
(Not Available)
Remote Server
USB Application
Update
Dot Mode
Line Mode
Continuous Cycle
(Repeat Mode)
Rise Time
Fall Time
Open Time
Delay Time
Percentage Lift
Pulse
Valve Open
Valve Close (Closed
when system is ON)
Heater Off
Heater On
Heater is Idling/Off
Heater is On and
Heating Up
Save
Line Mode
(External Trigger)
Password Lock
Password Unlock
Master Password
Reset
IP Address for
Ethernet Connection
