This example uses a set of six concentric circles in which dots of white fluid are dispensed in the center of larger
black circles. A Positional Checking program is created to verify the accuracy of dot placement in relation to the
larger black circles.
Positional Checking allows the camera to determine the X and Y offset of a dispensed circle from a given or defined
location. The Step & Repeat Block command causes a window to open that shows the pass / fail status of each
dispensed dot: Green for dots that pass and red for dots that fail. The camera also takes a screen capture of each
dot and saves the image; the images provide dispense details, including diameter and XY offset.
PREREQUISITES
The system is set up to save images. Refer to “Setting Up the System to Save Images” on page9 as needed.
To learn how to use this feature, create a workpiece template with defined, circular dispense locations, similar to
the one shown below.
To Create a Circle Center Mark Image
# Click Step Reference Image
1
> >
• Under System Setup > Other, ensure
that the SAVE IMAGE checkbox is
selected.
2 • Click CAMERA to go to the camera
screen.
• Position the workpiece template on the
fixture plate and bring the circle you
want to use for the mark into view.
NOTE: Nordson EFD recommends
using the top-left dot, but any dot will
work.
Continued on next page
Positional Checking Example (continued)
Using the Arrow Types (continued)
OptiSure Automated Optical Inspection
29www.nordsonefd.com info@nordsonefd.com +1-401-431-7000 Sales and service of Nordson EFD dispensing systems are available worldwide.
Using the Arrow Types (continued)
# Click Step Reference Image
3
>
>
• Jog the camera to center the
crosshairs over one of the circles.
• Click SET MARK, then drag to position
the red box around a circle.
4
>
• Click a socket in the Mark Library to
save the mark, then click TEMPLATE
when the Template Match window
appears.
The system saves the image in the
Mark Library (no. 81 in this example).
5
• Click the ARROW icon.
6 • In the Primary View screen, right-click
and select ADD NEW ARROW.
The system adds an arrow to the
screen.
Continued on next page
Positional Checking Example (continued)
To Create a Circle Center Mark Image (continued)
OptiSure Automated Optical Inspection
30 www.nordsonefd.com info@nordsonefd.com +1-401-431-7000 Sales and service of Nordson EFD dispensing systems are available worldwide.
Using the Arrow Types (continued)
Positional Checking Example (continued)
To Create a Circle Center Mark Image (continued)

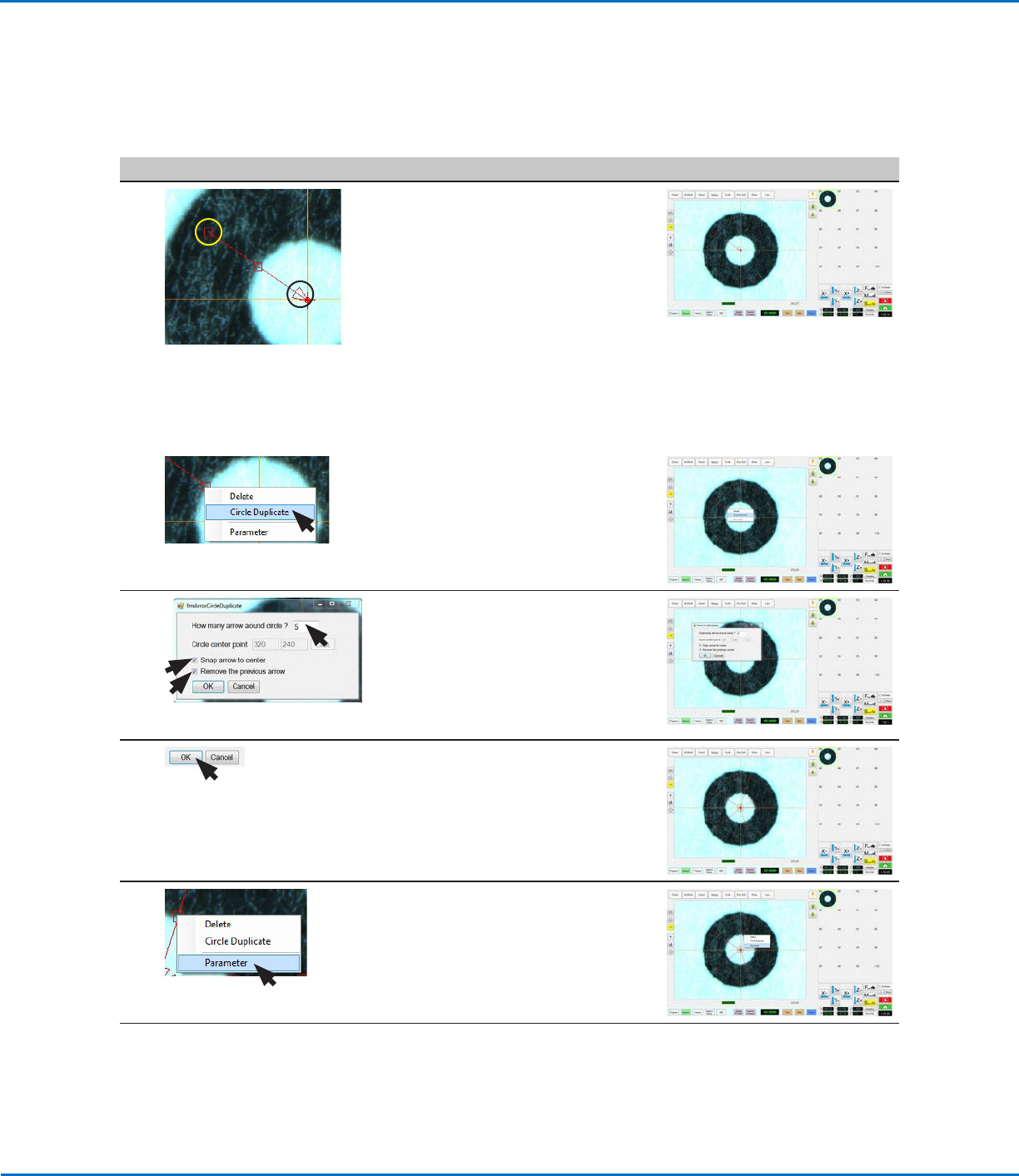

# Click Step Reference Image
7
3.
2.
1.
• Drag the triangle of the arrow (item 3)
close to the center of the circle.
• Drag the upper box of the arrow
(item1) such that the middle box
(item 2) is located on the outer
circumference of the circle.
NOTES:
- To move the entire arrow, click and
drag the middle box (item 2).
- To elongate or shorten the arrow,
click and drag the triangle (item 3) or
the upper box (item 1).
8
4.
• Right-click on a box on the
arrow (item4) and select CIRCLE
DUPLICATE.
The Arrow Circle Duplicate window
opens.
9 • Enter 5 for the number of arrows
around the circle.
• Select the SNAP ARROW TO CENTER
checkbox (checked by default).
• Select the REMOVE THE PREVIOUS
ARROW checkbox (checked by
default).
10 • Click OK.
Five arrows appear on the image.
11 • Right-click on any middle box of an
arrow and then select PARAMETER.
The AOI Arrow window opens.
Continued on next page
