OptiSure Automated Optical Inspection 67 www.nordsonefd.com info@nordsonefd.com +1-401-431-7000 Sales and service of Nordson EFD dispensing systems are available worldwide. T o Check Laser Measur ements Against Threshold…

OptiSure Automated Optical Inspection

66 www.nordsonefd.com info@nordsonefd.com +1-401-431-7000 Sales and service of Nordson EFD dispensing systems are available worldwide.

Using the Laser to Measure and Record Profiles

(continued)

To Measure and Record the Profile of a Fluid or a Workpiece (continued)

# Click Step Reference Image

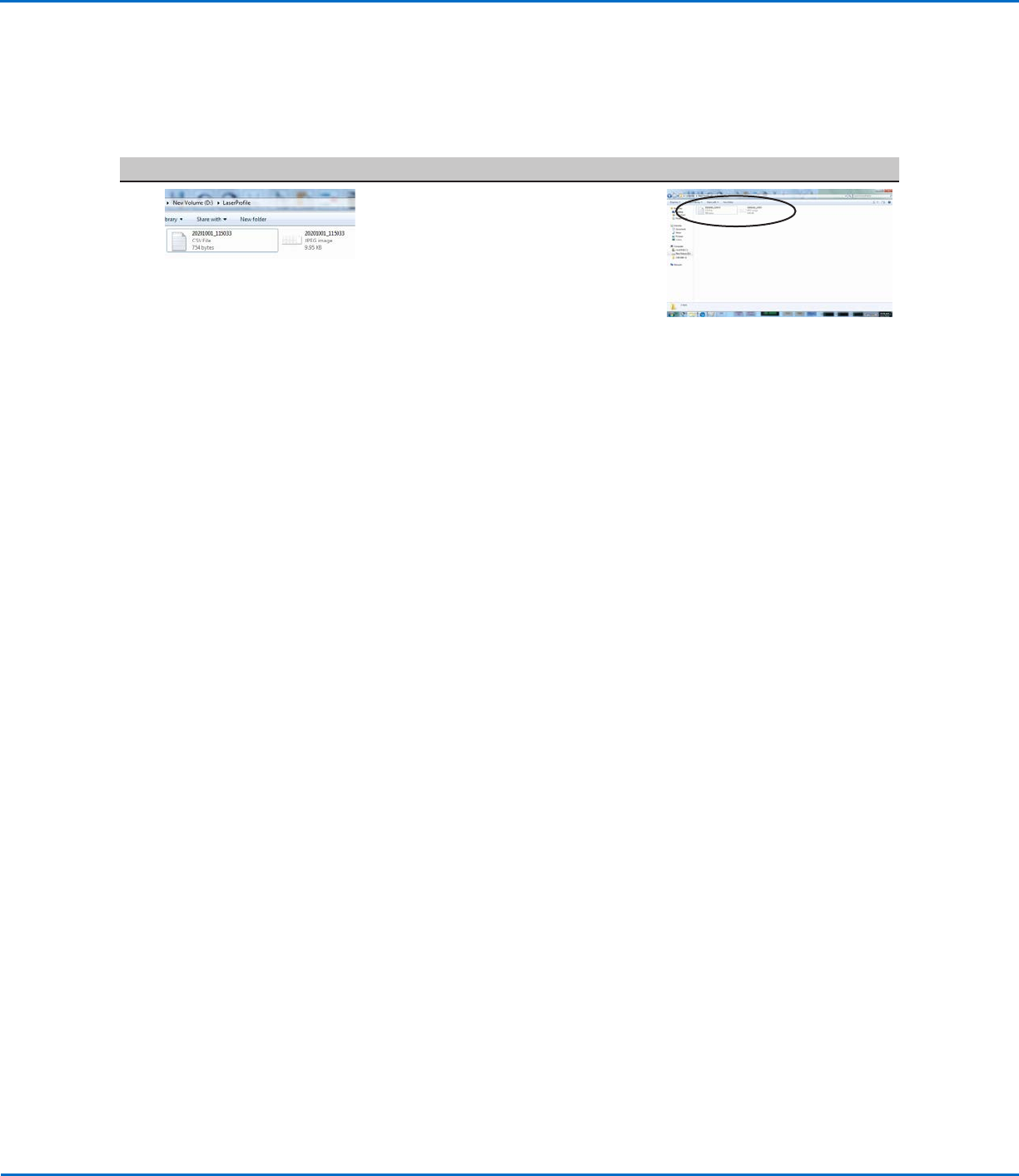

• Go to D:\Laser Proﬁle to see

the saved graph and data point

(measurement data) ﬁles. Graphs and

data points are saved automatically

after every run cycle.

NOTES:

• All *.CSV and *.JPEG ﬁles are named with the date and time using the

following format:

- YYYYMMDD_HrMinSecs.CSV

- YYYYMMDD_HrMinSecs.JPEG

• Every subsequent laser program will have an underscore and a number.

For example:

YYYYMMDD_HrMinSecs_1.CSV, YYYYMMDD_HrMinSecs_1.JPEG

YYYYMMDD_HrMinSecs_2.CSV, YYYYMMDD_HrMinSecs_2.JPEG

OptiSure Automated Optical Inspection

67www.nordsonefd.com info@nordsonefd.com +1-401-431-7000 Sales and service of Nordson EFD dispensing systems are available worldwide.

To Check Laser Measurements Against Threshold Values

When the laser is measuring and recording, you can use the Laser Proﬁle window to specify Max and Min threshold

(tolerance) values and to select the alert option to appear when a measurement is outside of the speciﬁed Max and /

or Min thresholds.

# Click Step Reference Image

• Ensure that the following values are

properly set:

- Y MAX and Y MIN: The maximum

and minimum values for the vertical

axes (in mm).

- X SIZE: The number of laser

readings to show in the graph (the

minimum is 101).

Continued on next page

Using the Laser to Measure and Record Profiles

(continued)

Play or pause

the graph

Graph

Sets the

maximum and

minimum values

for the vertical

axes (in mm)

Shows the record

number associated with

the laser program that

is running (for example,

if the robot dispense

program speciﬁes

laser programs 1 and

2 (in that order), then

Record 0 is tied to

laser program 1 and

Record 1 is tied to laser

program 2)

Sets maximum and

minimum threshold

(tolerance) values for the

measurement results and,

if enabled by checking Max

and / or Min, speciﬁes the

desired system response

(Skip, Stop, or Pause)

when a measured value is

out of range. Refer to “To

Check Laser Measurements

Against Threshold Values”

on page67 for details.

Sets the number of

laser readings to

show in the graph

(minimum is 101)

Laser Profile Window Fields

If Skip Error Value is

checked, then the

graph excludes any

measurements outside of

Y Max and Y Min

XSize value (200, in this

example)

Shows the number of laser

readings that will be in the

*.CSV ﬁle. For example, if

recording is stopped at 60,

then there will be 60 laser

readings inside the *.CSV

ﬁle.

NOTE: Recording can continue

past the X Size. For example, if

the X Size is set to 200, but you

have 300 laser readings, only the

ﬁrst 200 readings are shown on

the graph. You can change the

X Size value during or after laser

measurement.

OptiSure Automated Optical Inspection

68 www.nordsonefd.com info@nordsonefd.com +1-401-431-7000 Sales and service of Nordson EFD dispensing systems are available worldwide.

# Click Step Reference Image

• Enter values for MAX and MIN.

These are the values the laser will use

to determine whether a measurement

is within the desired threshold.

3 • Select the alert option you want

to receive when a measurement is

outside the speciﬁed Max and Min

values. Refer to “System Responses

for Laser Threshold Measurement

Checks” on page69 for an

explanation of each.

4 • Enable the threshold check by

selecting the Max and / or Min

checkboxes.

When a Max and / or Min threshold

check is enabled, the system adds

blue and red threshold lines to

the graph and immediately begins

checking laser measurements against

the entered Max and Min values:

- If a measurement is within the Max

and Min values, the measurement

PASSES regardless of the selected

alert. No action is required.

- If a measurement is not within the

Max and Min values, the system

takes the action speciﬁed by the

selected alert option. Refer to

“System Responses for Laser

Threshold Measurement Checks”

on page69 for the user action to

take.

Using the Laser to Measure and Record Profiles

(continued)

To Check Laser Measurements Against Threshold Values (continued)
