KGT_9_3
3 9 Side Clamp Pos.Assy Conveyor Unit KGT -081 105 12 1 1 10 25 22 24 26 9 9 21 8 7 15 19 19 6 13 22 14 13 22 14 17 23 23 16 17 9 17 23 16 17 17 16 17 18 21 21 21 5 4 20 20 3 5 3 2 20 20 1 Fig C 27 10 1 Fig A 1 Fig B 2 8…
3
9

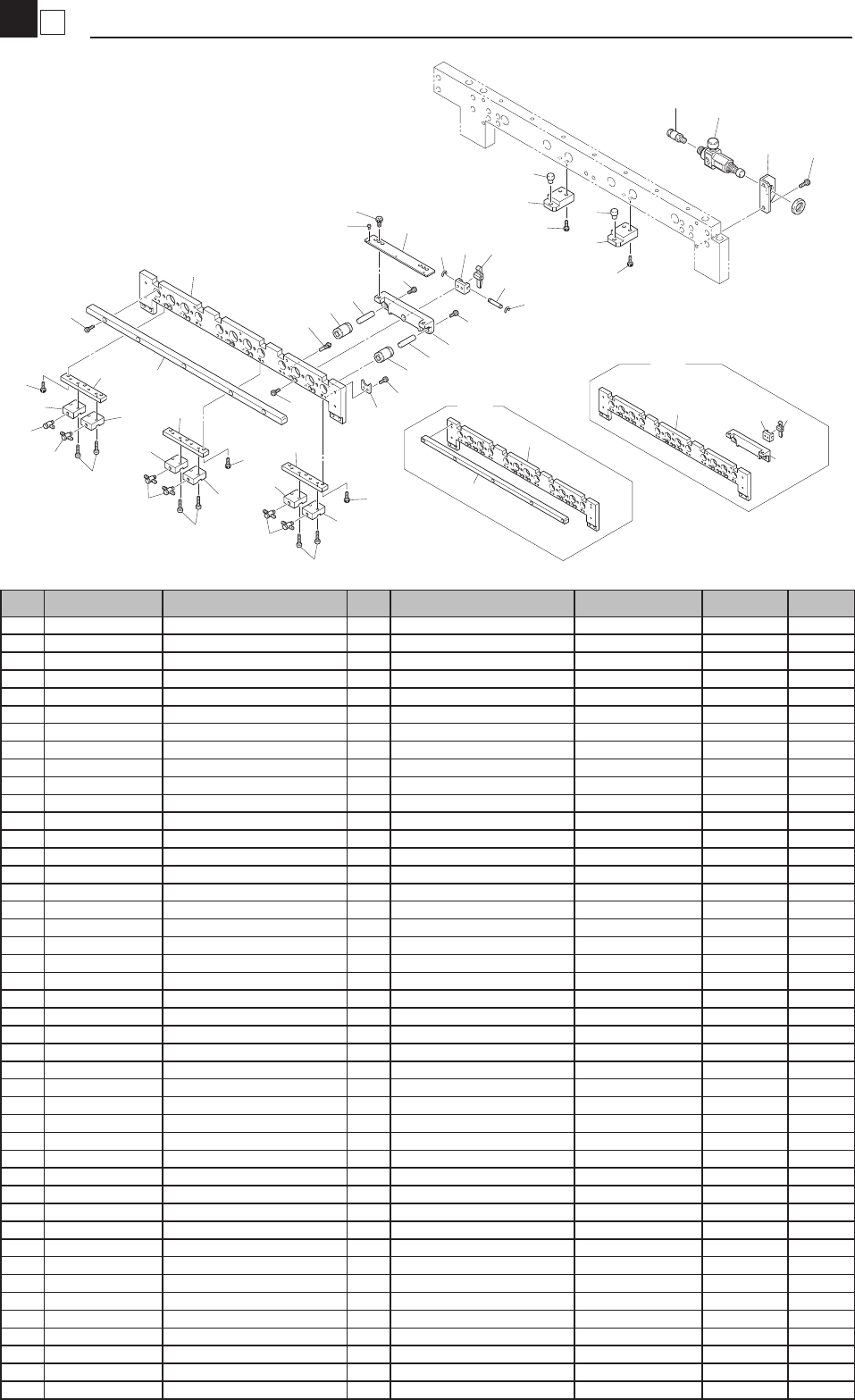

Side Clamp Pos.Assy
Conveyor Unit
KGT-081105
12
11
10
25
22
24
26
9
9
21
8
7
15
19
19
6
13
22
14
13
22
14
17
23
23
16
17
9
17
23
16
17
17
16
17
18
21
21
21
5
4
20
20
3
5
3
2
20
20
1 Fig C
27
10
1 Fig A
1 Fig B
2
8
7
OLD
OLD
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KGT-M9221-00X PLATE 1 Fig A
1-1 KGT-M9221-01X PLATE 1 Fig B 2004/5/18 M410030 NG
1-2 KGT-M9221-02X PLATE 1 Fig C 2004/6/24 M420075 NG
2 KGT-M9222-00X PLATE 1,CLAMP 3
2-1
KGT-M9222-01X PLATE1,CLAMP
3
2004/6/24
M420075 NG
3 KGT-M9223-00X LINER BUSHING 6
4 KGT-M9224-00X STOPPER, BUSHING 6
5 KGT-M9225-00X SHAFT 1 6
6 KGT-M9226-00X SPRING PLUNGER 9
6-1
KGT-M9226-00X SPRING PLUNGER
6
(2004/2/12)
M420075 OK
7 KGT-M9227-00X BASE 1,CLAMP 6
7-1 KGT-M9227-01X BASE1,CLAMP 6 2004/6/24 M420075 NG
8 KGT-M9228-00X HEAD,CLAMP 6
8-1 KGT-M9228-01X HEAD,CLAMP 6 2004/6/24 M420075 NG
9 KGT-M9229-00X HOLDER, CYLINDER 3
10 KGT-M922A-00X KEY 1
10-1 KGT-M915L-01X KEY 1 2004/5/18 M410030 NG
11 KGT-M922B-00X GUIDE,PCB 3
11-1 KGT-M922B-01X GUIDE,PCB 3 (2005/3/7) MB30028 OK
12
KGT-M922C-00X LOW HEAD CAP SCREW 6
12-1 90990-01J017 BOLT,HEX.SOCKET HEAD 6 (2007/10/29) MD00030 OK
13 KGT-M922D-00X BASE , STOPPER 2
14 KGT-M922E-00X STOPPER 2
15 KGT-M922F-00X SHAFT 2 6
16 KGT-M922G-00X JOINT 5
16-1 $UTF4BU-M3 JOINT 5 (2007/9/14) MD80065 OK
17 KGD-M9244-00X CYLINDER 6
18 $UEF4BU-M3 JOINT 1
19 90440-01J030 CIRCLIP 12
20 91317-03006 BOLT HEX. SOCKET HEAD 34
21 91317-03010 BOLT HEX. SOCKET HEAD 14
22 91317-04010 BOLT HEX.SOCKET HEAD 6
22-1 91317-04010 BOLT HEX.SOCKET HEAD 9 (2004/2/12) M420075 OK
23 98980-03012 SCREW BINDING HEAD 12
23-1 98904-03012 SCREW BINDING HEAD 12 (2005/12/12) MBY0041 OK
23-2 98902-03012 SCREW BINDING HEAD 12 (2006/1/9) MBY0166 OK
24 KGT-M922H-00X REGULATOR 1
25 KGT-M922J-00X BRACKET,REGULATOR 1
25-1 KGT-M922J-01X BRACKET,REGULATOR 1 (2005/9/10) MB90045 OK
26 $TS4-M5 JOINT 1
26-1 $TSH4-M5 JOINT 1 (2006/4/24) MC40056 OK
27 KGT-M916W-00X PIN 9
27-1 KGT-M916W-01X PIN 9 (2005/6/20) MB60092 OK
27-2 90990-43J014 PIN 9 (2008/6/3) ME30136 OK
