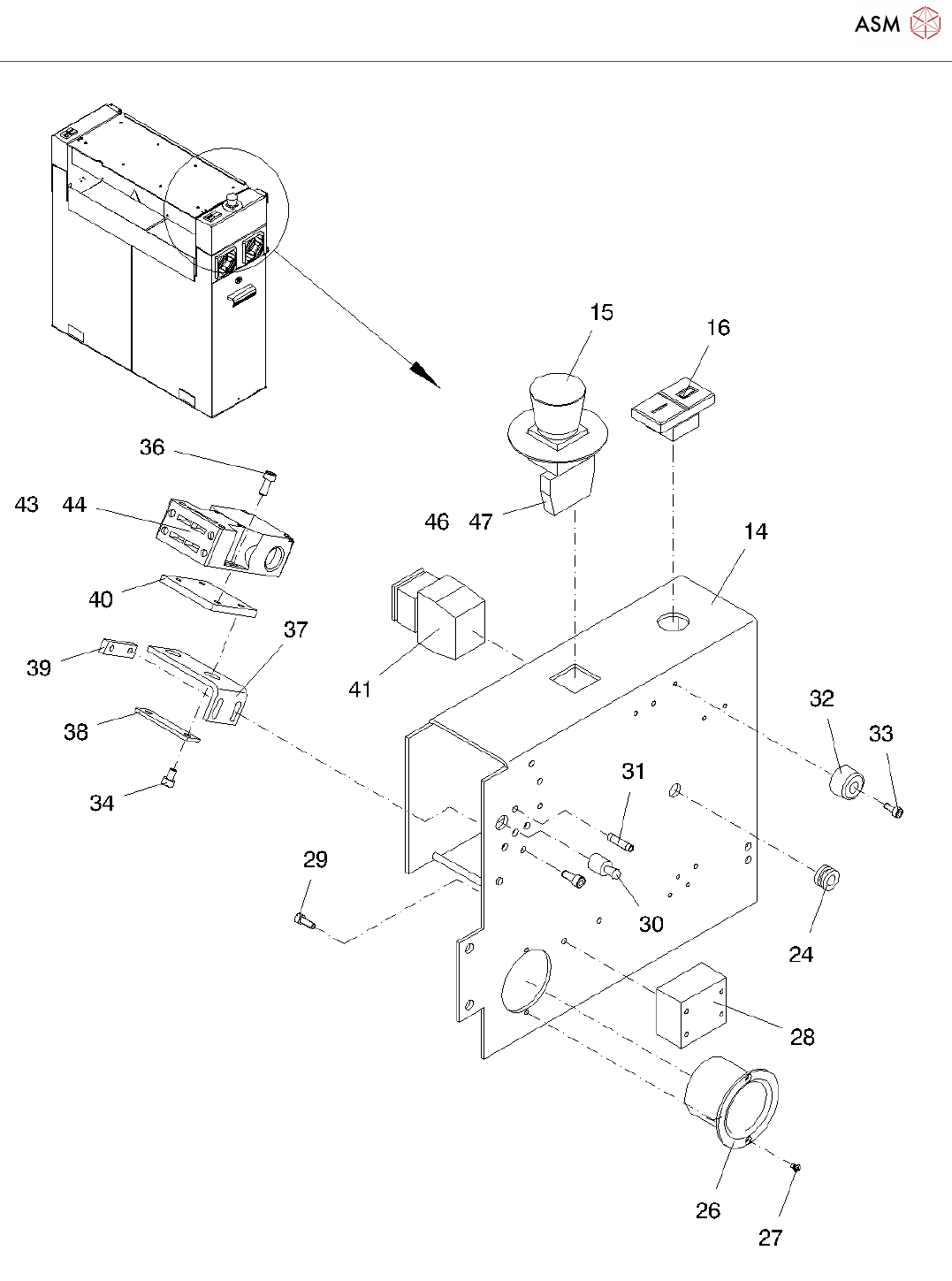

Pos. Item no. Description Part marking
1 03020837-01 INPUT/OUTPUT SIDE R COMPL.
3 03006337-02 BOTTOM PART INPUT/OUTPUT SIDE
MECHANICS
4 03031353-01 BASIC HOUSING LEFT SIDE
COMPLETE
5 03031352-01 BASIC HOUSING RIGHT SIDE
COMPLETE
6 03014280-01 GROUND STRAND 2.5QMM 2XKR
M5 L=0.7M
9 03003425-02 FILTER UNIT SPARE PART
10 03006574-01 FELT FILTER RFF-92-10
11 03022013-02 PROTECTION X-SERIES DOOR EMC-
TIGHT
12 03020838-04 UPPER PART INPUT/OUTPUT SIDE R
MECHANICS
13 03020840-04 CONSOLE PLATE R, LEFT SPARE PART
14 03020841-02 CONSOLE PLATE R, RIGHT SPARE PART
15 00334073-01 MUSHROOM PUSHBUTTON 3SB3
RED 40MM
SPARE PART
16 00349458-01 ON-OFF PUSHBUTTON 3SB3
WT(I)/BL(0)
SPARE PART
18 03003393-01 SUPPORTING RAIL
19 00201148S01 SEALING RING M5 PVC HARD WEAR PART
24 03004614-01 GROMMET D=11 D=15.9
26 03003498-01 COVER INPUT/OUTPUT SIDE
27 00328131-01 COUNTER-SUNK HEAD SCREW M3 X
5-A2
28 03003501-02 ADAPTER FOR HEXAGON SHAFT
PCB TRANSPORT
29 00845026-01 HEXAGON SOCKET HEAD CAP
SCREW M4 X 12-8.8
30 00332543-01 ELASTIC THRUST PIECE LATERAL
D=12
SPARE PART
31 00365696-01 PARALLEL PIN 5 M6 X 20-ST
32 00304188-01 MOUNTING FOOT 22*4,3*14 STANDARD PARTS
33 00845025-01 HEXAGON SOCKET HEAD CAP
SCREW M4 X 10-8.8
34 00095032-01 HEXAGON SOCKET HEAD CAP
SCREW M5 X 8-8.8
36 00095034-01 HEXAGON SOCKET HEAD CAP
