User manual SIPLACE X-Series 3 Technical data and assemblies From software version 710.0 Edition 12/2016 3.8 X feeder modules for SIPLACE X-Series 191 3 3 Fig. 3.8 - 10 Using waffle pack tray holder on component trolley …
3 Technical data and assemblies User manual SIPLACE X-Series
3.8 X feeder modules for SIPLACE X-Series From software version 710.0 Edition 12/2016
190
3.8.6.1 Technical data
3
3.8.6.2 Number of waffle pack trays per location and machine
3.8.6.3 Inserting tray holder on the X-Series component trolley
Place the two front slider guides (item 1 in fig. 3.8 - 10, page 191) for the holder onto the in-
sertion aid (item 6 in fig. 3.8 - 10, page 191 ).
Push the holder along the guide profiles (item 7 in fig. 3.8 - 10, page 191), towards the front.
The holder slides with the front (item 1) and back slide guides (item 2 in fig. 3.8 - 10, page
191) on the guide profiles.
Continue pushing the holder, until the two centering pins "front" (item 4 in fig. 3.8 - 10, page
191) disappear into the centering holes (item 10 in fig. 3.8 - 10, page 191).
Check the two "back" centering pins (item 3 in fig. 3.8 - 10, page 191) for the holder. They
should slide easily into the recesses (item 8 in fig. 3.8 - 10, page 191) of the centering rail.
At the end stop of the holder, the locking latches (item 9 in fig. 3.8 - 10, page 191) engage
with the locking rollers (item 5) of the holder.
The waffle pack tray holder can be locked and released via the user interface. You can therefore
easily change the holder without interruption to machine operation.
Dimensions L x W x H 429 mm x 376 mm x 200 mm
Location occupied on the changeover table 32 locations
*a
*)a X feeder modules can be placed on the remaining 8 locations. When using locking bars/mounting rails, the
locations available are reduced to 6, due to the fixation lever which protrudes at the side.
Positioning options on X-Series placement ma-
chines
Locations 2 and/or 4
Placement head range TwinStar, CPP
*b
*)b Only permitted in high assembly position (CPP_H).
PLEASE NOTE
Further information
The maximum component height for the waffle pack tray holder depends on the maxi-
mum component height for the placement head used. When using waffle pack trays,
bear in mind that the components may not higher than the pickup height of a standard
feeder.
Placement machine Location 2 Location 4
X4 S 1 1
X3 S 2 1
X2 S 2 2
User manual SIPLACE X-Series 3 Technical data and assemblies
From software version 710.0 Edition 12/2016 3.8 X feeder modules for SIPLACE X-Series
191
3
3

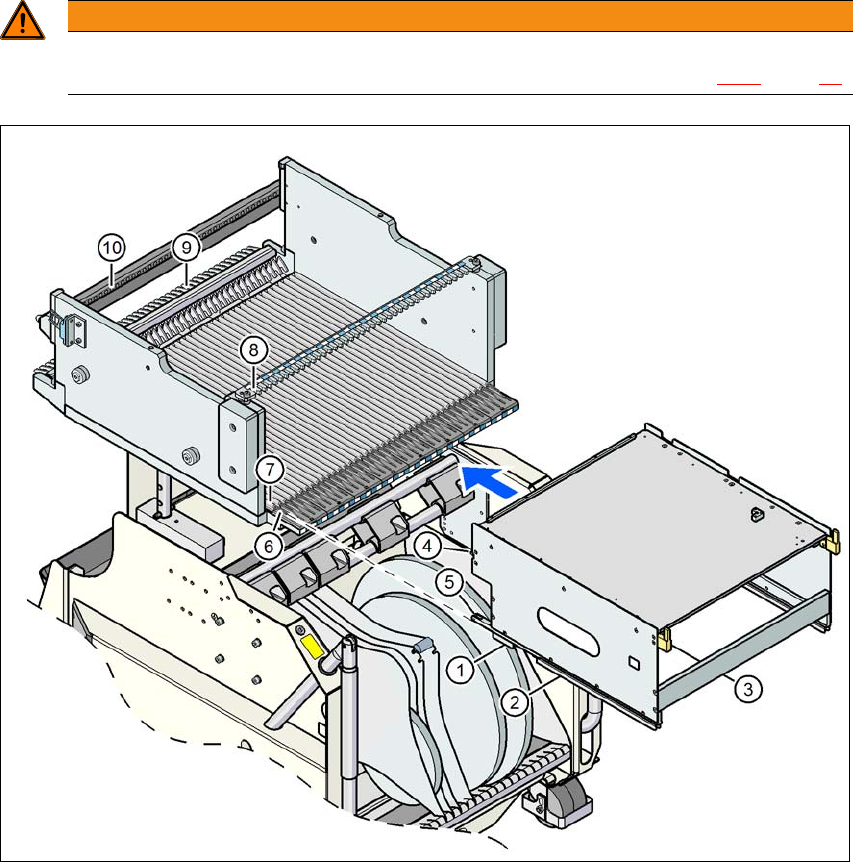

Fig. 3.8 - 10 Using waffle pack tray holder on component trolley for X-Series
WARNING
Occupation of locations!
Always follow the safety instructions about occupying locations, in section 2.6.6
, page 99.
(1) Front slider guide (6) Insertion aid
(2) Back slider guide (7) Sliding rail (omega profile)
(3) "Back" centering pin (8) Recesses in the centering bar for holding the
"back" centering pin
(4) "Front" centering pin (9) Locking latches
(5) Locking roller (10) Centering holes on the changeover table for
holding the "front" centering pin
3 Technical data and assemblies User manual SIPLACE X-Series
3.9 Component trolley From software version 710.0 Edition 12/2016
192
3.9 Component trolley
Item no. 00119722-xx SIPLACE X-Series component trolley
Four SIPLACE X-Series component trolleys can be docked onto SIPLACE X-Series machines.
3

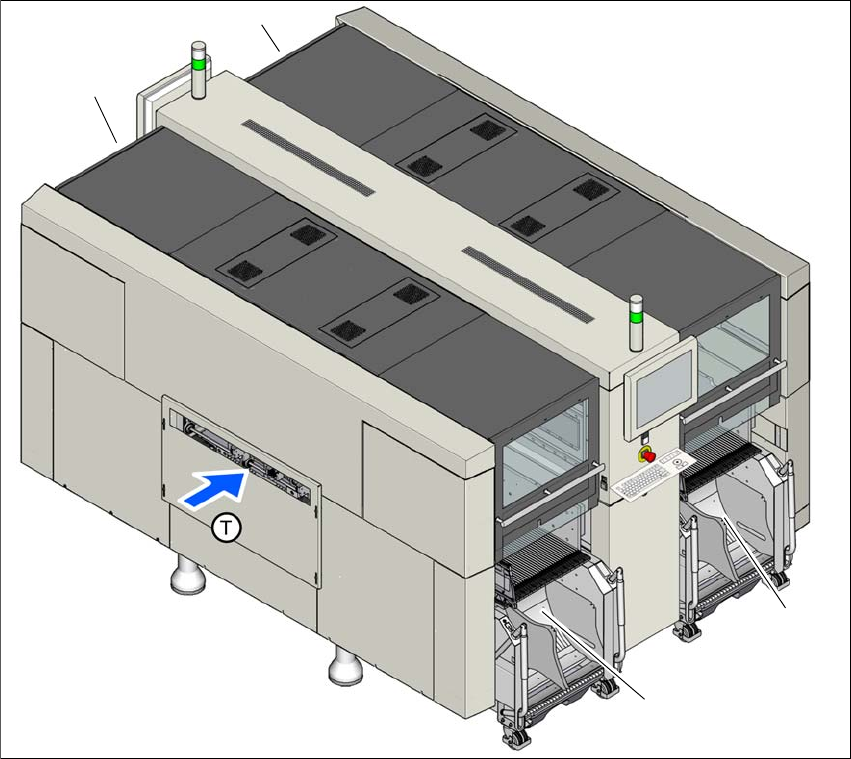

Fig. 3.9 - 1 Component trolley locations (example of SIPLACE X4i S shown)
(1) Location 1
(2) Location 2
(3) Location 3
(4) Location 4
(T) Direction of PCB transport
The component trolleys are stand-alone modules that can be set up with feeders at an external
setup area. This means that the production process only has to be interrupted briefly in order to
change the component trolley.
(1)
(4)
(2)
(3)
