3 Technical data and assemblies User manual SIPLACE X-Series 3.9 Component trolley From softwa re version 710.0 Edition 12/2016 194 3.9.1 S tructure The component tro lley essentially consists of th e chassis, th e chang…
User manual SIPLACE X-Series 3 Technical data and assemblies
From software version 710.0 Edition 12/2016 3.9 Component trolley
193
3

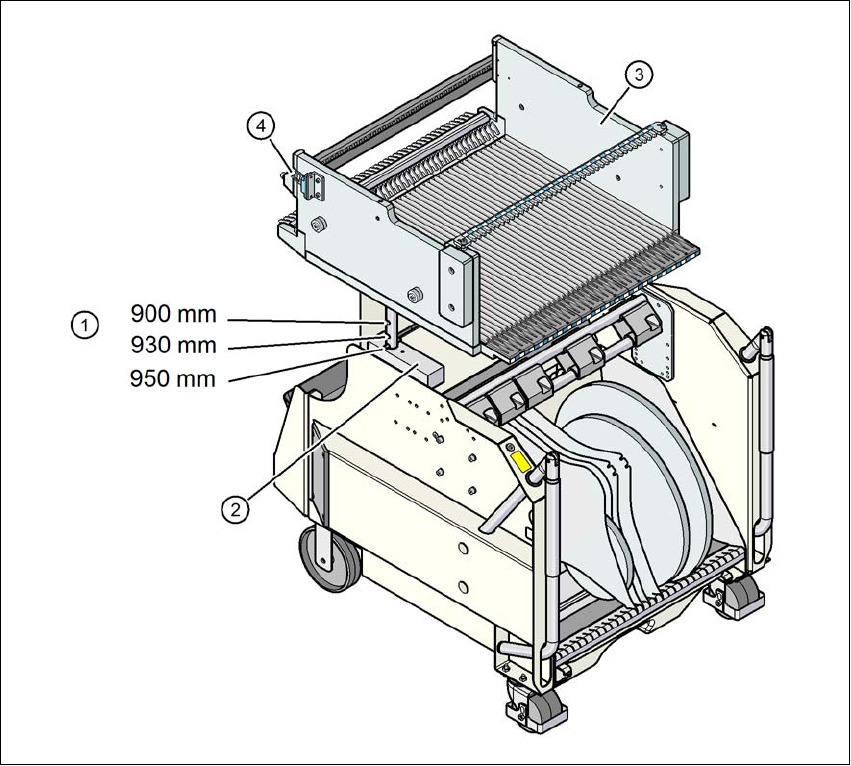

Fig. 3.9 - 2 Component trolley, SIPLACE X-Series, with a PCB conveyor height of 950 mm
3
(1) Holes in the guide columns for the transport heights of 900, 930 and 950 mm.
(2) Support block
(3) Changeover table
(4) Contact for switching the safety switch in the COT insert
3 Technical data and assemblies User manual SIPLACE X-Series
3.9 Component trolley From software version 710.0 Edition 12/2016
194
3.9.1 Structure
The component trolley essentially consists of the chassis, the changeover table for holding the
feeder modules, the tape reel container and the waste tape container.
3

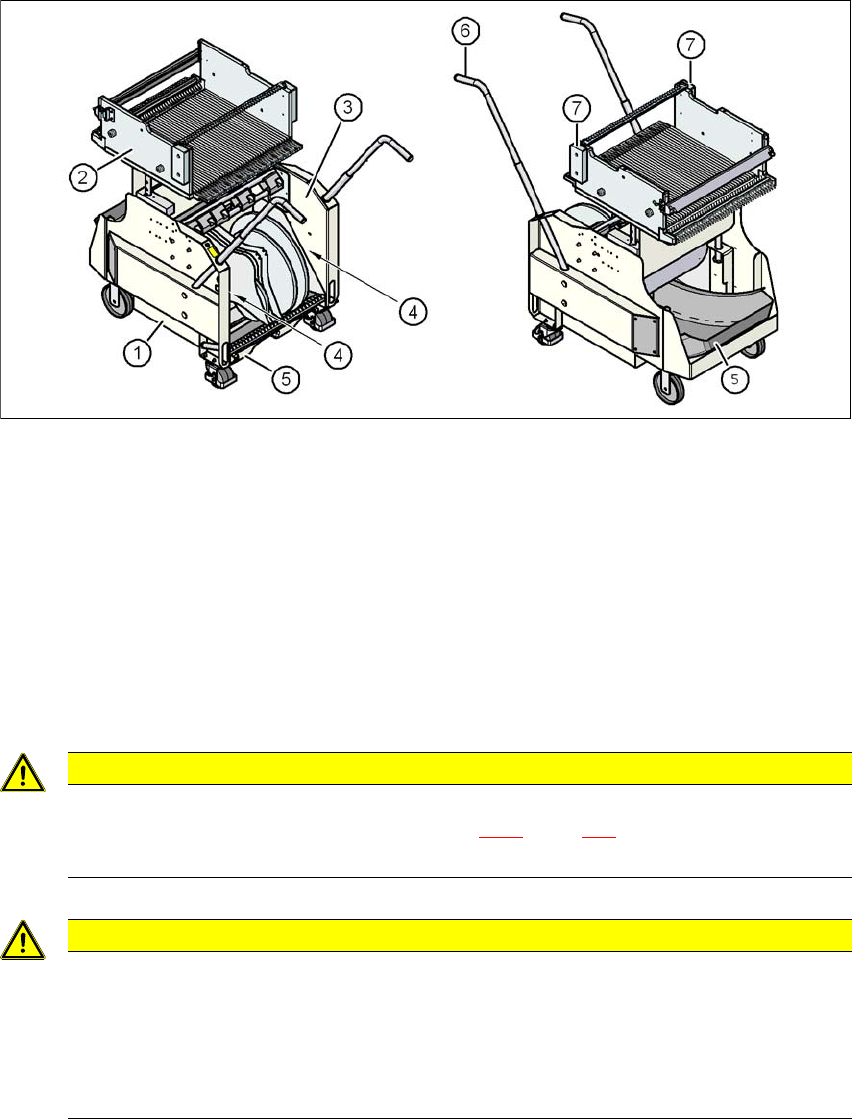

Fig. 3.9 - 3 Component trolley, SIPLACE X-Series, front and rear view
(1) Chassis
(2) Changeover table
(3) Tape container
(4) Gap for accommodation of setup lists
(5) Waste tape container
(6) Handle
(7) Hand guard
3
3
CAUTION
Observe the safety instructions!
Observe the safety instructions in section 5.8.2, page 282 when you pull the tape re-
ject bin out of the component trolley.
CAUTION
Risk of breaking handles!
Risk of breaking handles when transporting the component trolley.
When transporting the component trolley, do not lift it by its handles.
Only use the handles to push the component trolley.
Use a fork-lift if you want to transport the component trolley or lift it off the pallet.
User manual SIPLACE X-Series 3 Technical data and assemblies
From software version 710.0 Edition 12/2016 3.9 Component trolley
195
3.9.2 Description
In the standard version, the tape reel container (item 3 in fig. 3.9 - 3) holds tape reels up to a size
of 17" (432 mm).
There are two 5 mm wide gaps on the left and right, between the tape container and the compo-
nent trolley (item. 4 in fig. 3.9 - 3
, page 194) for holding setup lists.
The pullout waste tape container can be found beneath the chassis (item 5 in fig. 3.9 - 3
, page 194
). The cut waste tape travel down a chute into the waste tape container, which must be emptied
as it fills up.
The handles (item 6 in fig. 3.9 - 3
, page 194) can be folded up or down.
3
PLEASE NOTE
All component trolleys must be docked onto the
machine in order to operate it.
Fill any free locations with dummy feeder modules as described in
section 2.6.6
, page 99.
