User manual SIPLACE X-Series 4 Setting up and commissioning From software version 710.0 Edition 12/2016 4.3 Setting up the machine 223 4.3 Setting up the machine 4.3.1 W arning instructions 4 4 4 4 4 WARNING Observe the …
4 Setting up and commissioning User manual SIPLACE X-Series
4.2 Infrastructure at the installation location From software version 710.0 Edition 12/2016
222
F8 Blower Y axis 6,3 24
F9 Trailing 1 6,3 42
F10 Head supply 2 6,3 42
F11 Head supply 3 6,3 42
F12 Head supply 4 6,3 42
F13 Distributor and Vision 6,3 42
F14 Conveyor drives 6,3 42
F15 -- 6,3 27
F16 MCGU 3 6,3 27
F17 MCGU 2 6,3 27
F18 MCGU 1 6,3 27
F19 FCU 4 6,3 27
F20 FCU 3 6,3 27
F21 FCU 2 6,3 27
F22 FCU 1 6,3 27
F23 Head axis 4 6,3 160
F24 Head axis 3 6,3 160
F25 Head axis 2 6,3 160
F26 Head axis 1 6,3 160
Fuse Components Electricity
[A]
Voltage [V]
User manual SIPLACE X-Series 4 Setting up and commissioning
From software version 710.0 Edition 12/2016 4.3 Setting up the machine
223
4.3 Setting up the machine
4.3.1 Warning instructions
4
4
4
4
4
WARNING
Observe the applicable accident prevention regulations!
Only SIPLACE engineers or qualified people are permitted to set up and commission the
machine.
The applicable accident prevention regulations concerning the transportation of
heavy goods must be followed.
WARNING
Risk of injury during assembly work to the underside of the machine!
There is a risk of injury during assembly work to the underside of the machine!
Secure the machine using suitable measures. The fork-lift must not be used as the
only support.
WARNING
Risk of injury during assembly work!
Incorrect positioning of gantries during assembly restricts the head clearance and can
lead to injuries.
Take care that the gantries are positioned over the board conveyor area.
WARNING
Height adjustment of machine!
Two people will be needed to adjust the height of the machine:
– One person completes the required assembly work
– The other person watches the stability of the raised machine during assembly.
WARNING
DANGER OF CRUSHING!
Risk of crushing feet when transporting the machine.
Wear specially reinforced shoes.
4 Setting up and commissioning User manual SIPLACE X-Series
4.3 Setting up the machine From software version 710.0 Edition 12/2016
224
4.3.2 Lifting and transporting the machine with the fork lift truck
4

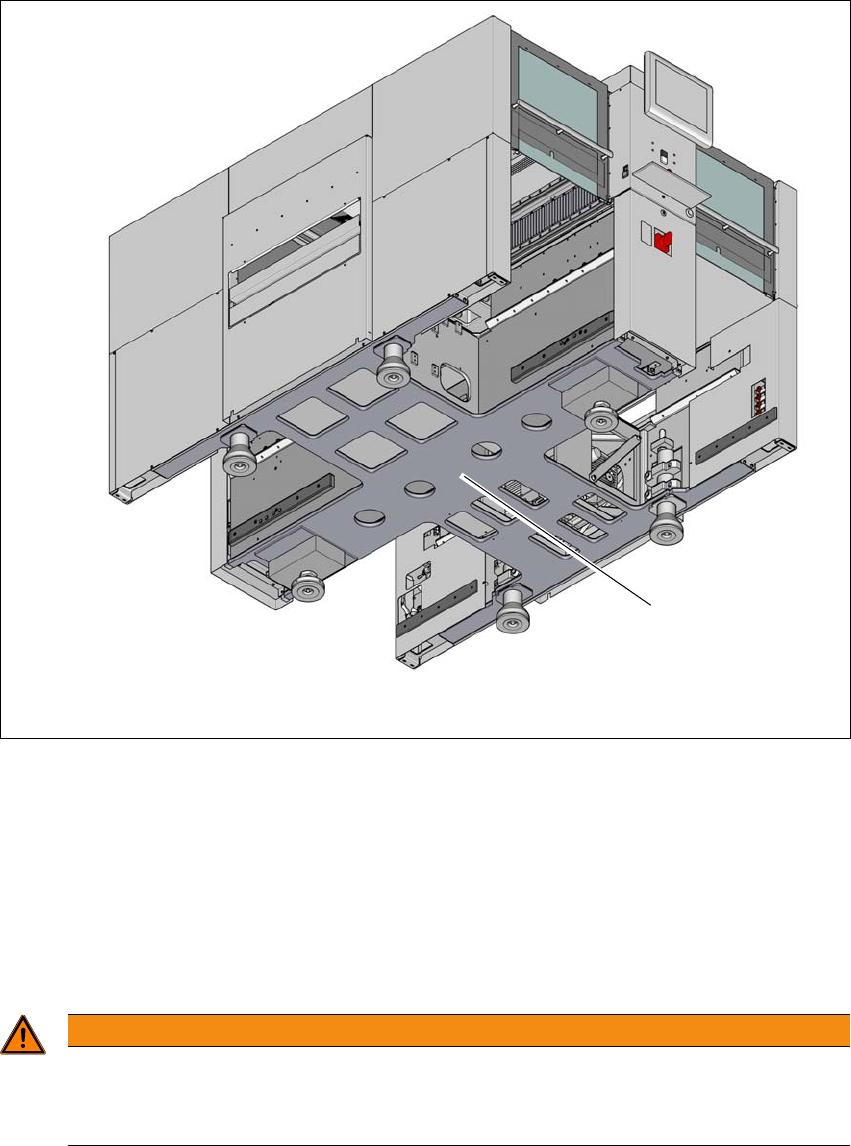

Fig. 4.3 - 1 Contact surfaces - forks parallel to the direction of PCB transport (example of SIPLACE X2 S / X3 S / X4
S shown)
(1) Contact surface for fork lift truck forks
Position the fork-lift truck at right angles to the PCB conveyor and open the forks until the con-
tact surfaces of the machine lie evenly on the forks.
Please note the following points before you raise the machine in order to avoid irreversible dam-
age to the machine:
4
WARNING
Aligning the forks
– The forks must be aligned parallel to the PCB conveyor.
– The forks must be aligned to the center of the machine.
(1)
