5 Working with the machine User manual SIPLACE X-Series 5.2 Controls and displays From software version 710.0 Edition 12/2016 254 5.2.2 Description All the contr ols can be re ached by a 1.40 m tall perso n. Main switch …
User manual SIPLACE X-Series 5 Working with the machine
From software version 710.0 Edition 12/2016 5.2 Controls and displays
253
5.2 Controls and displays
5.2.1 Overview
5

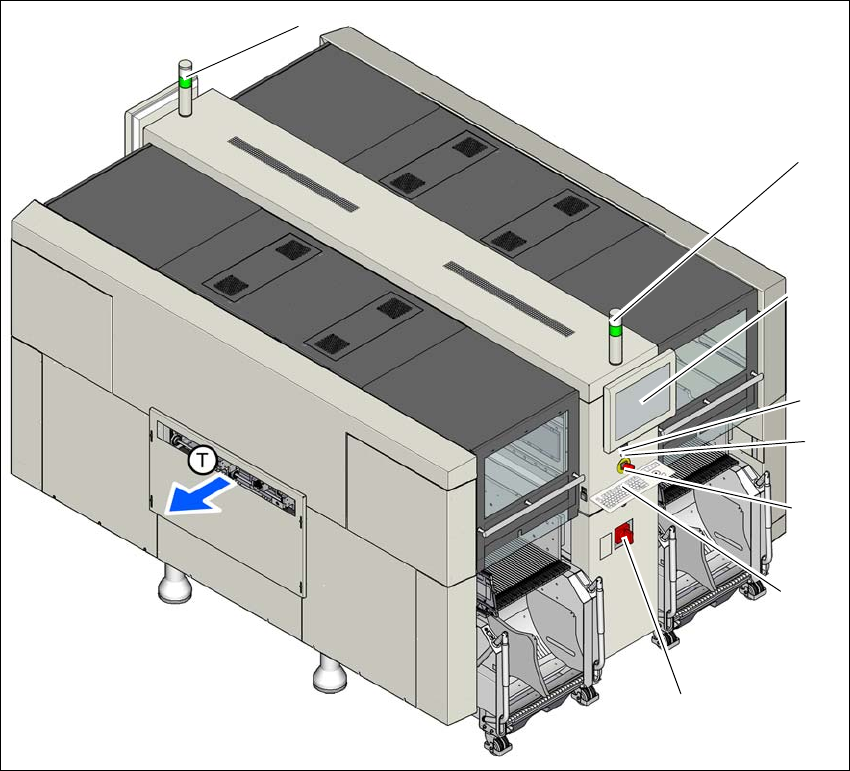

Fig. 5.2 - 1 Controls and displays (example of SIPLACE X2 S / X3 S / X4 S shown)
(1) Main switch (5) Start button (green)
(2) Stop button (black) (6) LCD touchscreen
(3) EMERGENCY STOP button (7) Indicator lamps with horn
(4) Keyboard (T) Direction of PCB transport
(1)
(2)
(3)
(5)
(6)
(7)
(7)
(4)
5 Working with the machine User manual SIPLACE X-Series
5.2 Controls and displays From software version 710.0 Edition 12/2016
254
5.2.2 Description
All the controls can be reached by a 1.40 m tall person.
Main switch 5
The main power switch is used to switch the power supply to the machine on and off.
5
Stop button 5
This white button is used to stop the machine.
Start button (green) 5
This green button starts the machine after it has been switched on or after faults have been elim-
inated.
EMERGENCY STOP button 5
The EMERGENCY STOP button latches in the ON position when pressed. The power supply to
the gantry axes, the component trolleys, conveyors and used tape cutters is interrupted and the
voltage supplied to the star axes of the placement heads is reduced. Turn the button to release it.
LCD touchscreen 5
There is a flat LCD screen with a touch-sensitive surface (touchscreen) on either side of the place-
ment machine.
DANGER
Lethal voltages!
Some parts inside the machine carry potentially lethal voltages - even when switched off
at the main power switch.
User manual SIPLACE X-Series 5 Working with the machine
From software version 710.0 Edition 12/2016 5.2 Controls and displays
255
Keyboard 5
The keyboard is located beneath the monitor.
5
Indicator lamp with horn - two color (standard) 5
The sequence of colors of the indicator lamps is white - green. These lamps are used to signal
operating statuses and malfunctions of the machine. See also Section 5.7 on page 275.
Indicator lamp with horn - three color (optional) 5
The sequence of colors of the indicator lamps is red - yellow - green. These lamps are used to
signal operating statuses and malfunctions of the machine. See also Section 5.7 on page 275.
CAUTION
Risk of collision on the monitor with keyboard
When working on the component trolley, there is risk that you could collide with the mon-
itor and keyboard.
Turn the monitor and keyboard away to the side.
Make sure that you are not under the monitor and keyboard with your head.
