5 Working with the machine User manual SIPLACE X-Series
5.5 The user interface From software version 710.0 Edition 12/2016
270
5.5.6 Application-oriented operation via color-coding markings
Icons, buttons and views can be highlighted in color. These color-coded highlights give you a clear
overview of when operator action is required or when warnings have been issued.
The station software uses the following color coded highlights:
5
Color State Meaning
Red Alert Operator action required.
Only available in the "Feeder module, components and noz-
zles" view.
Orange Warning Operator notification is present.
Immediate operator action is not required.
Only available in the "Feeder module, components and noz-
zles" view.
Green In progress Icon or button has machine under control and state is OK.
Only available in the "Production", "Feeder modules, compo-
nents and nozzles", "Boards", "Check sensors and functions"
and "Service" views.
Flashes green Waiting for board Replaces the "Busy" state if the machine is ready in production
operations but unable to process because there is no board
present.
Insert a board.
Only in the "Production" view.
User manual SIPLACE X-Series 5 Working with the machine
From software version 710.0 Edition 12/2016 5.6 Alert information and online help
271
5.6 Alert information and online help
If alerts occur during placement machine operations, the alert message in the status field of the
user interface will be shown in red. The icon for alert information will be active.
The button highlighted in red in the toolbar indicates that operator action is required.
5

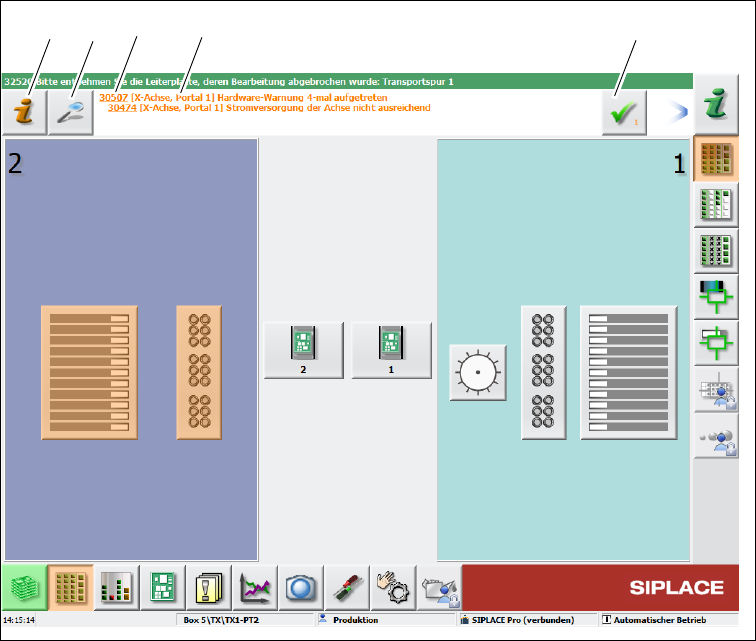

Fig. 5.6 - 1 "Production" view with alert message (example of SIPLACE SX2 shown)
Legend for fig. 5.6 - 1
(1) Alert number
(2) Alert message: brief information about the alert
(3) "Details" icon: for opening detailed information (e.g. error source, time of occurrence)
(4) "Acknowledge alert" icon: for deleting the alert display
(5) "Alert information" icon: for opening the help function for the current alert
(1)
(2) (3)
(4)
(5)
5 Working with the machine User manual SIPLACE X-Series
5.6 Alert information and online help From software version 710.0 Edition 12/2016
272
5.6.1 Viewing information about the current alert

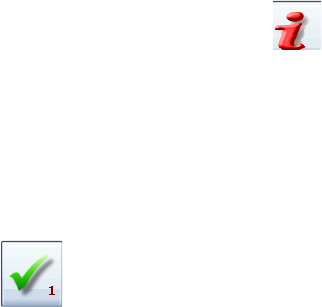

To view information about the current alert, click on the icon to start the help system for the
station computer. The main window of the help system will open with alert information. The infor-
mation refers to the alert currently shown and from which the help function was started.
Once an alert has been resolved and the solution has been automatically determined by the ma-
chine, this alert will be automatically removed from the status field.
If the solution is not recognized automatically, the alert can also be manually deleted from the sta-
tus field.
To do this, click on the icon; the alert message will no longer be shown in the status field.
