5 Working with the machine User manual SIPLACE X-Series
5.10 Setting up the feeder modules From software version 710.0 Edition 12/2016
288
5.10 Setting up the feeder modules
5.10.1 Notes on handling feeder modules
Feeder modules are precision devices. You should therefore handle the feeder modules with care.
Avoid bumping feeder modules into obstacles.
Do not drop the feeder modules.
Always use suitable tools for preventive maintenance.
5.10.2 Removing X feeder modules from the changeover table
5

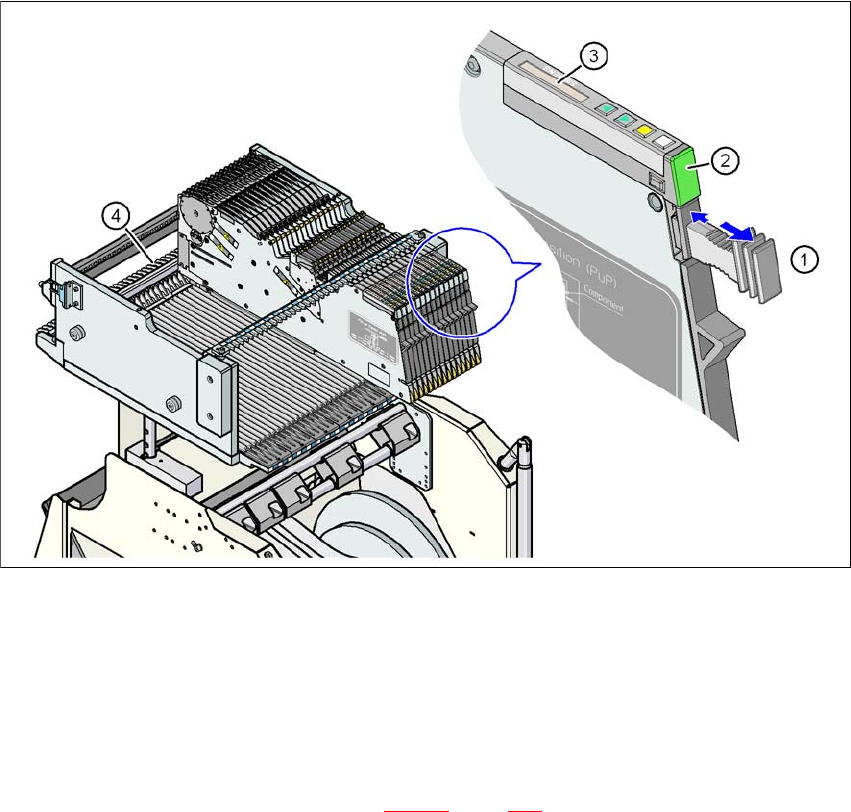

Fig. 5.10 - 1 Removing X feeder modules from the changeover table
(1) Removal handle
(2) Status display
(3) LCD display
(4) Latch for locking the X feeder modules
5
On standby, the status display (item 2 in fig. 5.10 - 1, page 288) lights up green if the X-axis feeder
module is contained in the current setup. If the feeder module is not contained in the current setup,
the status display remains off.
User manual SIPLACE X-Series 5 Working with the machine
From software version 710.0 Edition 12/2016 5.10 Setting up the feeder modules
289
The X feeder module is locked in position in the changeover table by a latch, and cannot be pulled
out. The procedure for removing feeder modules from the changeover table is as follows:
Press the removal handle (item 1 in fig. 5.10 - 1, page 288). The removal handle jumps out
and the status display goes out.
Wait approximately 1 second until the lock (item 4 in fig. 5.10 - 1, page 288) releases the
feeder module.
Use the removal handle to pull the feeder module out of the changeover table. If you wait lon-
ger than 5 seconds, the feeder module will be locked once more. The status display
lights up red and the message (item 3 in fig. 5.10 - 1
, page 288) "Handle --->>" appears on
the LCD display.
Engage the removal handle once more. If the X feeder module is contained in the current
setup, the status display lights up green and the track number and increment are appear on
the LCD display once more.
Press the removal handle again (item 1 in fig. 5.10 - 1, page 288) and now pull the feeder
module out of the changeover table.
5 Working with the machine User manual SIPLACE X-Series
5.10 Setting up the feeder modules From software version 710.0 Edition 12/2016
290
5.10.3 Using the X feeder module
5.10.3.1 Check the X feeder module before using it
Check the following points before you use a feeder module on the changeover table:
The feeder module must be in perfect condition.
Tap the cover foil rocker (item 2 in fig. 5.10 - 2, page 291) lightly to make sure that it has not
jammed.
Check that the area around the pickup window (item 3 in fig. 5.10 - 2, page 291) is free
from loose components.
5
Press the lever (item 4 in fig. 5.10 - 2, page 291) forward slightly to open the pickup window
(item 3 in fig. 5.10 - 2
, page 291). This will raise the pick-up window slightly.
5
Remove any loose components from beneath the pick-up window.
Close the pickup window (item 3 in fig. 5.10 - 2), by returning the lever (item 4 in fig. 5.10 - 2)
to its original position.
Remove loose components from the changeover table with a brush or use a vacuum cleaner
with appropriate nozzle.
5
PLEASE NOTE
Empty the component disposal compartment (item 5 in fig.5.10 - 2, page 291), be-
fore you
shake components out of the feeder module.
PLEASE NOTE
The tensioned cover foil continues to transport the tape when the tape has been inserted
and exposes the components.
Do not press the lever if a component tape is inserted.
PLEASE NOTE
If the component tape is already inserted, cut it off flush with the front edge of the
feeder module.
