5.11.2 Feeder module with LED display

The SIPLACE SmartFeeder have a multicolored status display for each track and LED displays,

to indicate the operating states.

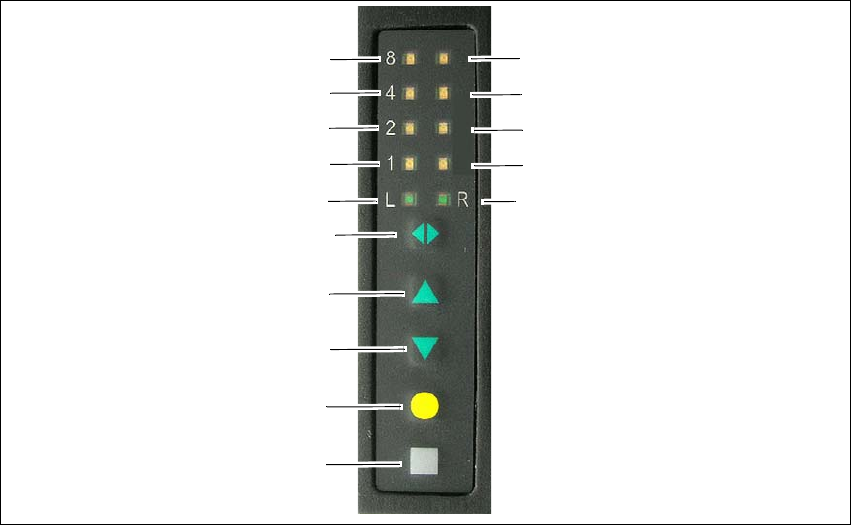

Fig. 5.11 - 2 Buttons, LED and status displays: Example of SIPLACE SmartFeeder 2x8 mm

(1) SET button

(2) FOIL button

(3) BACK button

(4) FORWARD button

(5) Track change button for switching between right and left

(6) LED L left track active

(7) LED 1 mm increment for left track

(8) LED 2 mm increment for left track

(9) LED 4 mm increment for left track

(10) LED 8 mm increment for left track

(11) LED R right track active

(12) LED 1 mm increment for right track

(13) LED 2 mm increment for right track

(14) LED 4 mm increment for right track

(15) LED 8 mm increment for right track

(1)

(2)

(3)

(4)

(5)

(6)

(7)

(8)

(9)

(10)

(15)

(14)

(13)

(12)

(11)

User manual SIPLACE X-Series 5 Working with the machine

From software version 710.0 Edition 12/2016 5.11 Observing displays on the X feeder module

301

5.11.3 Status display

–Green:

The feeder module is on standby and is contained in the current setup.

– Orange:

A warning is being signalized. The text of the warning appears on the LCD display.

–Red:

A malfunction has occurred. The error message is output on the LCD display.

–Off:

The feeder module is not in the current setup.

5.11.4 LCD display

The following tables containing the wording of the LCD display, the color and the mode of the sta-

tus display, its meaning and troubleshooting measures.

5.11.4.1 Warnings and solutions

PLEASE NOTE

"LED off" only for feeder modules contained in the setup

The machine controller switches off the status display of any feeder modules not included

in the setup.

The "LED off" status only occurs when the programming system has preset a job on the

line. This takes some of the work away from the operator since he only has to watch

those feeder modules that are contained in the setup.

PLEASE NOTE

Setup procedure: Activation of LED for each feeder module

For the actual setup process - no setup information at the station, no job sent from SI-

PLACE Pro to the station/line - the LED on each feeder module is activated after the set-

up has been made. The operator is thus informed whether everything is OK.

Text on the

LCD display

Status

display

Meaning Solution

Remove Foil

(Remove the foil)

Orange The selected function is not

permitted when the cover foil

is tensioned (foil rocker is

pressed down).

If you wish to carry out that function, remove

the foil from the pair of gear wheels and cut

it off to relieve the pressure on the foil rocker.

5 Working with the machine User manual SIPLACE X-Series

5.11 Observing displays on the X feeder module From software version 710.0 Edition 12/2016

302

5.11.4.2 Error messages and solutions

Text on the

LCD display

Status

display

Meaning Solution

None Red,

flashing

Feeder module software not

jumping to the application

Reload the application software

Load feeder module software

Handle --->>

(Handle --->>)

Red Feeder module was sig-

naled, but removal handle is

not yet pushed in

Push in the removal handle

Low Voltage

(Low voltage)

Orange 24V supply voltage did not

rise above the switch-on

threshold after switching on

Check the power supply

Low Voltage

(Low voltage)

Red 24V supply voltage rose

above the switch-on thresh-

old after switching on and

was then interrupted

Check the power supply

Feed Timeout

TransTimeout

(Timeout in tape

feeder cycle)

Red Tape feeder cycle did not

end correctly within the spec-

ified time (timeout for the

"Feed" function)

Is the tape reel jammed in the container?

Is there a component jammed in the pick-up

area between component tape and compo-

nent window?

Once the obstacle has been eliminated, use

the arrow keys to restart the conveyor. The

feeder module will move the defective con-

veyor to the end, and then returned to its

position

Foil Torn

(Foil torn)

Red Foil was not tensioned within

the specified time

The foil is probably torn. Insert new foil and

tension

Foil PeelErr

(Error while peel-

ing off the foil)

Red Foil was not peeled off even

though the tape is moved

The cover foil is probably jammed beneath

the pick-up window and cannot be peeled

off correctly

Foil Jam

(Foil jam)

Red Foil motor has locked up Leveling gears blocked by foil? => Remove

the foil

EEP-WriteErr

(Error while back-

ing up data in the

EEPROM)

Red The data back-up in the EE-

PROM was not carried out

correctly

Remove the component tape (tape can be

moved out by pressing the arrow keys or

pulled out after raising the pick-up window).

Press the SET button to confirm the error.

Then press the yellow button to confirm the

reference run prompt.

EEP-ReadErr

(Error while read-

ing

the EEPROM)

Red Data was not read from the

EEPROM correctly

EEP-DataErr

(Error while back-

ing up the data in

the EEPROM)

Red The data back-up in the EE-

PROM was not carried out

fully
