User manual SIPLACE X-Series 6 Station extensions From software version 710.0 Ed ition 12/2016 6.1 Nozzle changer 323 Place the magazine on the snap fastener b alls (item 5 in fig. 6.1 - 7 , page 322 ). Press the mag…
6 Station extensions User manual SIPLACE X-Series
6.1 Nozzle changer From software version 710.0 Edition 12/2016
322
6
Fig. 6.1 - 7 Nozzle changer for the SpeedStar - changing the magazine (example of 6 magazines)
(1) Lever for raising the magazine
(2) Parallel pin, engages in the hole in the magazine
(3) spring pin for triggering the microswitch
(4) Pin of the slide mechanism, moves the locking plate
(5) Ball of snap fastener
(6) Parallel pin, engages in the slot in the magazine
(7) Locking plate in the "magazine locked" position
6
PLEASE NOTE
Move the locking plate into the "Magazine locked" position.
Before inserting, align the magazine so that the centering pins (items 2 and 6 in fig.
6.1 - 7
, page 322) slide into the centering holes and slot.
User manual SIPLACE X-Series 6 Station extensions
From software version 710.0 Edition 12/2016 6.1 Nozzle changer
323
Place the magazine on the snap fastener balls (item 5 in fig. 6.1 - 7, page 322).
Press the magazine down evenly so that the snap fastener balls engage in all the snap fas-
teners at the same time.
6.1.2.11 Position detection
Each magazine of the nozzle changer has two fiducials: one for determining the position and one
for determining the angular position.
6

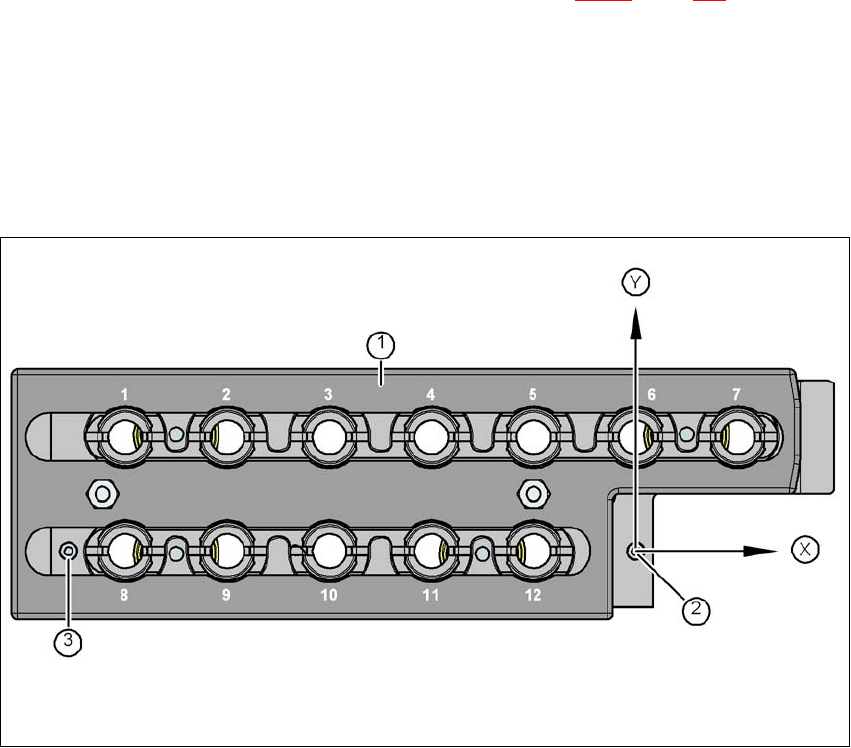

Fig. 6.1 - 8 Nozzle magazine - holder numbering, fiducials for determining the position and angular position
(1) Locking plate in the "magazine open" position
(2) Fiducial for determining the position
(3) Fiducial for determining the angular position
6 Station extensions User manual SIPLACE X-Series
6.1 Nozzle changer From software version 710.0 Edition 12/2016
324
6.1.3 Nozzle changer for SIPLACE SpeedStar C&P20 P
This nozzle changer can accommodate 6 or 4 magazines, each with 12 nozzle garages. The mag-
azines are seated on a common support. They are centered with two parallel pins and fixed in
place with 4 push buttons. The exact position is determined with two fiducials on each magazine.
The correct seat of the magazines on the basic nozzle changer body is monitored by micros-
witches, to prevent a collision of the placement head with any magazines projecting upwards. All
magazine locations must be filled since the safety circuit stops the machine in response to missing
magazines or magazines that are not seated correctly. At the installed nozzle station, components
can be blown off the nozzles of the SpeedStar and nozzles stripped off and rejected.
6
6.1.3.1 Nozzle changer for C&P20 P with 6 magazines
Item no. 03103514-xx Nozzle changer basic assembly CP/all - long
Item no. 031031503-xx Nozzle magazine 40xx with 20 garages
6
Fig. 6.1 - 9 Nozzle changer for the SIPLACE SpeedStar C&P20 P with 6 magazines
CAUTION
Only use this nozzle changer together with the SpeedStar.
