User manual SIPLACE X-Series 6 Station extensions
From software version 710.0 Edition 12/2016 6.1 Nozzle changer
335
6.1.4.5 Nozzle magazine for 28xx nozzles
6
Fig. 6.1 - 18 Nozzle magazine for 28xx nozzles
(1) 5 garages for 28xx nozzles with a maximum nozzle length of 12.5 mm
(garage numbers 1, 5, 6, 8 and 9)
(2) 4 garages for 28xx nozzles with a maximum nozzle length of 16.5 mm
(garage numbers 2, 3, , 4 and 7)
(3) Fiducials (only visible when locking plate open)
6 Station extensions User manual SIPLACE X-Series
6.1 Nozzle changer From software version 710.0 Edition 12/2016
336
6.1.4.6 Technical data
6
Nozzle changer for the SIPLACE MultiStar
Number of magazines
*a*b
SIPLACE X2 S/X3 S/X4 S 6
SIPLACE X4i S 6
6
4
Number of nozzle garages
SIPLACE X2 S/X3 S/X4 S 6
SIPLACE X4i S 6
72 or 120
*c
48 or 80
*c
Standard configuration
SIPLACE X2 S/X3 S/X4 S 6
6
6
6
SIPLACE X4i S 6
5 magazines with 60 x 20xx nozzle garages or with
80 x 20xx nozzle garages
*c
1 magazine with 9 x 28xx nozzle garages
3 magazines with 36 x 20xx nozzle garages or with
60 x 20xx nozzle garages
*c
1 magazine with 9 x 28xx nozzle garages
Option: Nozzle changer "row 2" 4 magazines with 48 x nozzle garages or with 80 x
nozzle garages*
c
Nozzle types 10xx, 11xx, 12xx
20xx, 28xx
*)a All magazines in the nozzle changer must be configured.
*)b With restrictions at location 2 for MTC/WPC
*)c On request
User manual SIPLACE X-Series 6 Station extensions
From software version 710.0 Edition 12/2016 6.1 Nozzle changer
337
6.1.4.7 Configuration example: CPP for SIPLACE X4i S
Locations 1, 2, 3 and 4 can each accommodate one nozzle changer for the CPP head (item 1 in
fig. 6.1 - 19
, page 337).
6

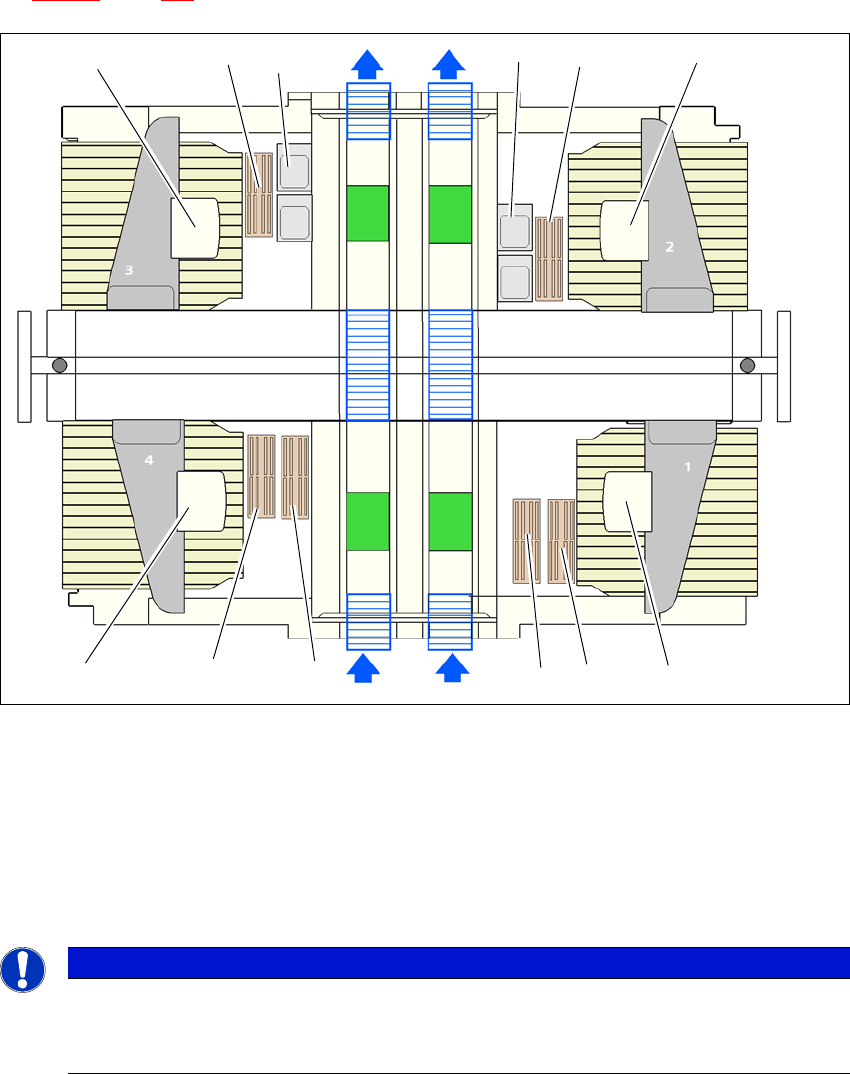

Fig. 6.1 - 19 Position of nozzle changer for the SIPLACE MultiStar machine - configuration example (SIPLACE X4i S)
6
6
(1) Nozzle changer
(2) SIPLACE MultiStar
(3) Stationary cameras
(4) Nozzle changer row 2 (optional)
PLEASE NOTE
Stop machine if magazine missing
The safety circuit stops the machine if magazines are missing or not fitted correctly.
Use all magazine places.
(2)(1)
(1)
(2)
(1)
(2) (2)
(3)
(3)
(1)
(4)
(4)
