6 Station extensions User manual SIPLACE X-Series
6.1 Nozzle changer From software version 710.0 Edition 12/2016
342
6.1.4.13 Position detection
Each magazine of the nozzle changer has two fiducials: one for determining the position and one
for determining the angular position.
6

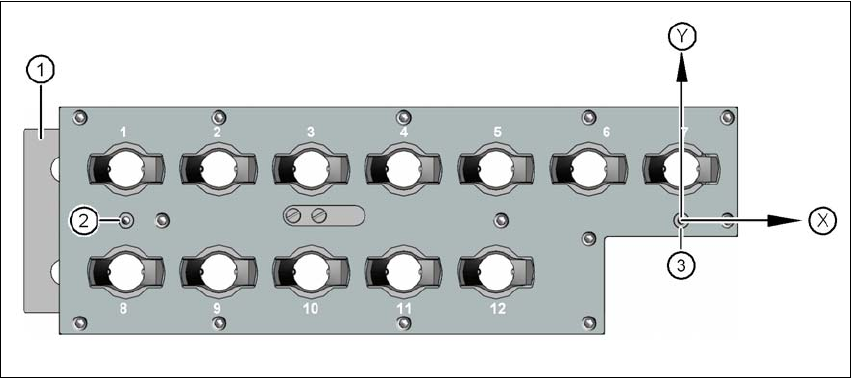

Fig. 6.1 - 23 Nozzle magazine - fiducials for determining the position and angular position
(1) Locking plate in the "magazine open" position
(2) Fiducial for determining the angular position
(3) Fiducial for determining the position
User manual SIPLACE X-Series 6 Station extensions
From software version 710.0 Edition 12/2016 6.1 Nozzle changer
343
6.1.5 Nozzle changer for the SIPLACE TwinStar
Item no. 03005191-xx Magazine for 2 nozzles
Item no. 03001807-xx Magazine for 1 nozzle
6

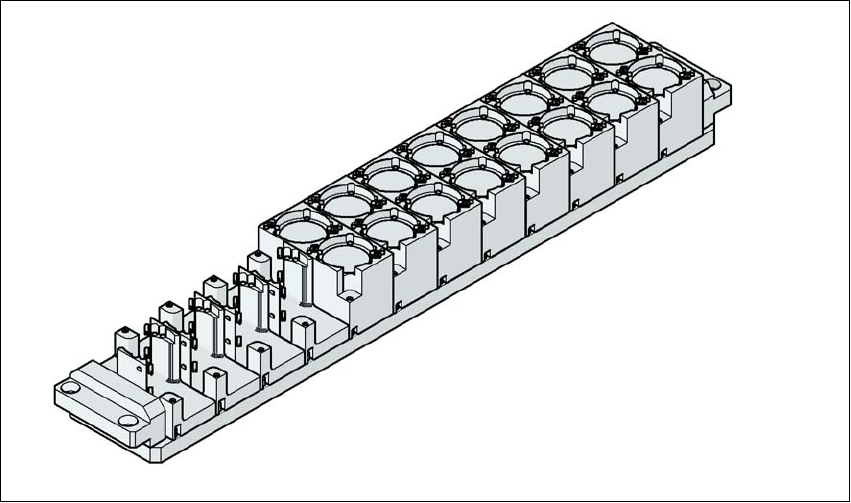

Fig. 6.1 - 24 Nozzle changer for the SIPLACE TwinStar
6.1.5.1 Description
This nozzle changer can accommodate up to 12 nozzle magazines. There are two different mag-
azine types available: standard magazines and magazines for special nozzles or grippers. The
magazines are seated on a common support. They are centered with two parallel pins and fixed
in place with two countersunk screws.
6 Station extensions User manual SIPLACE X-Series
6.1 Nozzle changer From software version 710.0 Edition 12/2016
344
6.1.5.2 Technical data
6
Nozzle changer for the SIPLACE TwinStar
Number of magazines
Locations 1 and 3 6
Locations 2 and 4 6
max. 12 magazines for max. 24 nozzle garages
max. 10 magazines for max. 20 nozzle garages
Number of nozzle holders may be freely configured
Standard configuration 3 magazines with two nozzle garages each
1 magazine with one nozzle garage
Nozzle types 4 xx with adapter
5xx (standard)
9 xx with adapter
Special nozzle, gripper
