User manual SIPLACE X-Series 6 Station extensions
From software version 710.0 Edition 12/2016 6.4 Matrix tray changer
355
6.4.5 Dimensions of the SIPLACE X2 S / X3 S / X4 S machine with MTC
6

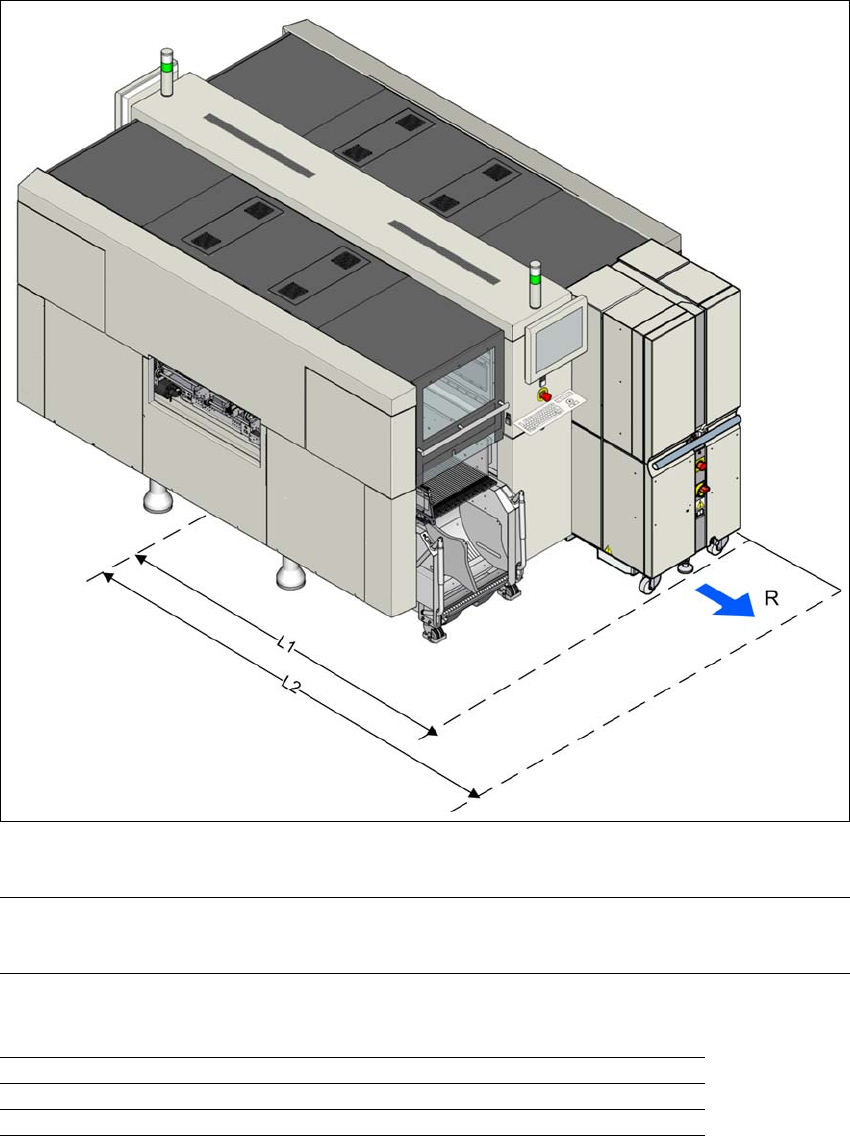

Fig. 6.4 - 3 Dimensions of the SIPLACE X2 S / X3 S / X4 S machine with Matrix Tray Changer in millimeters
PLEASE NOTE 6
A Matrix Tray Changer can be docked at location 2, in place of the component trolley.
The maneuvering distance R of the MTC in SIPLACE X2 S / X3 S / X4 S machines is as follows:
6
Maneuvering distance R location position 2 750 mm
Distance L1: Machine center to outer edge of MTC 1938 mm
Distance L2: Machine center to wall 2688 mm
6 Station extensions User manual SIPLACE X-Series
6.5 Waffle pack changer (WPC5/WPC6) From software version 710.0 Edition 12/2016
356
6.5 Waffle pack changer (WPC5/WPC6)
6
6.5.1 Description
The waffle pack changer makes components available in the waffle pack trays, to avoid unneces-
sary loss of time during storage and automatic changing of the waffle pack trays. The individual,
programmable access to up to 28 waffle pack trays also increases the range of components avail-
able.
The waffle pack changer has an integral chassis, and is easy to move to other locations. It is sup-
plied with the PCB conveyor height set for the customer-specific machine but can be quickly and
easily adapted to conveyor heights of 900, 930, and 950 mm. The fixed component table must be
configured at the remaining location.
PLEASE NOTE
Available from software version SC.707.1
User manual SIPLACE X-Series 6 Station extensions
From software version 710.0 Edition 12/2016 6.5 Waffle pack changer (WPC5/WPC6)
357
6.5.2 Overview
The functionality and the technical data for the WPC5 are largely identical to those for the WPC6.
However, the WPC6 also has a non-stop module.
Item no. 00119827-xx WPC5
Item no. 00119828-xx WPC6
6
Fig. 6.5 - 1 WPC6 on the SIPLACE X2 S / X3 S / X4 S
(1) WPC6
(2) Non-stop module
(1)
(2)
