6.11 Stationary cameras
6.11.1 Stationary P&P component camera (type 25) 16 x 16, digital (FC camera)
Item no. 03105205-xx Stationary component camera 16x16 digital, type 25
6

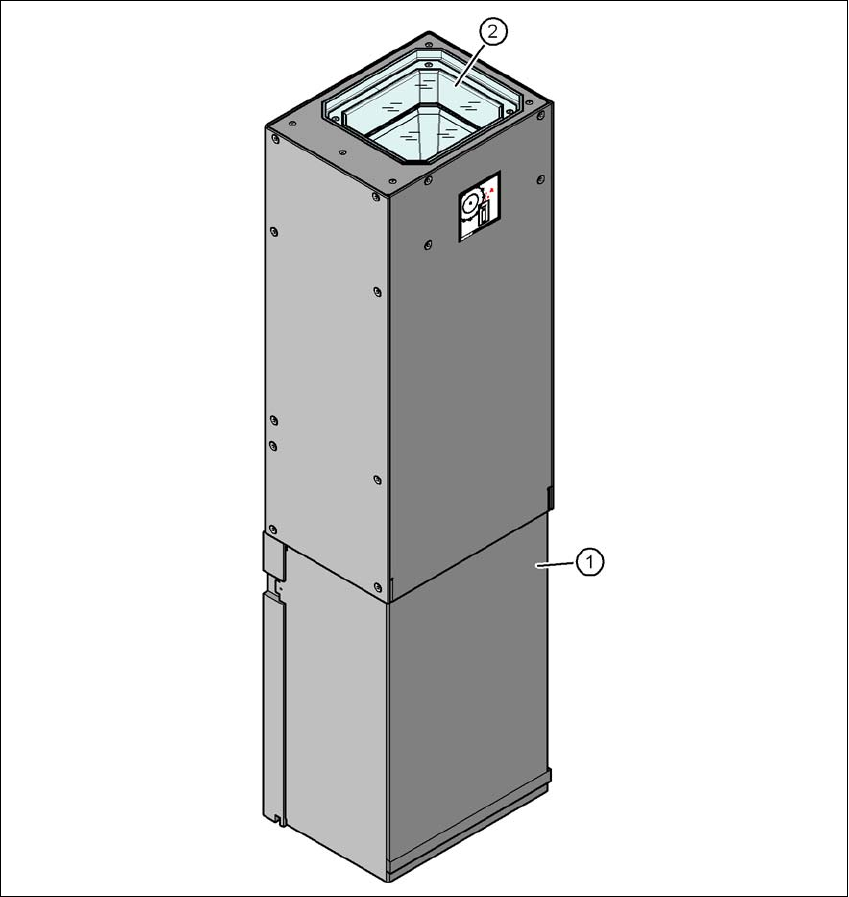

Fig. 6.11 - 1 Stationary P&P component camera (type 25) 16 x 16, digital (FC camera)
(1) Camera housing with integral camera and camera amplifier
(2) Glass plate - illumination and lens levels below
6.11.1.1 Safety instructions
6
WARNING
Risk of collisions!
When changing the placement head from a TwinStar/VHF to a SpeedStar, the SpeedStar
collides with the camera housing.
Dismantle the stationary component camera for the TwinStar.
When changing the placement head from a TwinStar to a MultiStar, the stationary
component camera is fitted in the bottom position.
User manual SIPLACE X-Series 6 Station extensions
From software version 710.0 Edition 12/2016 6.11 Stationary cameras
383
6.11.1.2 Technical data
6
Component dimensions 0.2 mm x 0.2 mm up to 16 mm x 16 mm for single component
measurement
Component range 0402 to SO, PLCC, QFP, sockets, plugs, BGA, special components,
bare dies, flip-chips, shields
Min. lead pitch 0.25 mm
Min. lead width 0.1 mm
Min. ball pitch 0.14 mm
Min. ball diameter 0.08 mm
Field of vision 19.4 mm x 19.4 mm
Illumination type Front-illumination (6 levels, programmable as required)
6 Station extensions User manual SIPLACE X-Series
6.11 Stationary cameras From software version 710.0 Edition 12/2016
384
6.11.2 Component camera, stationary P&P, type 33, 55 x 45, digital
Item no. 03105198-xx Stationary camera for the CPP head, type 33
6

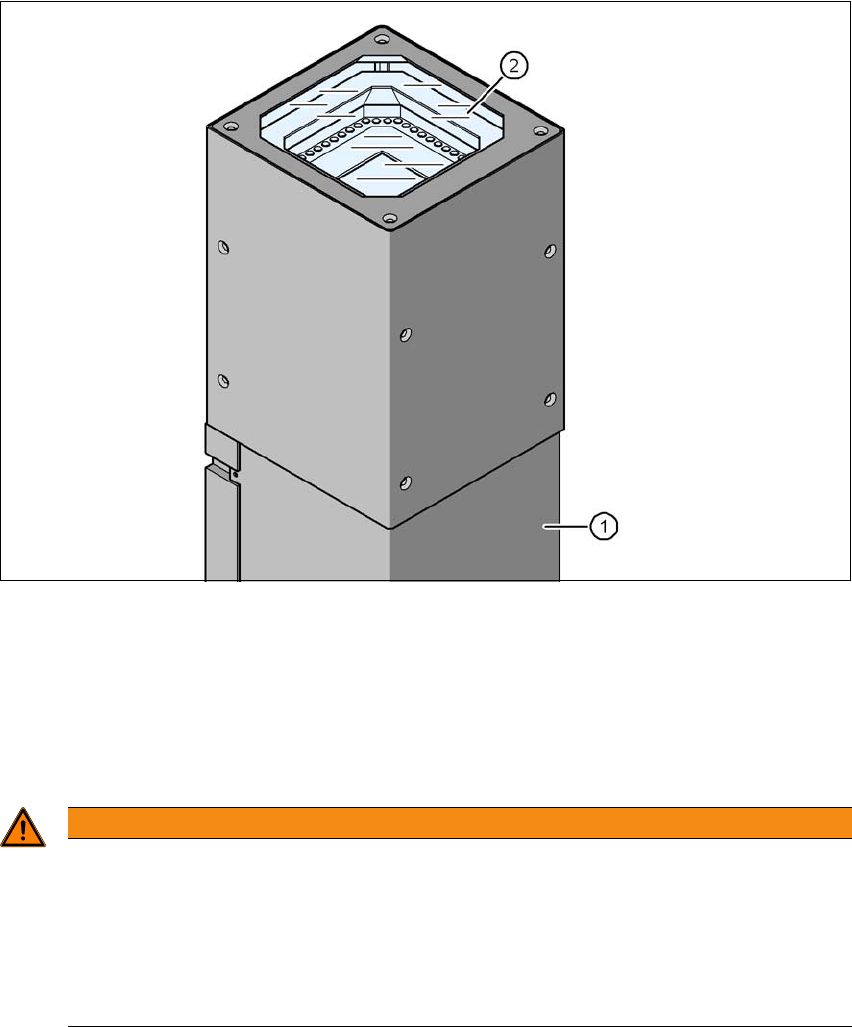

Fig. 6.11 - 2 Structure for the stationary P&P component camera, type 33, 55 x 45, digital
(1) Camera housing with integral camera and camera amplifier
(2) Glass plate - illumination and lens levels below
