User manual SIPLACE X-Series 2 Operational safety
From software version 710.0 Edition 12/2016 2.2 Warning labels
63
2.2.4.1 Warning label W205 on the used tape chute
2
Fig. 2.2 - 6 Warning label W205 on the used tape chute
W205, item no. 03009344-01
2.2.4.2 Warning label 205
Warning labels on tape cutter and used tape chute
2
W205 in fig. 2.2 - 5, page 62 and 2.2 - 6, page 63, item no. 03009344-01 (quantity per machine: 8)
W205
2
2
2
2
2
2
2
2
RISK OF CUTTING!
Danger of cutting is present even when the machine is switched
off
2 Operational safety User manual SIPLACE X-Series
2.2 Warning labels From software version 710.0 Edition 12/2016
64
2.2.5 Warning labels on the power supply unit
2
W206 in fig. 2.2 - 7, page 64 item no. 03009345-01 (quantity per machine: 2).
W206 in fig. 2.2 - 8
, page 65 item no. 03009345-01 (quantity per machine: 2).

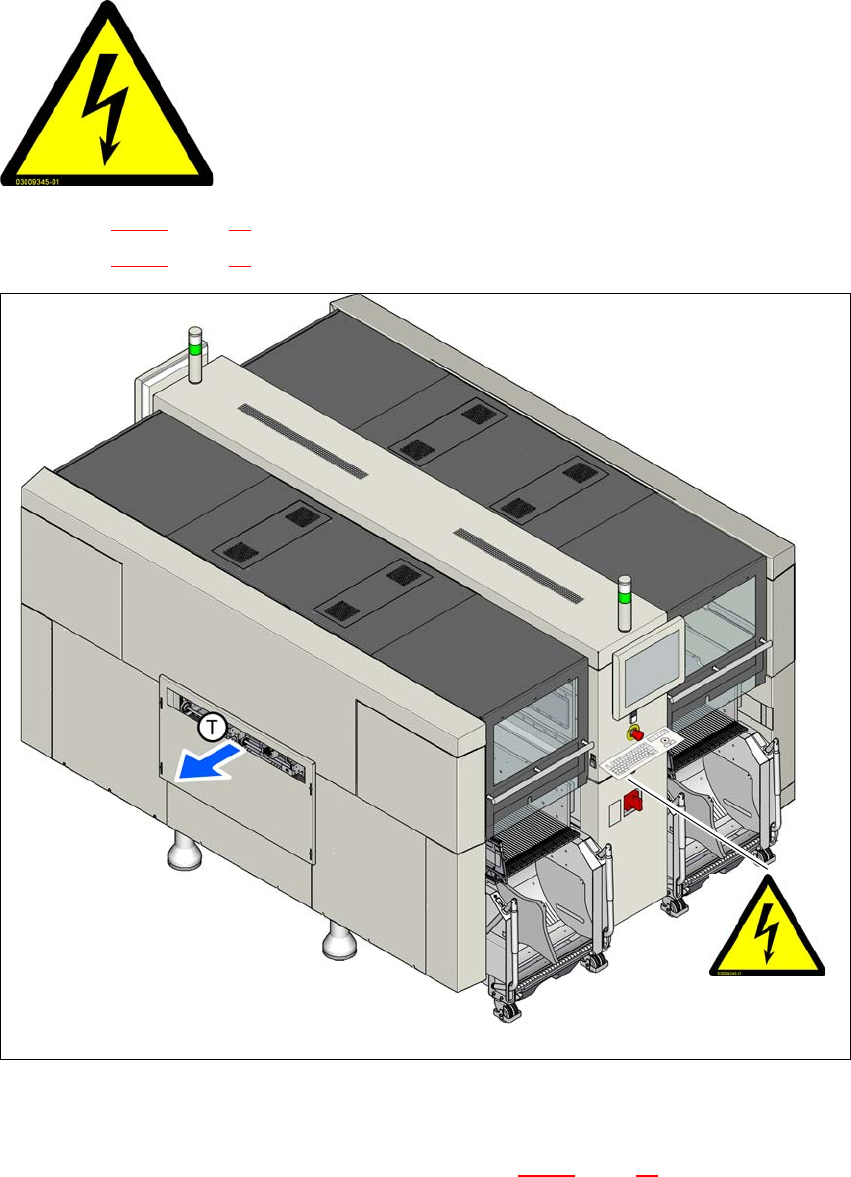

Fig. 2.2 - 7 Warning label W206, (example SIPLACE X2 S / X3 S / X4 S)
W206, central cover on the power supply
W206, on the inside of the power supply unit (see also fig. 2.2 - 8
, page 65 )
DANGEROUS VOLTAGES!
The labeled parts are still live when the main power switch is off
and the mains plug has been disconnected.
Disconnect the machine from the mains before servicing it.
NAFTA region: RISK OF ELECTRIC SHOCK OR BURN!
W206
User manual SIPLACE X-Series 2 Operational safety
From software version 710.0 Edition 12/2016 2.2 Warning labels
65
2.2.5.1 Warning labels on the power supply unit
2
W220 in fig. 2.2 - 8, page 65, item no. 03114591-01 (quantity per machine: 6).

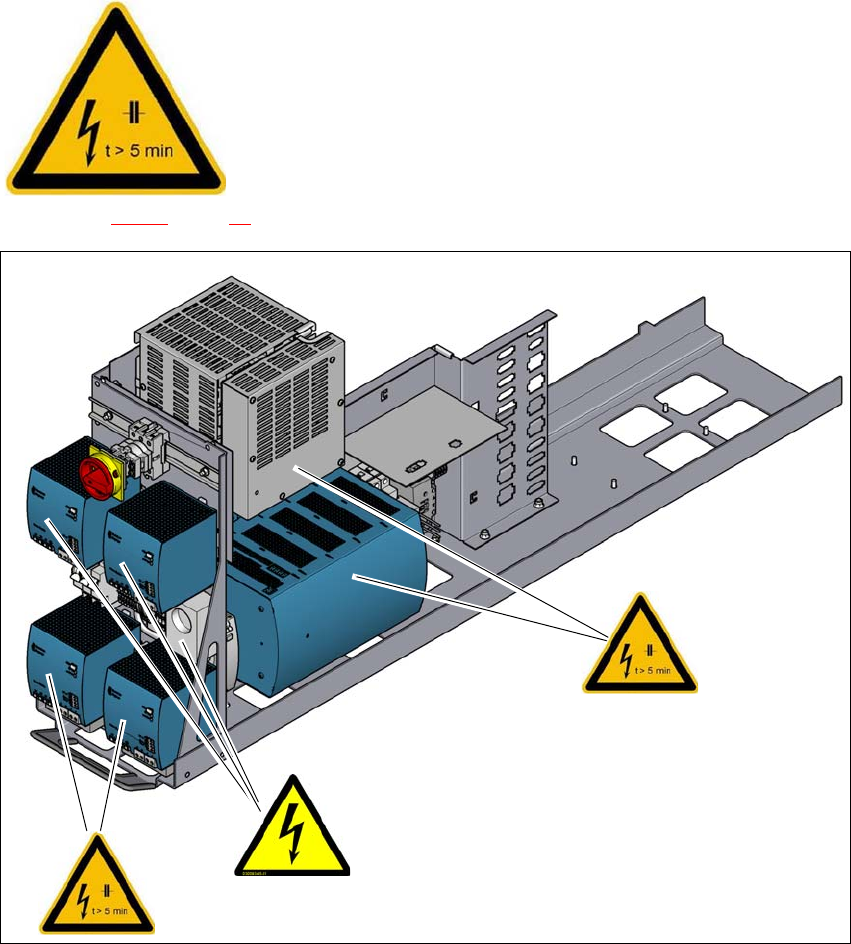

Fig. 2.2 - 8 Warning label W 206, W220 on the power supply unit
– W220 on the capacitor battery PCS417
– W220 on the power supplies for the AC/DC converter (160 V DC /300 V DC).
– W220 on the cover of the safety cutoff (CSB)
– W206 on the service socket
2
2
MAIN POWER VOLTAGE!
Switch off the main power switch, unplug the power supply and
wait 5 minutes until the capacitors have discharged.
NAFTA region: RISK OF ELECTRIC SHOCK OR BURN!
W220
W206
W220
