User manual SIPLACE X-Series 2 Operational safety From software version 710.0 Edition 12/2016 2.2 Warning labels 69 2.2.8 W arning labels on th e SIPLACE MultiSt ar CPP 2 Fig. 2.2 - 1 1 Warning labels on the SIPLACE Mult…
2 Operational safety User manual SIPLACE X-Series
2.2 Warning labels From software version 710.0 Edition 12/2016
68
2.2.7.1 High temperatures on the SIPLACE C&P20 P
2
1 in fig. 2.2 - 10, page 67 (quantity per SIPLACE C&P20 P: 1)
2.2.7.2 Laser class 2 on the component sensor
2
W laser class 2 in fig. 2.2 - 10, page 67, item no. 03134118-01 (quantity per C&P20 P: 1)
2
High temperatures on the SIPLACE C&P20 P during continuous operation
Risk of burns due to high temperatures!
The housing of the star motor and the handle on the placement head may
become very hot during continuous operation and in ambient temperature in
excess of 22 °C.
Be careful when touching the parts.
2
2
2
LASER RADIATION
Laser class 2
Acc. to IEC 60825-1:2014
Do not look into beam!
User manual SIPLACE X-Series 2 Operational safety
From software version 710.0 Edition 12/2016 2.2 Warning labels
69
2.2.8 Warning labels on the SIPLACE MultiStar CPP
2

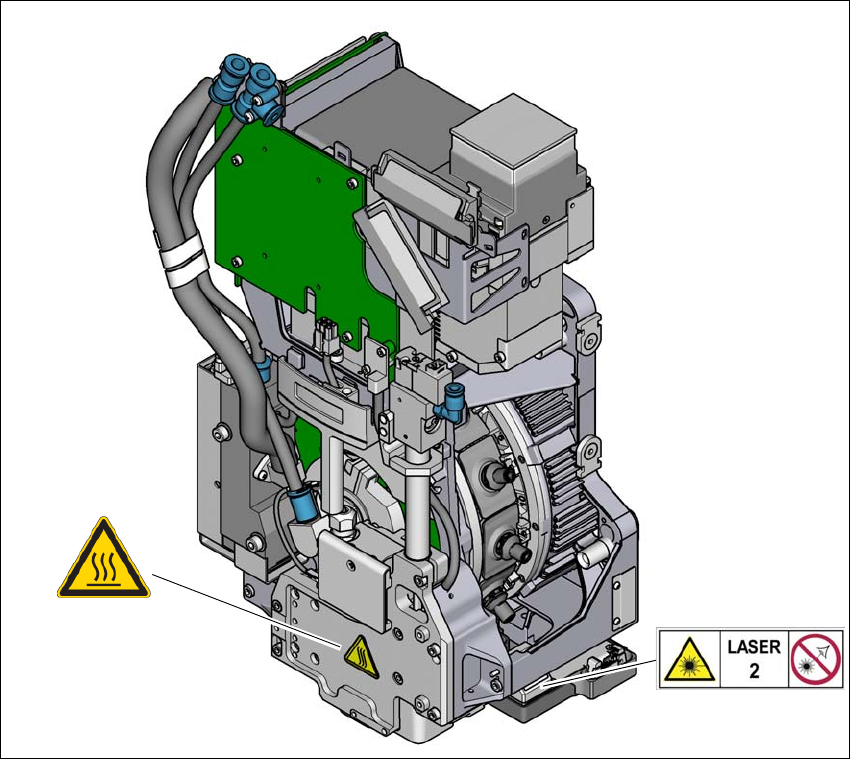

Fig. 2.2 - 11 Warning labels on the SIPLACE MultiStar CPP
(1) Temperature label, item no. 03031926-01
Item W laser class 2, item no. 03134118-01
(1)
W Laser class 2
2 Operational safety User manual SIPLACE X-Series
2.2 Warning labels From software version 710.0 Edition 12/2016
70
2.2.8.1 High temperatures on the SIPLACE CPP
2
1 in fig. 2.2 - 11, page 69 (quantity per SIPLACE CPP: 1)
2.2.8.2 Laser class 2 on the component sensor
2
W laser class 2 in fig. 2.2 - 11, page 69, item no. 03134118-01 (quantity per CPP: 1)
2
High temperatures on the SIPLACE CPP during continuous operation
Risk of burns due to high temperatures!
The Z drive (linear motor) can develop high surface temperatures during
continuous operation, if the ambient temperature is greater than 22°C.
Be careful when touching the parts.
2
2
2
LASER RADIATION
Laser class 2
Acc. to IEC 60825-1:2014
Do not look into beam!
