2 Operational safety User manual SIPLACE X-Series
2.2 Warning labels From software version 710.0 Edition 12/2016
74
2.2.11.2 Laser class 2 on the laser light barrier
2
W laser class 2 in fig. 2.2 - 11, page 69, item no. 03134118-01
(No: single conveyor 2, dual conveyor 4)
2
2
2
LASER RADIATION
Laser class 2
Acc. to IEC 60825-1:2014
Do not look into beam!
User manual SIPLACE X-Series 2 Operational safety
From software version 710.0 Edition 12/2016 2.3 Classification of camera systems
75
2.3 Classification of camera systems
2.3.1 Classification of the whole machine
2
2.3.1.1 Laser classification
The following modules are assigned to laser class 2:
2
The following modules are assigned to laser class 3B:
2
2.3.2 Classification of the camera systems
2
The operational machine as a whole is classified as laser class 2.
The laser classes are determined according to IEC 60825-1:2014.
Assembly Data
Component sensor on SpeedStar Maximum optical output power: < 1 mW
Wavelength: 635 nm
Component sensor on MultiStar Maximum optical output power: < 1 mW
Wavelength: 635 nm
Laser light barrier on PCB conveyor Maximum optical output power: < 1 mW
Wavelength: 650 nm
1D board barcode reader
(Datalogic DS1500)
Maximum optical output power: --
Wavelength: 658
Assembly Data
3D coplanarity laser module Maximum optical output power: 60 mW
Wavelength: 670 nm
See also section 6.10
3D coplanarity laser module,
page 379
.
PLEASE NOTE
The camera illumination system used has bright LEDs fitted. These are classified as risk
group 1, according to IEC 62741:2006.
Do not look into beam!
2 Operational safety User manual SIPLACE X-Series
2.4 Safety instructions for transporting the machine From software version 710.0 Edition 12/2016
76

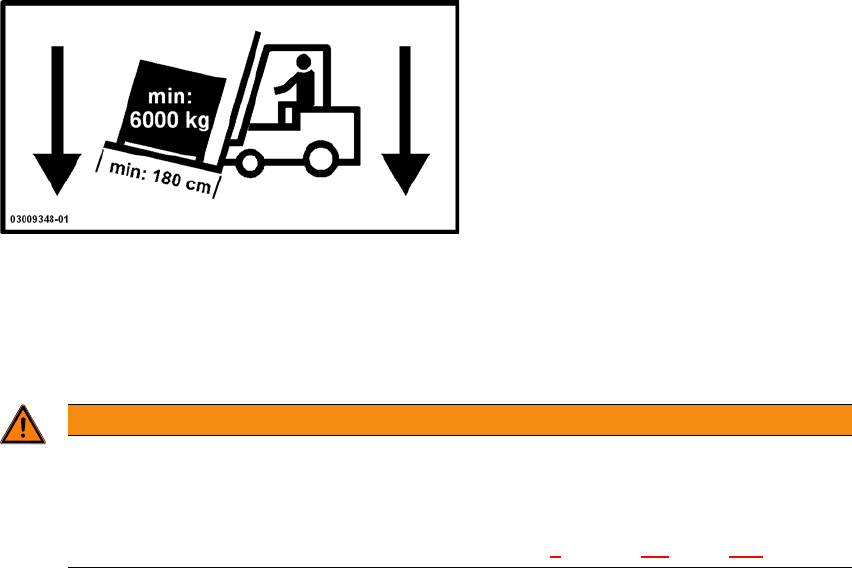

2.4 Safety instructions for transporting the machine
2
Use a fork-lift truck with the following specification to carry the machine:
Fork length: Min. 1800 mm
Carrying power: Min. 6,000 kg
Clear width between forks: Min. 350 mm 2
2
WARNING
Risk of tilting!
Risk of tilting, if the required specifications for the fork-lift truck are not observed.
Only use the specified fork-lift for transportation.
Transportation of the machine is described in chapter 4
, section 4.1, page 205.
