2 Operational safety User manual SIPLACE X-Series 2.6 Safety features From software version 710.0 Edition 12/2016 88 2.6.2 Hand guard on the board conveyor The hand guard on the PCB conveyor pr events you fr om re aching…
User manual SIPLACE X-Series 2 Operational safety
From software version 710.0 Edition 12/2016 2.6 Safety features
87
Function 2
If the protective cover is swung upwards, the power supply to the gantry axes will be immediately
interrupted. The gantry axes stop moving. The message "Close cover" is displayed on the screen.
Close the protective covers and press the START button (item 1 in fig. 2.6 - 2), to continue
placement.
2
Fig. 2.6 - 2 Position of start button (green) on the machine (example of SIPLACE X2 S / X3 S / X4 S shown)
(1) STOP button (black) on machine
(2) Start button (green) on the machine
(2)
(1)
2 Operational safety User manual SIPLACE X-Series
2.6 Safety features From software version 710.0 Edition 12/2016
88
2.6.2 Hand guard on the board conveyor
The hand guard on the PCB conveyor prevents you from reaching into the operating machine, in
the event that there is no input/output conveyor extension fitted.
If there is no input/output extension fitted to the input conveyor and/or the output conveyor, make
sure that a hand guard is fitted in its place. This means that a hand guard must be fitted to the
input conveyor of the first machine in a line and to the output conveyor of the last machine in a
line. If a SIPLACE X-Series machine is operated outside the line and without the input/output ex-
tension, make sure that the hand guard is fitted to the input conveyor and the output conveyor of
this machine.
2

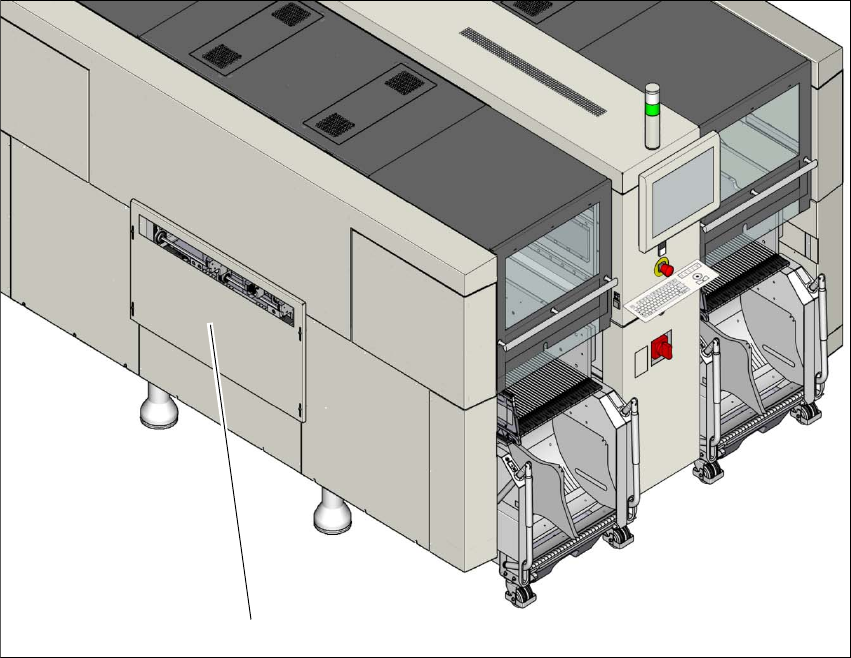

Fig. 2.6 - 3 Hand guard on the SIPLACE X4 S placement machine
(1) Hand guard
(1)
User manual SIPLACE X-Series 2 Operational safety
From software version 710.0 Edition 12/2016 2.6 Safety features
89
2
2
Fig. 2.6 - 4 Hand guard - inside and outside
(1) Hand guard - view from outside
(2) Hand guard - view from inside
(3) Slots on hand guard for height adjustment - outside
(4) Slots on hand guard for height adjustment - inside
Fit the hand guard (1) to the input conveyor and to the output conveyor.
Use the slots (3) to adjust the height on the outer plate for each product so that nobody can
reach into the board conveyor from below.
Use the slots (4) to adjust the height on the inner plate for each product so that nobody can
reach into the board conveyor from above.
Adjust the height so that the board with the components can be transported safely through
the conveyor system.
2
WARNING
DANGER OF CRUSHING!
If the hand guard is not fitted, reaching into the board conveyor could lead to injuries to
the arms and hands.
Operation of a SIPLACE X-Series S machine without an input/output extension is
only permitted with a hand guard fitted to the input and output conveyors.
The operating company is responsible for ensuring that the hand guard is fitted.
PLEASE NOTE
Observe the maximum height of the board with the highest component.
(1)
(2)
(2)
(3)
(4)
