2 Operational safety User manual SIPLACE X-Series 2.6 Safety features From software version 710.0 Edition 12/2016 92 2.6.3.2 Position of protective switches on the machine 2 Fig. 2.6 - 7 Position of protective switches o…
User manual SIPLACE X-Series 2 Operational safety
From software version 710.0 Edition 12/2016 2.6 Safety features
91
2
Fig. 2.6 - 6 Position of buttons and switches - view of PCB input side (example of SIPLACE X2 S / X3 S / X4 S
shown)
(1) Stop button (black)
(2) Start button (green)
(3) EMERGENCY STOP button
(4) Button for docking and undocking the component trolley at the respective location
(T) PCB transport direction
(3)
(1)
(4)
(2)
2 Operational safety User manual SIPLACE X-Series
2.6 Safety features From software version 710.0 Edition 12/2016
92
2.6.3.2 Position of protective switches on the machine
2

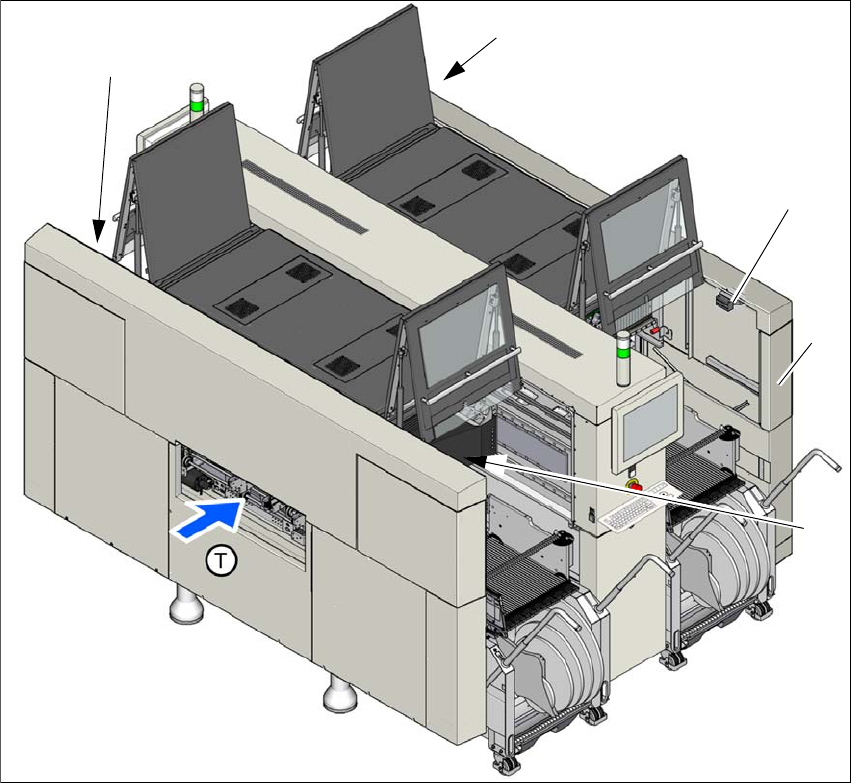

Fig. 2.6 - 7 Position of protective switches on the machine (example of SIPLACE X4i S shown)
(1) Protective cover switch, location 1
(2) Protective cover switch, location 2
(3) Protective cover switch, location 3
(4) Protective cover switch, location 4
(5) Example service flap with protective cover switch at location 2 (optional at all locations)
(T) PCB transport direction
(2)
(3)
(1)
(4)
(5)
User manual SIPLACE X-Series 2 Operational safety
From software version 710.0 Edition 12/2016 2.6 Safety features
93
2.6.3.3 Description of functions
Main switch in OFF position (see item 1 in fig.
2.6 - 5, page 90) 2
The main power switch disconnects the three phases L1, L2, and L3 from the power supply.
2
Main switch in ON position 2
When the main switch is switched to ON, the mains voltage is switched through and all AC/DC
converters are addressed.
The control computer starts and all supply voltages, with the exception of the intermediate circuit
voltages for the gantry axes (300 V-) and the star axes (160 V-), are made available internally.
Stop button, black (items 2 and 7 in fig. 2.6 - 5, page 90 and items 3 + 5 in fig. 2.6 - 6, page 91)2
These buttons are used to stop the machine.
Start button, green (items 3 and 6 in fig. 2.6 - 5, page 90 and items 2 + 4 in fig. 2.6 - 6, page 91)2
After switching on the main power switch you will be prompted to press the start button in order to
start the machine for placement jobs. The same prompt appears if you open the protective covers
or the press the EMERGENCY STOP button.
Press the start button for at least 200 ms, up to a maximum of 1500 ms, and then let go. The
machine is switched on when you let go of the button.
DANGER
Incorrect handling of the machine can therefore result in death or severe injury or con-
siderable damage to equipment.
The following components still carry potentially lethal voltages even if the main power
switch is switched off:
– Cable connection terminals L1, L2, and L3 of the S1 main power switch
– Main input terminal X95
– Service socket X98
– Safety cutoff (CSB) still live for 5 minutes after switching off the main switch.
– The color of all individual wires, which still carry electricity, even if the main power
switch is switched off, is orange.
Always follow the applicable accident prevention and DIN regulations (particularly
EN 60204, part 1 or IEC 60204, part 1) and the applicable regulations in your own
country.
The safety door to the power supply must ONLY be opened by appropriately quali-
fied and trained personnel.
