RV-2 PRODUCT SPECIFICATIONS
7
7-1-2. Optional Peripheral Software
This is a suite of software applications that provide various functions to support the operation of the RV-2-3D.
By connecting the TOPSS server with the devices and the terminal with the applicable function via a network,
the entire
RV-2-3D operations within the factory can be managed together.
Remote judgment
This function enables the operator to identify the parts that are judged by RV-2-3D and determined as NG
on any terminal other than the machine.
Remove judgment can be performed in the following two modes that share the same judgment screen and
operability.

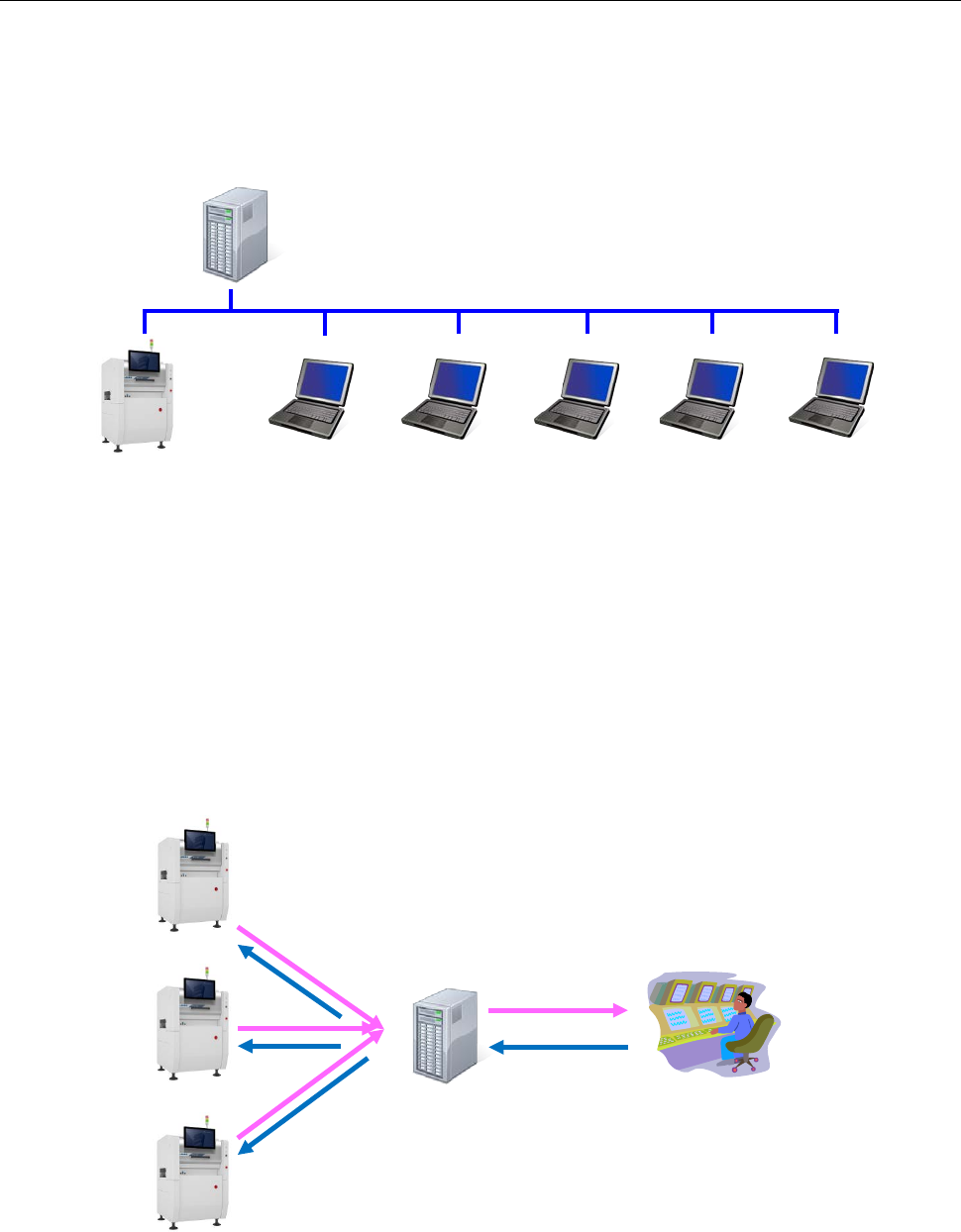

• CCC mode
Multiple RV-2-3D units can be connected to a single terminal to perform judgment.
RV-2-3D
RV-2-3D
RV-2-3D
TOPSS server
NG information
Judgment
result
TOPSS server
SPC
Offline editor
Remote
judgment
Repair station
Quality
Traceability
RV-2-3D
RV-2 PRODUCT SPECIFICATIONS
8
•

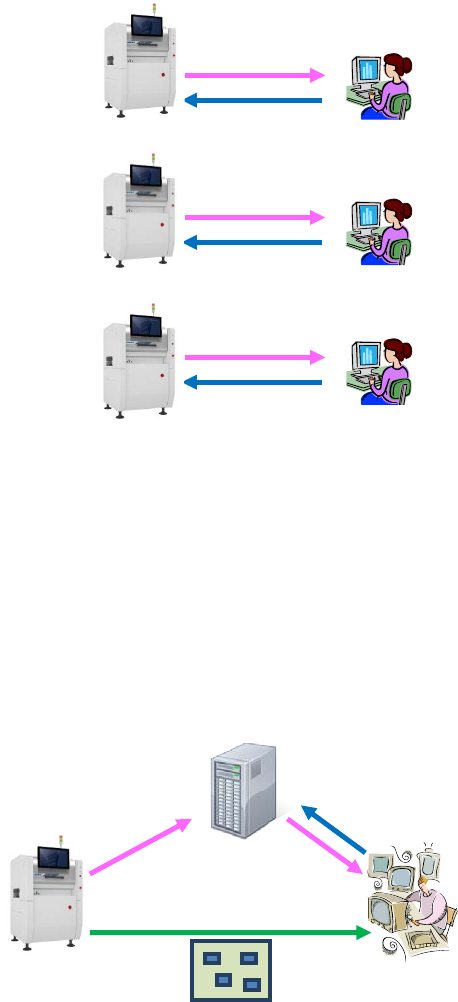

OLR mode
This function enables the operator to identify the parts that are judged by RV-2-3D and determined as
NG on any terminal other than the machine.
A single RV-2-3D unit and a single terminal can be connected to perform judgment for each board.
Repair station
This supports the offline repair based on the information of the board that was determined as NG by
RV-2-3D or in remote judgment.
Note also that all repair histories are stored on the server.
Judgment
result
NG
information
RV-2-3D
RV-2-3D
RV-2-3D
RV-2-3D
Repair one board at a time
TOPSS server
NG
Repair
information
Repair result
Repair station
RV-2 PRODUCT SPECIFICATIONS
9
SPC (statistics management)
By statistically analyzing a large amount of inspection data from the inspections performed by RV-2-3D
and managing the data trend, such as offsets, quality troubles can be prevented.
You can also use this as a tool to improve the process based on the statistically analyzed result.
Offline editor
You can use the image data loaded by the inspection machine to generate and repair the inspection data
offline.
The editor is an application created by modifying the source software to accommodate the use offline, and
thus, can be used in the same way.
Quality Traceability
The quality traceability function offers the ability to search for images, including images of qualified parts,
check the quality conditions (tracing), and check the status of unqualified boards in the case of
non-detection.
• Statistical information
• Analysis on excessive judgment
• Aggregation of unqualified items
• Production progress
• Process capability, etc.
TOPSS client
FTP server
Image save
TOPSS server
RV-2-3D
RV-2-3D
Offline editor
Data export
Data import
External storage
device (USB)
• Edit
• Create
