RV-2 PRODUCT SPECIFICATIONS
12
External transformer
This external transformer steps down the voltage when the voltage supplied to the equipment is 200V or
more.
The transformer is applicable to 3-phase AC 240V or 3-phase AC 380V to 430V.
Supports for long size board
The inspection area of the long size board is separated into two blocks for inspection.
Inspectable board size and conditions
Max. board width : 630mm
Board depth : 50mm to 300mm
Conditions : Additional sensors need to be installed to support the long size board.
Mark conditions
Prepare an alignment mark at two locations on the diagonal line of the board in each area where the
inspection area is separated into two areas.
<Appearance of external transformer>
<Outside dimensional drawing of external transformer>
Area 2 Area 1
RV-2 PRODUCT SPECIFICATIONS
13
8. System Requirements
System requirements for the optional peripheral software (Recommended)
* If using only for the remote judgment (OLR), the requirements for the server system software options
need to be satisfied since the server system software needs to be installed into the same PC.
Item
Specification
Operating
system
• Windows 7 Professional 32-bit, 64-bit
• Windows 8 Professional 32-bit, 64-bit
* The offline editor is supported only for 64-bit.
Processor 1 GHz or faster (2 GHz or faster is recommended for offline editor)
RAM 2 GB or more (4 GB or more is recommended for offline editor)
monitor SXGA (1280 x 1024) or higher (Full HD 1920 x 1080 recommended)
Network 100 Mbps Ethernet or faster (1 Gbps Ethernet recommended)
Others
.NET Framework 4.0
* Automatically installed during installation.
* Please contact us when using any configuration other than the above.
System requirements for the optional server software (Recommended)
* The peripheral software and server system software cannot be operated on the same PC. So, be sure to
prepare the separate PCs.
Item
Specification
Operating
system
• Windows 7 Professional 64-bit
• Windows 8 Professional 64-bit
• Windows Server 2008 64-bit
• Windows Server 2012 64-bit
Processor 1.4 GHzor faster
RAM 4 GB
monitor Super VGA (800 x 600) or higher
Network 100 Mbps Ethernet or faster (1 Gbps Ethernet recommended)
Others
.NET Framework 4.0
* Automatically installed during installation.
* Please contact us when using any configuration other than the above.
RV-2 PRODUCT SPECIFICATIONS
14

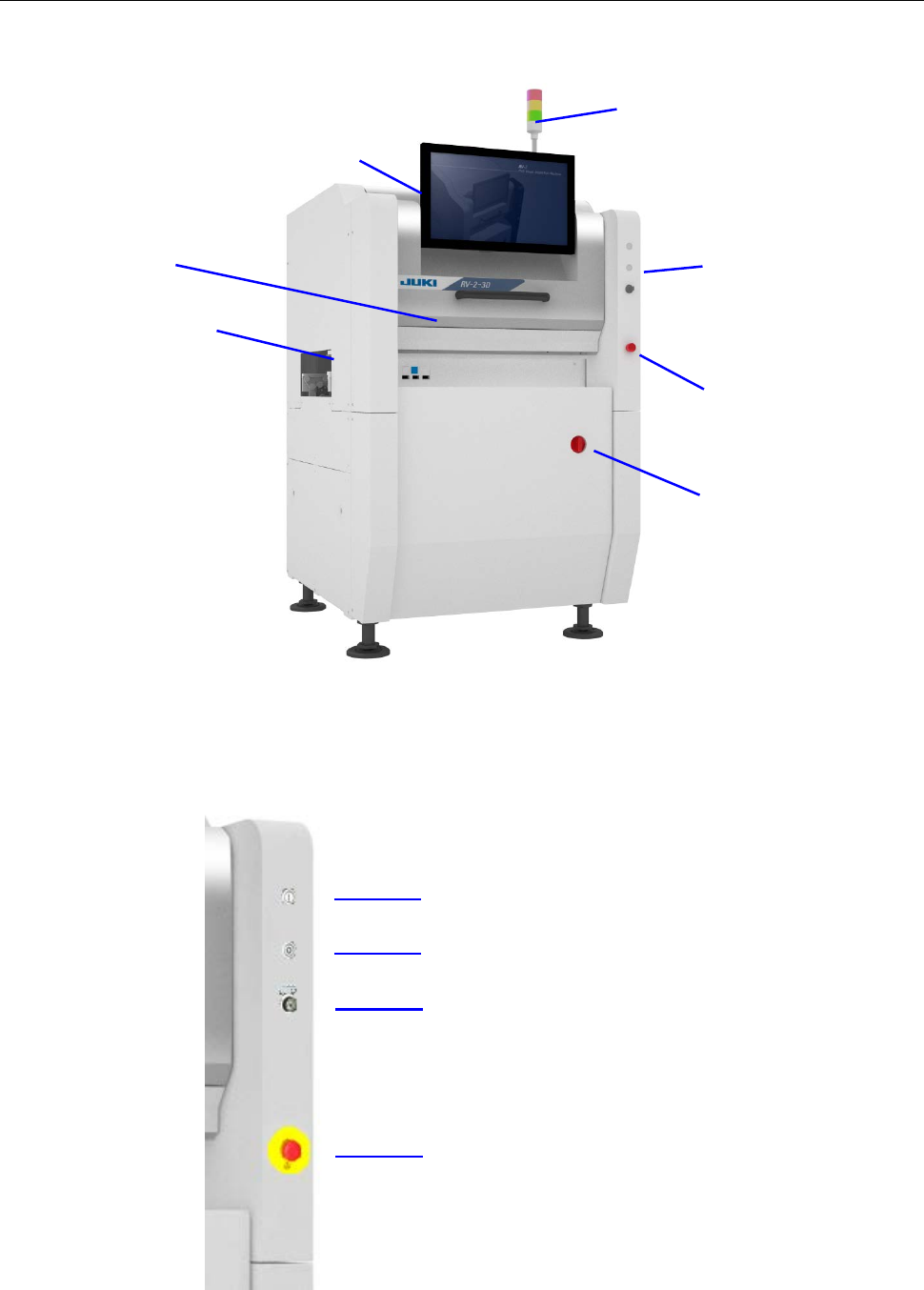

9. Appearance
Front
Operating switch
Signal tower
Display monitor
Board carry-in/
carry-out port
Power breaker
Emergency stop switch
Operating switch
Front cover
POWER ON switch/Power lamp
Interlock key switch
POWER OFF switch
Emergency stop switch
