2.1.1 Serial Number of Module Overview of X Series Machines
Maintenance Manual SIPLACE X Series 21
2
2 Overview of the Modules
Overview of the Modules
2.1
2.1 Overview of X Series Machines
Overview of X Series Machines
2.1.1
2.1.1 Serial Number of Module
Serial Number of Module

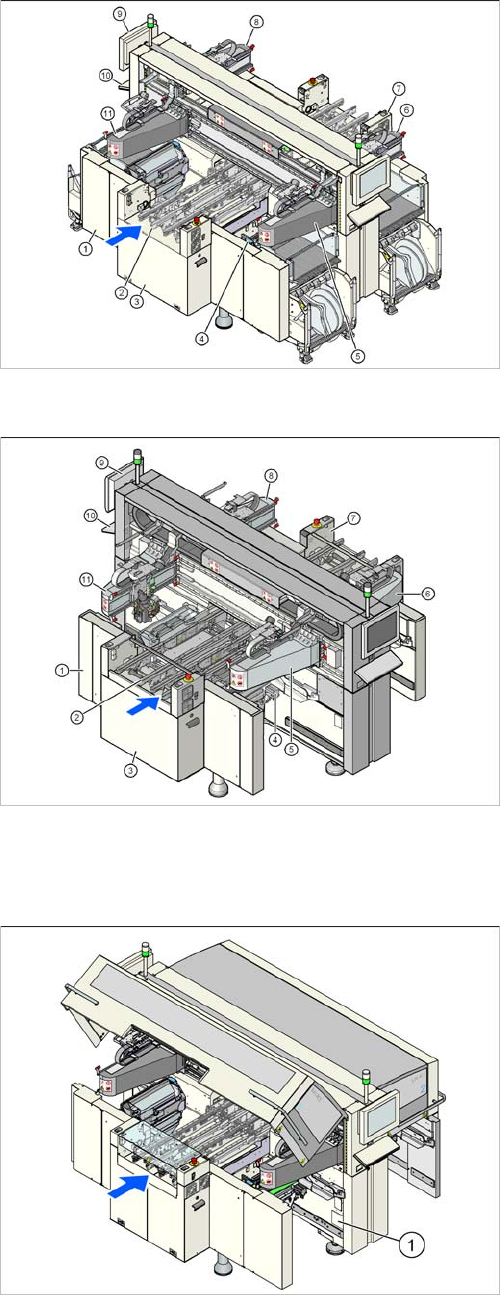

SIPLACE X4
1. Machine frame
2. PCB conveyor (flexible dual conveyor)
3. Extension kit on the PCB input side
4. Component trolley docking unit, tape cutter, used
tape channel (4x)
5. Gantry 1 with placement head
6. Gantry 2 with placement head
7. Extension kit on the PCB output side
8. Gantry 3 with placement head
9. Monitor (2x)
10. Keyboard (2x)
11. Gantry 4 with placement head
SIPLACE X4I
1. Machine frame
2. PCB conveyor (flexible dual conveyor)
3. Extension kit on the PCB input side
4. Component trolley docking unit, tape cutter, used
tape channel (4x)
5. Gantry 1 with placement head
6. Gantry 2 with placement head
7. Extension kit on the PCB output side
8. Gantry 3 with placement head
9. Monitor (2x)
10. Keyboard (2x)
11. Gantry 4 with placement head
The serial number of your placement machine can be
found on the typeplate. This is located on the inside of lo
-
cation 1, at the side (1).
