Maintenance Tasks for Base Machine 4.2.1 Tools, Consumables, Spare and Wear Parts
26 Maintenance Manual SIPLACE X Series
4.2
4.2 Maintenance Tasks for Base Machine
Maintenance Tasks for Base Machine
4.2.1
4.2.1 Tools, Consumables, Spare and Wear Parts
Tools, Consumables, Spare and Wear Parts
▪ Sheet of DIN A4 paper
▪ ESD wristband [00320279-xx]
▪ Vacuum cleaner with appropriate nozzle
4.2.2
4.2.2 Performing Maintenance Tasks
Performing Maintenance Tasks
4.2.2.1
4.2.2.1 Cleaning/Replacing the Filter on the Protective Covers (X4I Only)
Cleaning/Replacing the Filter on the Protective Covers (X4I Only)
Replacing the filters in the protective covers

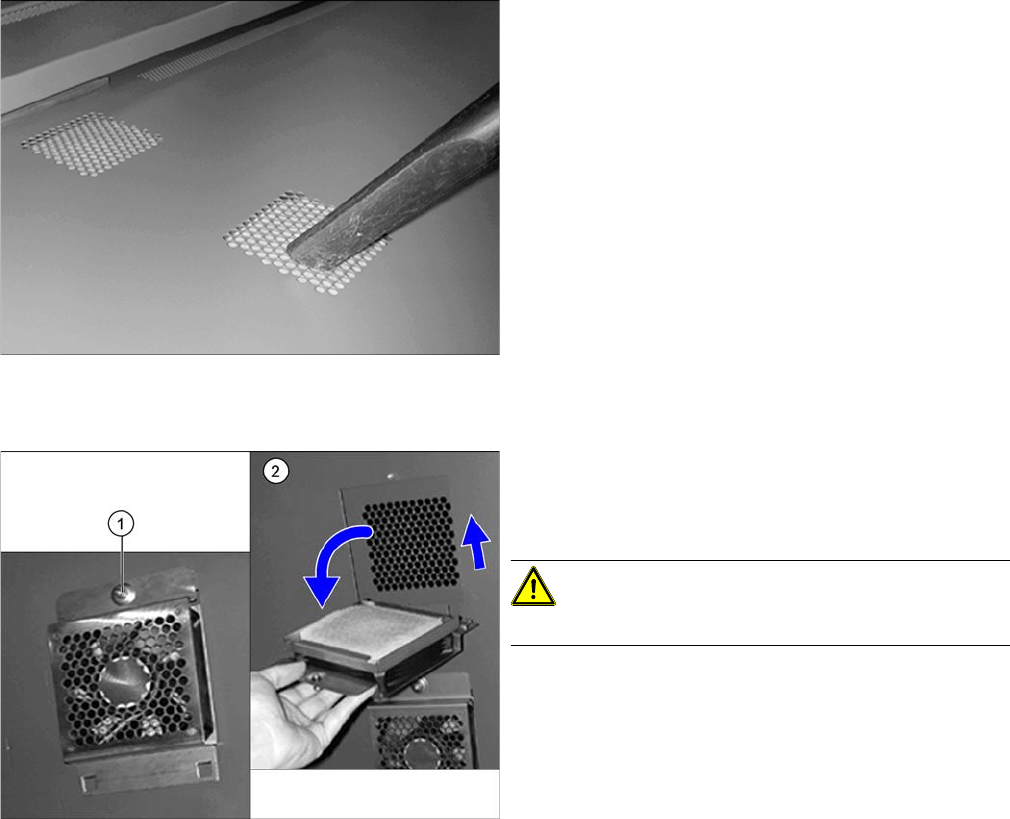

► Vacuum the filters in the protective covers of the
SIPLACE X4I from above.
► Check the filters for dirt.
If the filters are very dirty, replace with new ones. (see
below)
► Open the protective cover.
► Loosen the screw (1) on the upper side of the fan.
► Push the fan element up, and fold it down carefully.
CAUTION!
Take care not to damage the fan connection cable!
► Replace the filter with a new metal filter [03076892-
xx].
► Fit the fan and screw tight.
► Close the protective cover.
Minor Maintenance
4.2.2 Performing Maintenance Tasks Maintenance Tasks for Base Machine
Maintenance Manual SIPLACE X Series 27
4.2.2.2
4.2.2.2 Checking the Fan on the Covers and on the Machine Rucksack
Checking the Fan on the Covers and on the Machine Rucksack
➢ The machine needs to be switched on for this check.

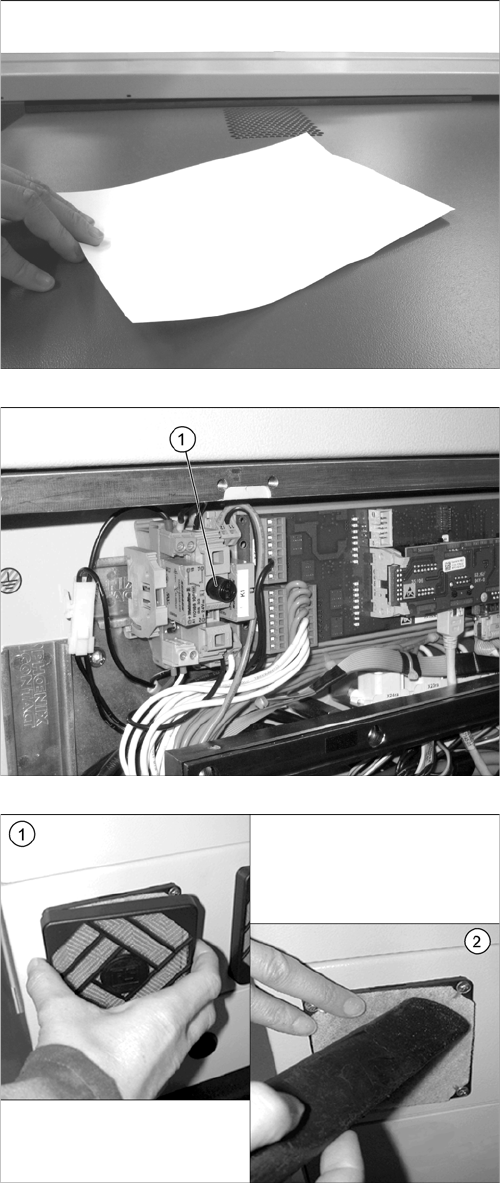

► Close the protective covers and press the Start button.
► Place a sheet of paper on the fan openings. This
sheet of paper should be noticeably held in place by
suction.
► If the sheet of paper is not held in place, check the
fuse F1 (1) for the voltage supply in the distributor at
location 4 and replace this if necessary. Check all
cover fans again.
If the fuse is OK, replace the defective fan
[03056479
-
xx].
► Repeat this check for all cover fans.
► (1) Remove the covers from the filters.
► (2) Use a suitable nozzle to vacuum the filters.
► Check the filters for dirt.
► If a filter is very dirty, replace with a new one.
► Repeat these tasks for all eight fans.
Minor Maintenance
Maintenance Tasks for Base Machine 4.2.2 Performing Maintenance Tasks
28 Maintenance Manual SIPLACE X Series

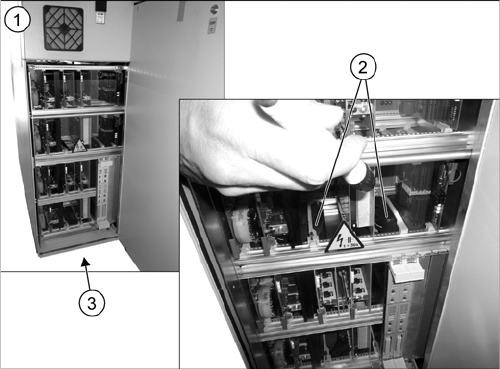

► Open the cover above the axis unit (1).
► Check the fan function (2) in the center of the axis
unit. Also check whether this still moves. Use a flash
-
light to help you, if necessary. If a fan is defective, re
-
place it.
► Check the function of the fan on the underside of the
axis unit (3) by holding your hand in front of the fan.
You should be able to feel a noticeable flow of air. If
the fan is defect, replace it.
► Now close the cover again.
► Repeat these steps for all axis units.
