Major Maintenance
5.3.3 Performing Maintenance Tasks Maintenance Tasks for the Component Docking Unit
Maintenance Manual SIPLACE X Series 45
5.3.3.5
5.3.3.5 Greasing the COT Insert
Greasing the COT Insert
5.3.3.6
5.3.3.6 Greasing the Locator Bearing on the Component Trolley for X Feeders
Greasing the Locator Bearing on the Component Trolley for X Feeders
5.3.3.7
5.3.3.7 Greasing the Centering Strip on the Component Trolley for X Feeders
Greasing the Centering Strip on the Component Trolley for X Feeders
NOTICE
Undocking many times
If the component trolley is frequently undocked, we recommend that you grease the engaging
pins.

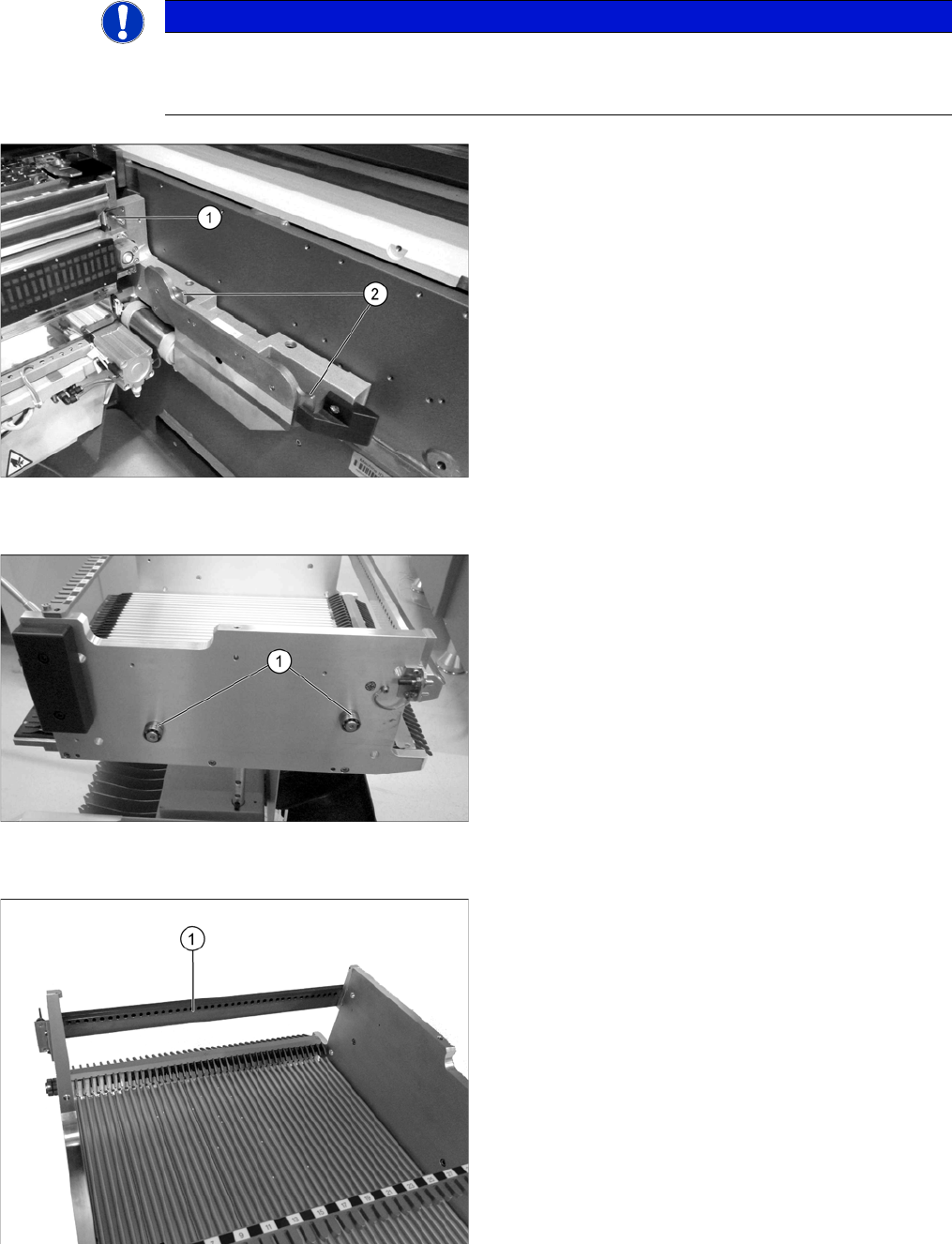

► Grease the engaging pin (1) with a SIPLACE clean
-
ing cloth.
► Grease the hooks (2) on the left and right of the com
-
ponent docking unit with a SIPLACE cleaning cloth.
► Repeat these tasks at all locations.
► Grease the rollers (1) (two per side) on the changeo
-
ver table with a SIPLACE cleaning cloth.
► Repeat these tasks at all component trolleys.
► Apply "Surface Shield oil spray" to a lint-free cloth
and then thinly oil the centering strip (1). Pay particu
-
lar attention to the centering holes.
Alternatively, you can also use a SIPLACE cleaning
cloth.
► Then wipe the centering strip with a lint-free cloth.
► Repeat these steps for all component trolleys and
manual tables.
Major Maintenance
Maintenance Tasks for the Component Docking Unit 5.3.3 Performing Maintenance Tasks
46 Maintenance Manual SIPLACE X Series
5.3.3.8
5.3.3.8 Greasing the Plunger Pins on the Component Trolley for S Feeders
Greasing the Plunger Pins on the Component Trolley for S Feeders
5.3.3.9
5.3.3.9 Removing and Preserving the Magnetic Strip on the Component Trolley for S Feeders
Removing and Preserving the Magnetic Strip on the Component Trolley for S Feeders
► Return the feeders to the feeder area.
NOTICE
Undocking many times
► Perform this task if the component trolley is undocked on a frequent basis.
► Dock out the component trolley.
► Greas the plunger pins (1) of the change over table
insertwith a brush and UNISILKON L250L.
► Grease the plunger pins (2) of the ODU connector on
the component trolley docking unit with a brush and
UNISILKON L250L.
► Dock in the component trolley once more.
► Clear the feeder area.
► Remove any loose components from the component
feeder table using the vacuum cleaner.
► (1) Use a whetstone to remove any bumps on the
magnetic rail.
► (2) Preserve the feeder area using a lint-free cloth
sprayed with WD40.
► Vacuum up any loose components from the tape con
-
tainer and remove any unwanted stickers and adhe
-
sive tape.
NOTICE
Pay attention to location and connection
► Make sure that each feeder is in the correct location and is connected properly.
Major Maintenance
5.4.1 Tools, Consumables, Spare and Wear Parts Maintenance Tasks for Optical Systems
Maintenance Manual SIPLACE X Series 47
5.4
5.4 Maintenance Tasks for Optical Systems
Maintenance Tasks for Optical Systems
5.4.1
5.4.1 Tools, Consumables, Spare and Wear Parts
Tools, Consumables, Spare and Wear Parts
▪ Microfiber cloth for cleaning optical assemblies
▪ ESD wristband [00320279-xx]
▪ Cotton gloves [00359087-xx]
5.4.2
5.4.2 Preparatory Steps
Preparatory Steps
► Switch off the machine, disconnect it from the power supply and secure it to prevent unauthorized
reactivation. Observe the instructions in section "1.2 Preparatory Work..." [ ➙ 12].
5.4.3
5.4.3 Performing Maintenance Tasks
Performing Maintenance Tasks
5.4.3.1
5.4.3.1 Cleaning the IC and FC Cameras
Cleaning the IC and FC Cameras
NOTICE
IC, FC camera
This cleaning procedure is the same for IC (type 33) and FC cameras (type 25).
CAUTION
Risk of cutting yourself on the glass disk!
► There is a risk of cutting your fingers along the edges of the glass disk.
► Wear cotton gloves as protection and avoid touching the edges. The cotton gloves are also
required for effective cleaning (to avoid fingerprints!).
CAUTION
Electrical components
Make sure that the electrical components are not live!
CAUTION
Do not get the upper sections mixed up.
The upper sections of the different cameras are coordinated with the specific lower sections
and may not be mixed up.
► Carefully lift the upper section (1) of the IC camera up
and off.
