Vision Teach Station User Manual 6 2nd camera option 11/2013 Edition 6.1 Vision teach station upgrade 139 6 Fig. 6.1 - 1 Assembly position for the two pillars
6 2nd camera option Vision Teach Station User Manual
6.1 Vision teach station upgrade 11/2013 Edition
138
6.1.4 Connecting two stationary cameras
If there is also a stationary camera (SST33, 36 or 25) used on the second pillar, the main power
supply and the CAN bus are plugged directly into the camera on the first pillar, rather than into the
base module. You will need cable kit 03040352 to do this.
First plug this cable kit into the second, additional camera following the instructions in section
5.1.1, page 119.
Fit the camera onto the second pillar following the instructions in section 5.1.2, page 123.
Then connect the cable 03040352-W1 to connector X5 on the camera on pillar 1. Connector
X5 is difficult to access while the housing cover is fitted.
To access the connector, you should ideally put the vision teach station on the floor and re-
move the dust cover (foam rubber) so that you can see in clearly from above. Connector X5 is
beneath connector X4, or, as shown in Fig. 5.1 - 2, page 120, to the right of X4. The connectors
X4 and X5 are interchangable.
Connect cable 03040352-W2 to connector X12 from cable kit 03040355 (see Fig. 5.1 - 2, page
120, bottom left).
Vision Teach Station User Manual 6 2nd camera option
11/2013 Edition 6.1 Vision teach station upgrade
139
6

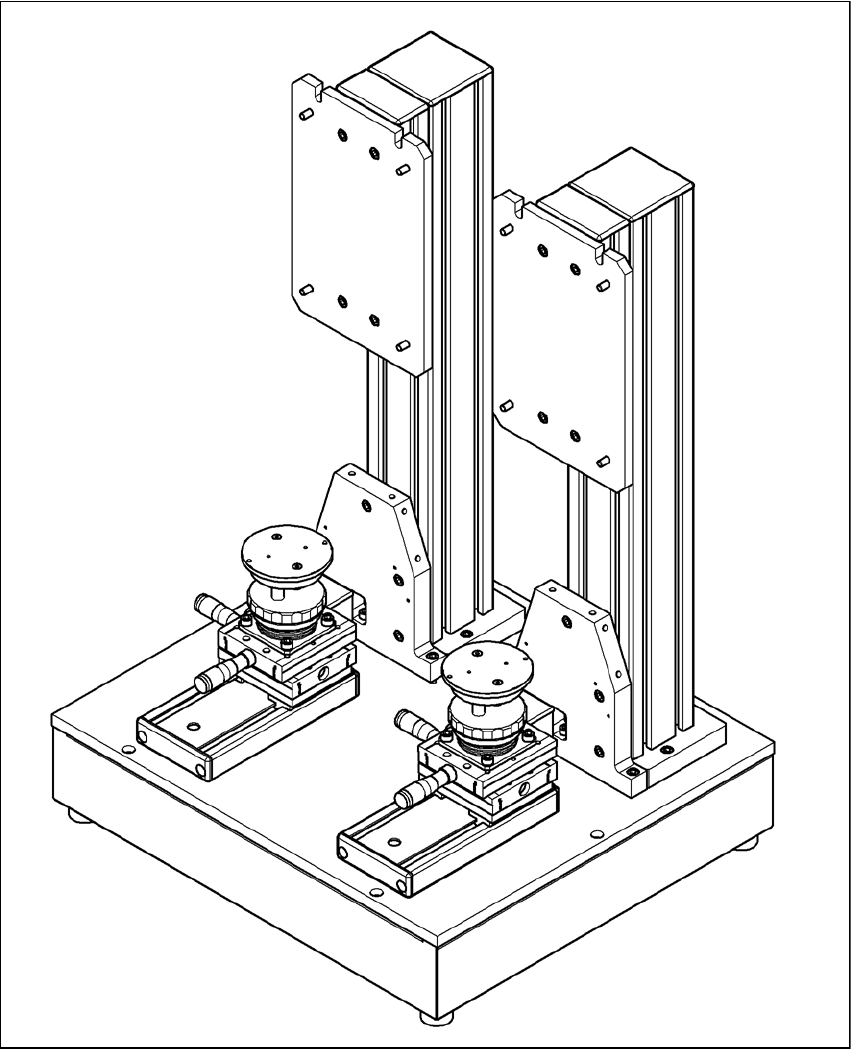

Fig. 6.1 - 1 Assembly position for the two pillars
7 Software Vision Teach Station User Manual
6.1 Vision teach station upgrade 11/2013 Edition
140
7 Software
NOTE 7
When we supply a vision teach station, the software is already fully installed on the computer.
The computer can be started up and used immediately. All the CD-ROMs needed for the installa-
tion are supplied as standard.
CAUTION 7
As of the 5.0.1 version, the vision teach station software additionally supports Windows 7, 32-bit
and 64-bit. Please note, that the old CAN card with the green CAN3 plug (item no. 03052590-xx)
does NOT support 64-bit operating systems! For this the new PowerCAN-II CAN card
(item no. 03079973-xx) is required .
