Vision Teach Station User Manual 11 Measuring components 11/2013 Edition 11.1 Preparing components for the measurement 177 11 Fig. 1 1.1 - 1 Base module - Placing the component on the component support (1) Magnetic switc…

11 Measuring components Vision Teach Station User Manual

11.1 Preparing components for the measurement 11/2013 Edition

176

PLEASE NOTE: 11

It is very important to accurately set the distance between the component and the camera,

otherwise the component cannot be mapped correctly on the camera, i.e. the shape of the

image will not correspond exactly to the shape of the component. If the distance is wrong, the

component will appear too large or too small. The geometric description will not tally with the

actual component. 11

Vision Teach Station User Manual 11 Measuring components

11/2013 Edition 11.1 Preparing components for the measurement

177

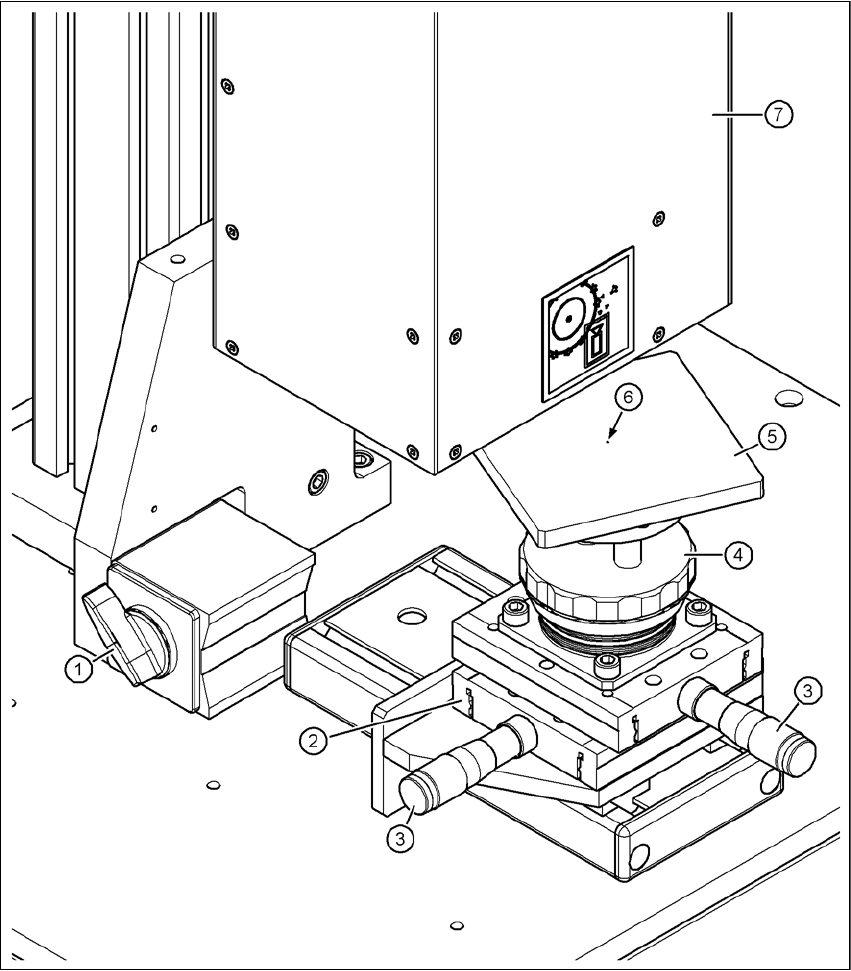

Fig. 11.1 - 1 Base module - Placing the component on the component support

(1) Magnetic switch

(2) Positioning unit

(3) Micrometer screw for positioning the component support

(4) Adjusting ring for adjusting the height of the component support

(5) Component support, rotating, for optimum angular alignment during the measurement

(6) Centering fiducial on the component support

(7) Component camera

11 Measuring components Vision Teach Station User Manual

11.1 Preparing components for the measurement 11/2013 Edition

178

 Push the positioning unit (item 2 in Fig. 11.1 - 1, page 177) until the end stop is under the

camera.

 Lock the positioning unit (item 2 in Fig. 11.1 - 1, page 177) using the magnetic switch (item 1

in Fig. 11.1 - 1, page 177)

 Check the camera image on the monitor and position the middle of the component at the

camera center point using the micrometer screw (item 3 in Fig. 11.1 - 1, page 177).

 If necessary, turn the component so that the outer edges run parallel to the edge of the image.

Fig. 11.1 - 2 Setting the focus point with the adjustment guide
