Retrofit Instructions: Stopper for ASE SIPLACE HS-60 (special design)
11/2005 Edition
25

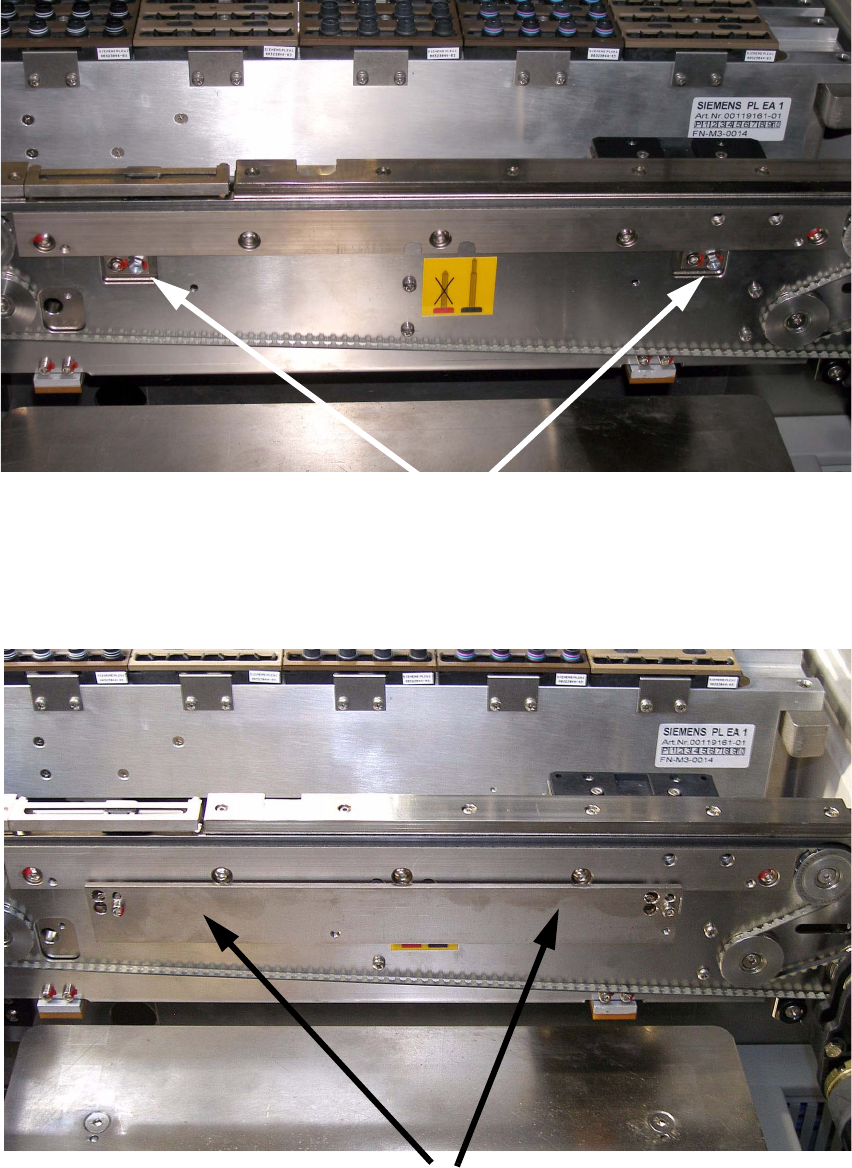

: Screw the spacer into the holes that are now exposed.
2
2
: Fit the adapter plate onto the spacers.
2
Spacers
Adapter plate
Retrofit Instructions: Stopper for ASE SIPLACE HS-60 (special design)
11/2005 Edition
26

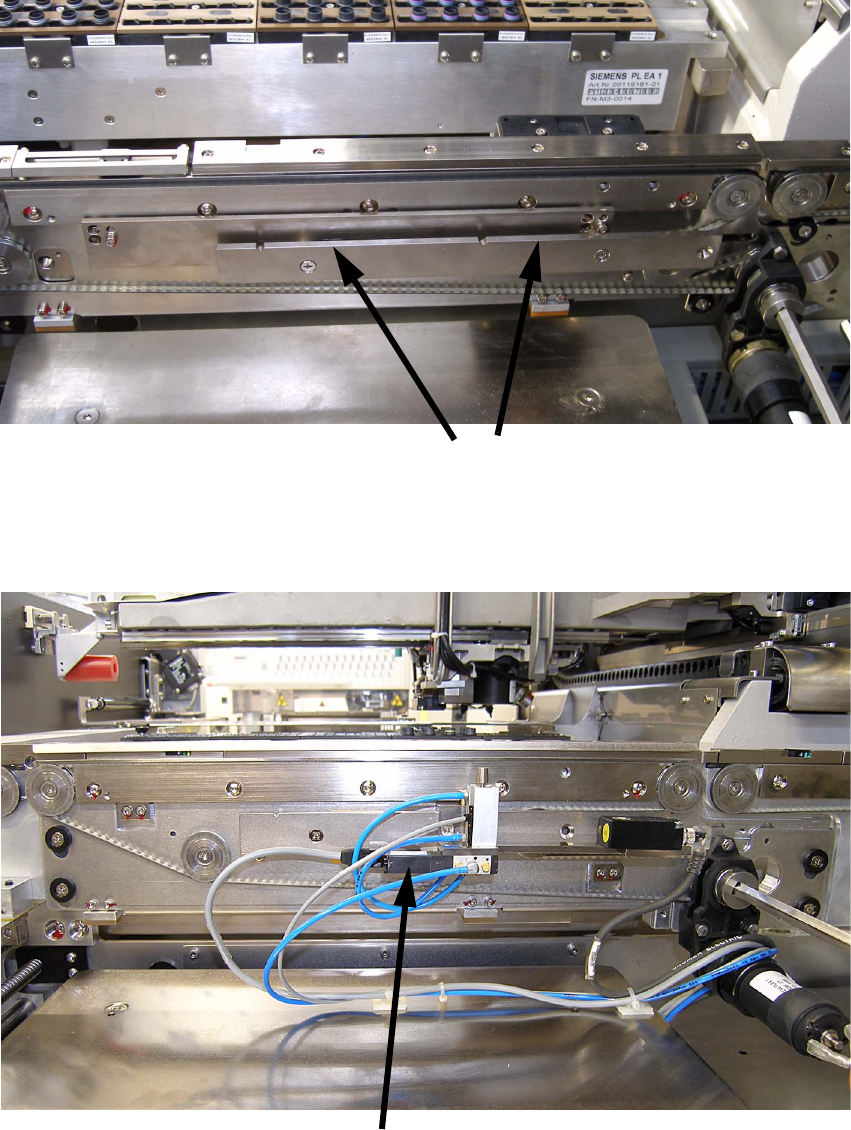

: Fit the assembly rail onto the adapter plate. Use the M4 x 10 mm countersunk head screws.
2
: Push the stopper module onto the assembly rail and set it to the appropriate PCB length in one
of the two notches.
2
Assembly rail
Stopper module can be engaged in two positions
Retrofit Instructions: Stopper for ASE SIPLACE HS-60 (special design)
11/2005 Edition
27
2.7.2 HS-60 without pressure sensor on the conveyor
: Remove the black spacers.
2
2
: Fix the assembly rail with spacer washers and black spacers using the M4 x 16 mm counter-
sunk head screws on the fixed conveyor side wall.
The remaining steps are as described for installing the stopper with pressure sensor on the con-
veyor. 2
2
2
2
2
2
2
2
2
2
Spacer
