Retrofit Instructions: Stopper for ASE SIPLACE HS-60 (special design)
11/2005 Edition
27
2.7.2 HS-60 without pressure sensor on the conveyor
: Remove the black spacers.
2
2
: Fix the assembly rail with spacer washers and black spacers using the M4 x 16 mm counter-
sunk head screws on the fixed conveyor side wall.
The remaining steps are as described for installing the stopper with pressure sensor on the con-
veyor. 2
2
2
2
2
2
2
2
2
2
Spacer
Retrofit Instructions: Stopper for ASE SIPLACE HS-60 (special design)
11/2005 Edition
28

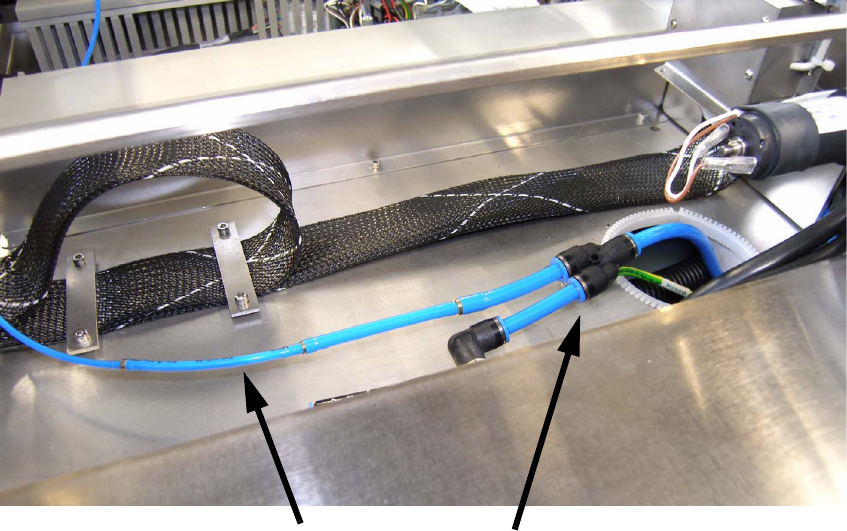

2.8 Compressed air connection
: Connect the compressed air connection to the compressed air supply on the machine's inter-
mediate conveyor. Use the Y-shaped distributor to do this.
2
2
2
2
2
2
2
2
2
2
2
2
Y-piece for connecting the compressed air for the stopper module
Retrofit Instructions: Stopper for ASE SIPLACE HS-60 (special design)
11/2005 Edition
29
2.9 Connecting the signal wires
: Remove the cover over the conversion board on the intermediate belt.
2
2
2
2
2
2
2
2
2
2
2
2
Conversion board cover
