PSA Kit for 8/12/16mm S feeder modules 2 A ssembly in structions PSA Kit for 8/12/16mm S feeder modules 12/2006 Edition 21 2.4 12 / 16 mm t ape feeder module : T ake the base from the retrofit kit and screw on the approp…
2 Assembly instructions PSA Kit for 8/12/16mm S feeder modules PSA Kit for 8/12/16mm S feeder modules
12/2006 Edition
20
2.3 Safety instructions
DANGER
The safety instructions from the “Operational safety” chapter of the user manual and service ma-
nual take precedence over these instructions. 2
PSA Kit for 8/12/16mm S feeder modules 2 Assembly instructions PSA Kit for 8/12/16mm S feeder modules
12/2006 Edition
21
2.4 12 / 16 mm tape feeder module

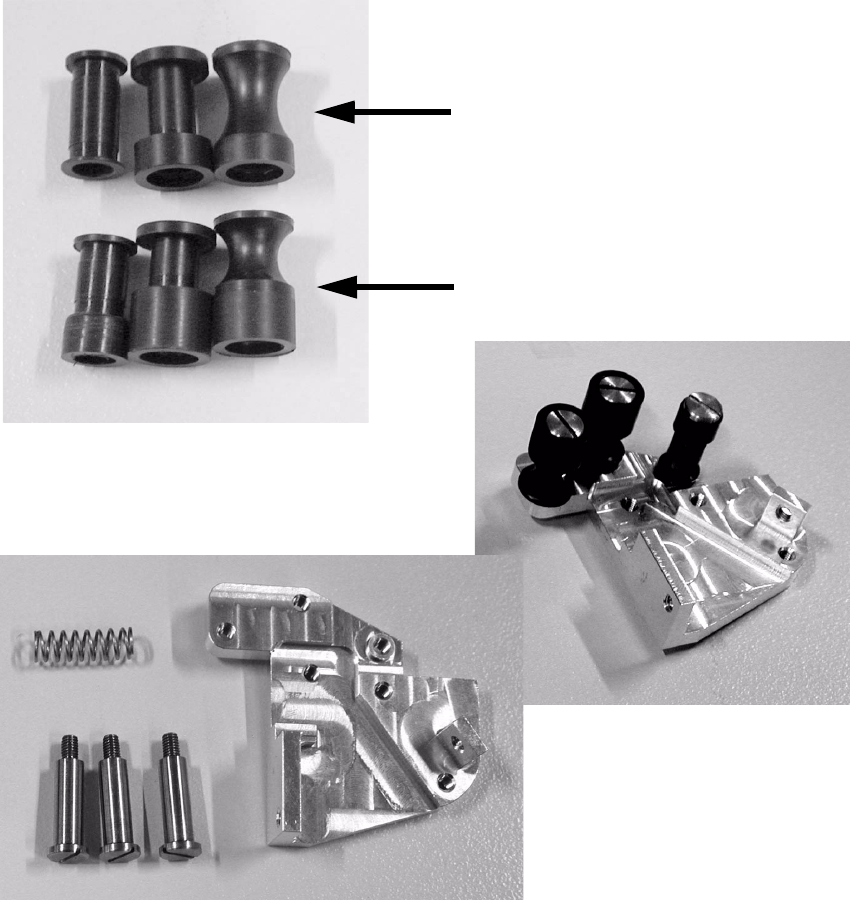

: Take the base from the retrofit kit and screw on the appropriate rollers (3 slotted-head screws):
2
2
2
2
2
2
Rollers for 16 mm feeder module
Rollers for 12 mm feeder module
2 Assembly instructions PSA Kit for 8/12/16mm S feeder modules PSA Kit for 8/12/16mm S feeder modules
12/2006 Edition
22

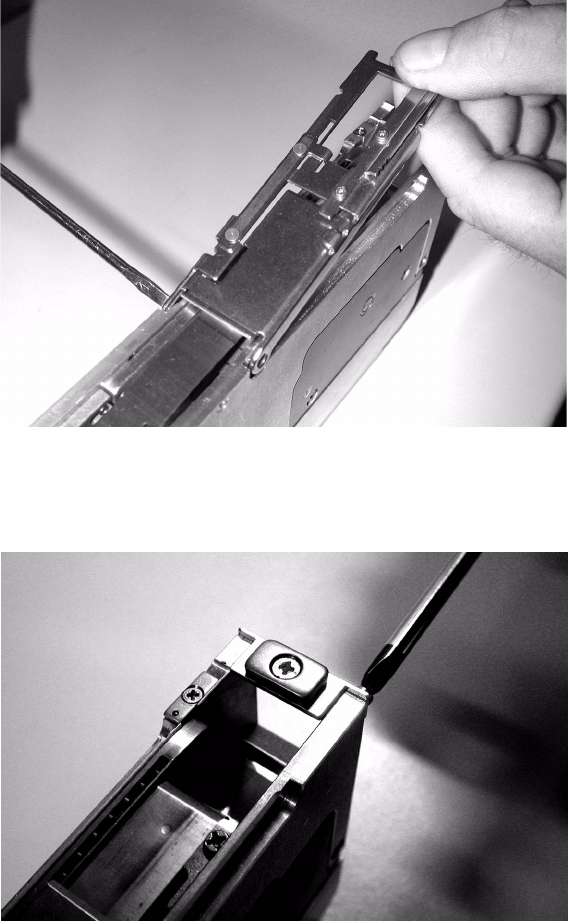

: Place the feeder module to be retrofitted and the retrofit kit on a clean surface.
: Remove the pick-up window and the cover strip take-up edge (2 slotted-head screws).
2
2
: Loosen the left-hand screw on the lock in order to detach the lock from the backing plate.
2
2
2
2
2
