5 14 7 18 13 12 14 7 14 11 6 19 8 17 9 14 14 15 15 16 3 10 2 20 4 1 14 Cutter Section KMG-1705 9-3 Cover Distinction 5 14 7 18 13 12 14 7 14 11 6 19 8 17 9 14 14 15 15 16 3 10 2 20 4 1 14 Safety Cover Assy NO Parts_No. P…
30
31
27
4
5
1
2
21
29
23
10
17
8
10
6
11
18
29
29
25
28
11
28
29
29
16
12
29
25
3
13
15
19
28
27
29
10
25
28
8
18
23
16
12
10
28
14
15
29
25
9
7
7
26
20
24
22
22
Slope 24 L/R Assy
Cutter Section
KMG-1705
9-2
Slope Distinction
30
31
27
4
5
1
2
21
29
23
10
17
8
10
6
11
18
29
29
25
28
11
28
29
29
16
12
29
25
3
13
15
19
28
27
29
10
25
28
8
18
23
16
12
10
28
14
15
29
25
9
7
7
26
20
24
22
22
NO
Parts_No.
Parts_Name
Q_ty
Remarks
Compati
Revision_No._date
1
KMG-M3TA2-00
SLOPE 24 L ASSY.
1
<Preset> Front-1 bank (F1 / front-left)
2
KMG-M3TA2-10
SLOPE 24 R ASSY.
1
<Preset> Front-2 bank (F2 / front-right)
3
KMG-M3TV0-00
VALVE CUTTER ASSY.
1
<Preset> front side : for actuating (cutter open/close) F1 & F2
4
KMG-M3TA2-00
SLOPE 24 L ASSY.
1
<OP> Rear-1 bank (R1 / rear-right)
5
KMG-M3TA2-10
SLOPE 24 R ASSY.
1
<OP> Rear-2 bank (R2 / rear-left)
6
KMG-M3TV0-00
VALVE CUTTER ASSY.
1
<OP> rear side : for actuating (cutter open/close) R1 & R2
7
$AN10-01
JOINT
2
8
$AUK8
JOINT
2
9
$TL8-02
JOINT
1
10
KLC-M11FA-00
BOLT,BUTTON HEAD
8
11
KMG-M3T21-00
COVER UPR.24R ASSY.
2
12
KMG-M3T24-01
COVER UPR.24F ASSY.
2
13
KMG-M3T2B-00
DUCT,CUTTER L
1
14
KMG-M3T2C-00
DUCT,CUTTER R
1
15
KMG-M3T2D-00
STAY,DUCT
2
16
KMG-M3T2E-00
STAY,DUCT R
2
17
KMG-M3T2G-00
BRKT.,JOINT
1
18
KMG-M3T2H-00
BRKT.,HOSE
2
19
KMG-M3T2J-00
BRKT.,JOINT
1
20
KMG-M3TV1-00
VALVE,CUTTER
1
YV031(front), YV033(rear) : CUT OP(open) / CUT CL(close)
21
KMG-M3TV2-00
BRKT.,VALVE
1
22
KMG-M3TV3-00
JOINT
2
23
90K41-001410
LABEL,WARNING
2
"Cut hazard. Keep hands clear." message & pictogram
24
91312-03020
BOLT,HEX.SOCKET HEAD
2
25
91312-05010
BOLT,HEX.SOCKET HEAD
8
26
91312-06012
BOLT,HEX.SOCKET HEAD
2
27
92902-04600
WASHER, PLAIN
4
28
98502-04006
SCREW, PAN HEAD
12
29
98902-04006
SCREW, BINDING HEAD
18
30
KMG-M3T20-00
COVER UPR.24 ASSY.
1
31
KMG-M3T20-10
COVER UPR.24 ASSY.
1
5
14
7
18
13
12
14
7
14
11
6
19
8
17
9
14
14
15
15
16
3
10
2
20
4
1
14
Cutter Section
KMG-1705
9-3
Cover Distinction
5
14
7
18
13
12
14
7
14
11
6
19
8
17
9
14
14
15
15
16
3
10
2
20
4
1
14

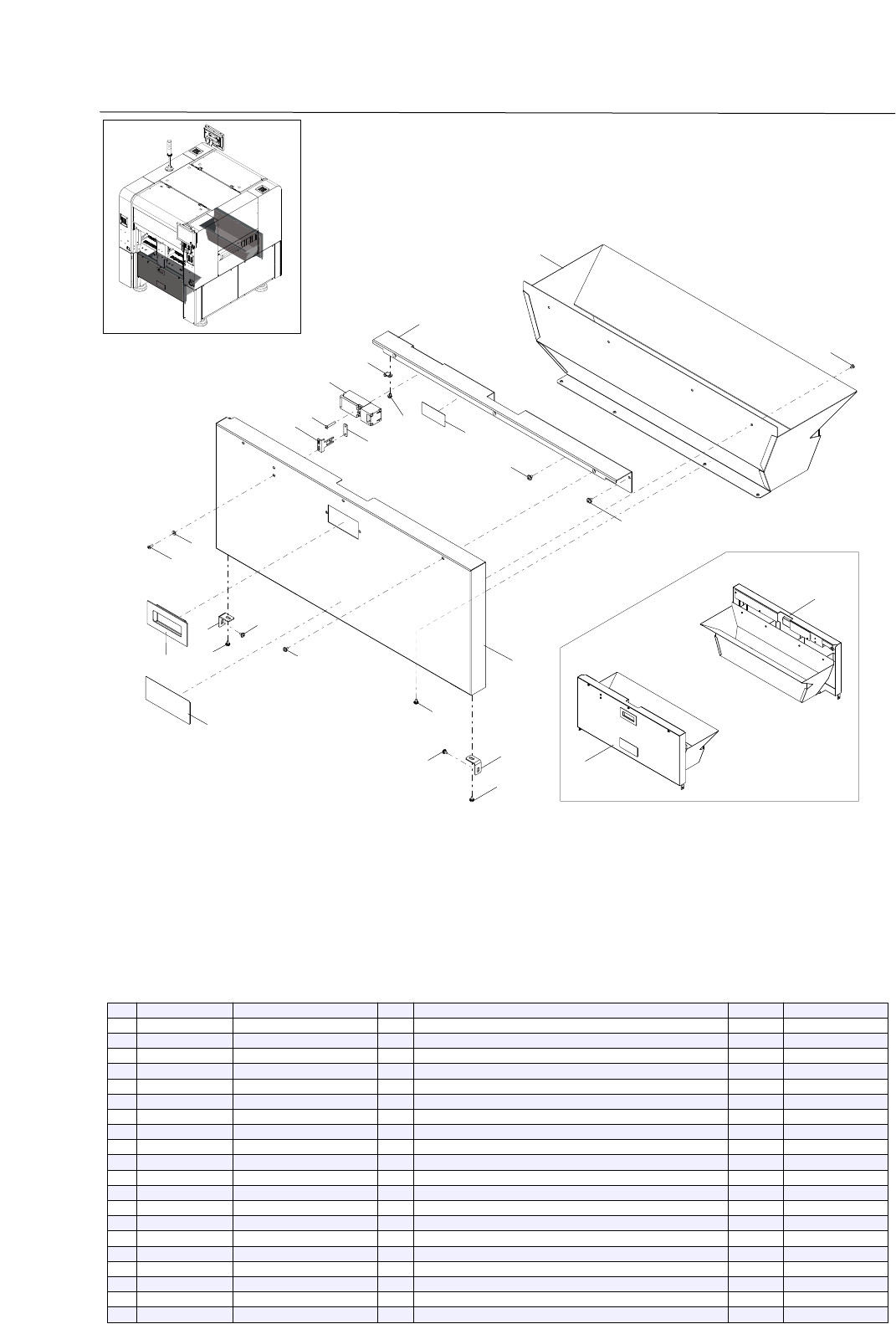

Safety Cover Assy
NO
Parts_No.
Parts_Name
Q_ty
Remarks
Compati
Revision_No._date
1
KMG-M3TA3-00
SAFETY COVER ASSY.
1
<Preset> front side
2
KMG-M3TA3-00
SAFETY COVER ASSY.
1
<OP> rear side
3
KGS-M1360-00
BOLT
2
M4*L10 : tamper prevention
4
KHU-M1117-00
PULL
1
5
KHY-M11C2-42
DUCT 2
1
6
KLW-M5126-C0
SAFETY SW UNIT ASSY
1
SQ105 : CUTTER (front) / SQ107 : CUTTER (rear)
7
KJJ-M11C8-00
BRKT. ,CUTTER COVER
2
8
KJJ-M11C9-00
PLATE, NUT
1
9
KJJ-M5127-00
SAFETY SWITCH KEY
1
10
KMG-M11C6-00
COVER,TAPE CUTTER
1
11
KMG-M1325-00
BRKT.,SW.
1
12
$NK-3N
NYLON CLIP
1
13
90990-11J003
SCREW, PAN HEAD W/W
1
14
90990-12J001
SCREW, BIN. HEAD W/W
11
15
90990-12J007
SCREW, BIN. HEAD W/W
4
16
92902-04200
WASHER, PLAIN
2
17
90990-06J014
BOLT,BUTTON HEAD
2
M4*L25 : tamper prevention
18
98902-04006
SCREW, BINDING HEAD
4
19
90K41-001260
LABEL,WARNING
1
"Do not tamper with safety cover switch." message & pictogram
20
90K41-001410
LABEL,WARNING
1
"Cut hazard. Keep hands clear." message & pictogram
27
15
17
28
13
22
26
26
31
21
14
1
20
18
19
1
12
30
29
3
30
29
16
26
11
11
6
24
5
32
4
10
7
2
9
32
8
33
25
25
32
23
25
32
32
34
27
15
17
28
13
22
26
26
31
21
14
1
20
18
19
1
12
30
29
3
30
29
16
26
11
11
6
24
5
32
4
10
7
2
9
32
8
33
25
25
32
23
25
32
32
34

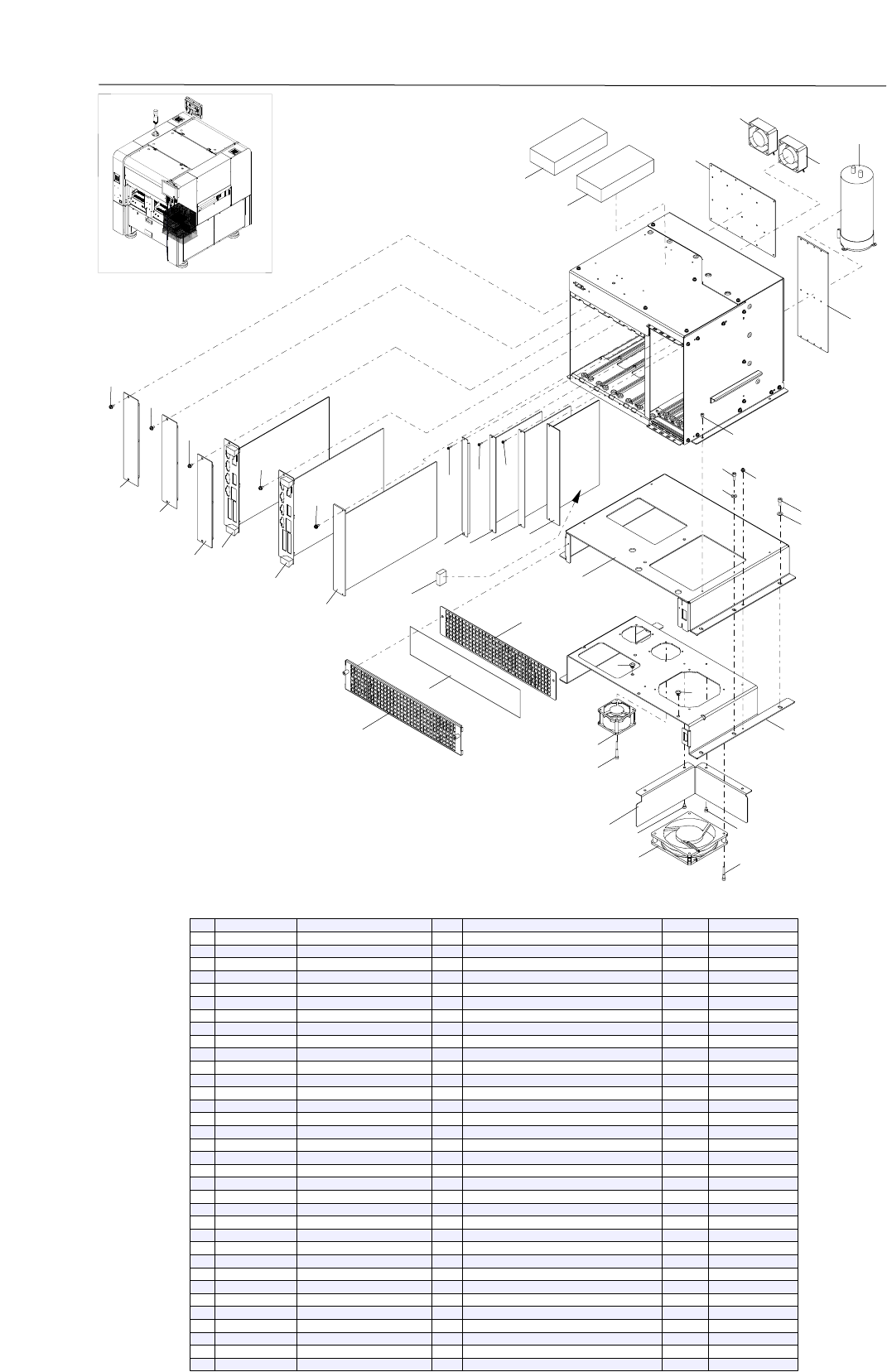

Controller
Controller Section
KMG-1706
10-1
NO
Parts_No.
Parts_Name
Q_ty
Remarks
Compati
Revision_No._date
1
KJJ-M412B-00
CLAMP 2
4
2
KKE-M4141-00
DUMMY PANEL SYS
1
3
KLA-M4250-01
BACKPLANE BOARD ASSY
1
4
KLA-M441H-20
VISION BOARD ASSY
1
VISION1
5
KLA-M4530-20
REMOTE IF BOARD ASSY
1
6
KLA-M5303-01
SW POWER DC12
1
7
KLA-M5303-10
SW POWER DC5
1
8
KLA-M5840-27
SERVO BOARD ASSY
1
SERVO1
9
KLR-M4111-00
PANEL,DUMMY
1
<Preset> in case of Non-"sATS15"
10
KLA-M5840-36
SERVO BOARD ASSY
1
<OP> in case of "sATS15" installed : SERVO2
11
KLR-M4111-00
PANEL,DUMMY
2
12
KLV-M4131-00
BASE,C/R BOX
1
13
KLV-M4132-00
BRKT.,FAN
1
14
KLV-M4133-00
GUIDE,FLOW 2
1
15
KLV-M4134-00
COVER,FILTER 1
1
16
KLV-M4135-00
COVER,FILTER 2
1
17
KLV-M4136-00
FILTER
1
18
KLW-M4186-10
FAN MOTOR ASSY
1
CR FAN4
19
KLW-M4186-20
FAN MOTOR ASSY
1
CR FAN5
20
KLW-M4510-00
MOTHER BOARD ASSY
1
21
KLW-M53L6-00
FAN MOTOR ASSY.
1
CR FAN2
22
KLW-M53M4-00
FAN MOTOR ASSY.
1
CR FAN6
23
KLW-M5880-00
CONVERTER BOARD ASSY
1
24
KMG-M4209-00
SYSTEM UNIT ASSY
1
25
90166-12JA10
SCREW, PAN HEAD
4
26
91312-04006
BOLT,HEX.SOCKET HEAD
6
27
91312-04030
BOLT,HEX.SOCKET HEAD
4
28
91312-04040
BOLT,HEX.SOCKET HEAD
4
29
91312-05012
BOLT,HEX.SOCKET HEAD
5
30
92902-05200
WASHER, PLAIN
5
31
97602-04306
SCREW,PAN HEAD W/W
2
32
97602-04308
SCREW,PAN HEAD W/W
12
33
KHL-M445E-00
CAP1,11000uF
1
34
KLA-M4255-10
FLASH DISK 4G
1
