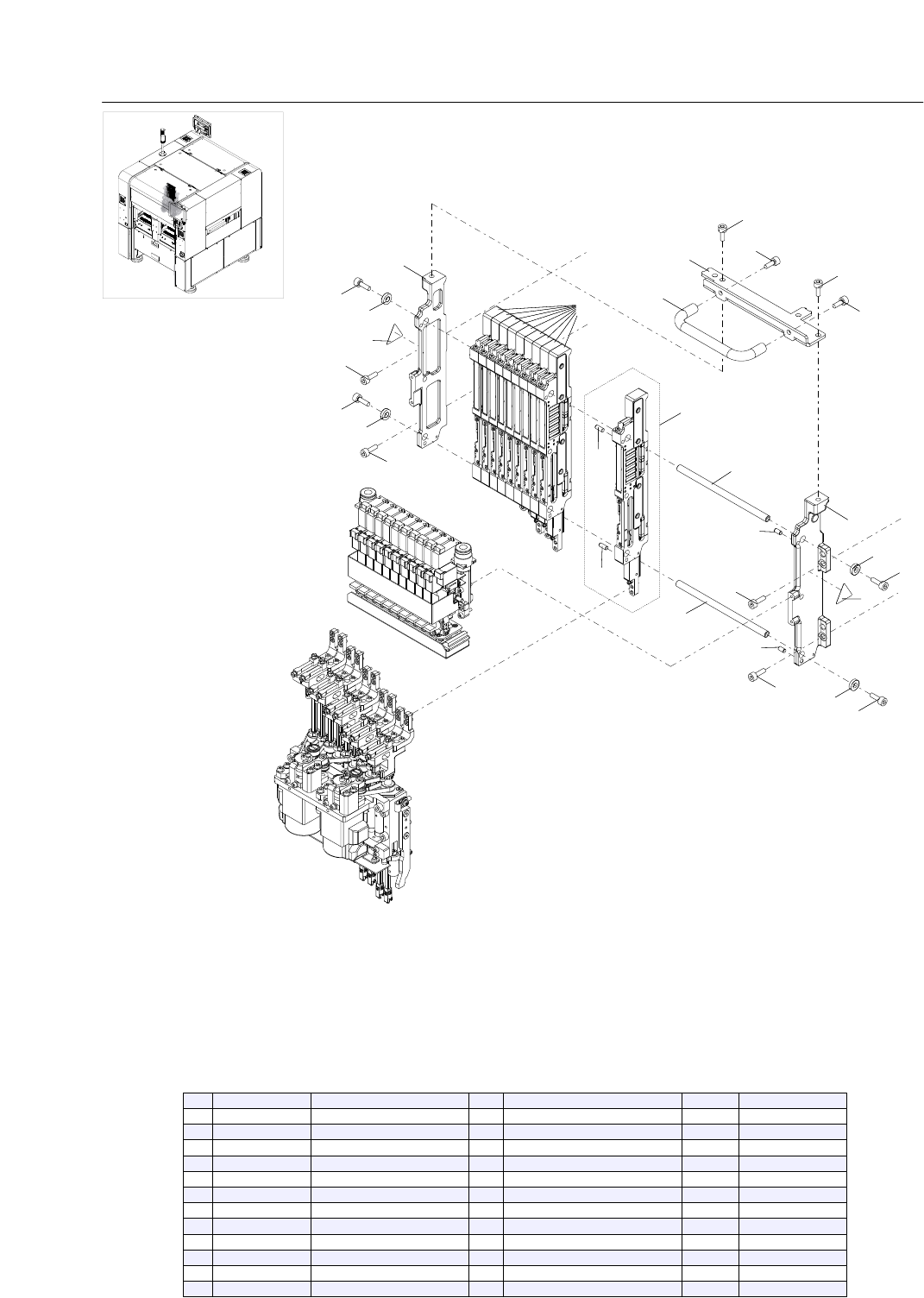

Z-axis Assy (HM)
Head Section
KMG-1704
5-9
NO
Parts_No.
Parts_Name
Q'ty
Remarks
Compati
Revision_No._date
1
KLW-M71G5-00
Z UNIT ASSY.
10
M31 ~ M40 : Z1-axis ~ Z10-axis
2
KLW-M71G1-01
SIDE PLATE,R
1
3
KLW-M71G2-01
SIDE PLATE,L
1
4
KHY-M71G3-00
SHAFT 1
2
5
90990-28J078
WASHER,PLAIN
4
6
90K41-001400
LABEL,CAUTION
2
"Strong magnetic field" pictogram
7
91312-05014
BOLT,HEX.SOCKET HEAD
8
8
99480-04008
PIN,PARALLEL
2
9
99480-04010
PIN,PARALLEL
20
10
KMG-M711H-00
STAY,HANDLE
1
11
KH2-M1324-01
GRIP
1
12
91312-05012
BOLT,HEX.SOCKET HEAD
4
26
18
24
23
31
35
30
5
22
32
34
22
1
5
29
15
5
15
5
40
21
39
37
14
38
40
2
10
37
5
10
7
35
4
12
39
27
34
28
27
28
32
9
16
33
33
13
31
2
25
7
6
36
20
2
25
33
6
19
11
9
17
13
18
17
8
26
18
24
23
31
35
30
5
22
32
34
22
1
5
29
15
5
15
5
40
21
39
37
14
38
40
2
10
37
5
10
7
35
4
12
39
27
34
28
27
28
32
9
16
33
33
13
31
2
25
7
6
36
20
2
25
33
6
19
11
9
17
13
18
17
8
R-axis Drive (HM)
Head Section
KMG-1702
5-10
NO
Parts_No.
Parts_Name
Q'ty
Remarks
Compati
Revision_No._date
1
90990-01J040
BOLT,HEX.SOCKET HEAD
4
2
90990-25J016
BEARING
16
3
90KB0-112503
AC SERVO MOTOR ASSY
1
M41 : R1-axis
4
90KB0-112504
AC SERVO MOTOR ASSY
1
M42 : R2-axis
5
91312-03006
BOLT HEX,SOCKET HEAD
24
6
91312-03008
BOLT HEX,SOCKET HEAD
4
7
91312-03012
BOLT HEX,SOCKET HEAD
6
8
91312-03030
BOLT HEX,SOCKET HEAD
4
9
91312-04006
BOLT HEX,SOCKET HEAD
4
10
91312-04010
BOLT HEX,SOCKET HEAD
4
11
91312-05020
BOLT HEX,SOCKET HEAD
2
12
91312-05035
BOLT HEX,SOCKET HEAD
4
13
92902-03200
WASHER,PLAIN
8
14
KHY-M7113-00
PLATE 2,BRG.
1
15
KHY-M7114-00
PLATE 3,BRG.
10
16
KHY-M7127-00
BLOCK 1,ADJUST
2
17
KHY-M7131-00
BELT 1
2
18
KHY-M7132-00
BELT 2
2
19
KKE-M7126-00
SHAFT 2,TENSION
2
20
KKE-M7128-00
SHAFT 3,TENSION
2
21
KKE-M7134-00
PLATE,SCREEN
2
22
KKE-M7135-00
PLATE,SCREEN
2
23
KLW-M7101-01
HOUSING,HEAD
1
24
KLW-M7102-00
PLATE,R MOTOR
1
25
KLW-M7125-00
STOPPER,R AXIS
2
26
KLW-M7129-00
BLOCK 2,ADJUST
2
27
KLW-M7131-00
PULLEY,R MOTOR
2
28
KLW-M7132-00
STOPPER 2,R AXIS
2
29
KLW-M7133-00
SHEET,SCREEN
1
30
KLW-M7138-00
PLATE
1
31
KV8-M7115-00
SHAFT 1,TENSION
4
32
92902-03600
WASHER,PLAIN
2
33
92902-04200
WASHER,PLAIN
6
34
92A08-04304
SCREW SET
4
35
98702-03006
SCREW,FLAT HEAD
11
36
99009-07800
CIRCLIP
2
37
99480-03008
PIN,PARALLEL
4
38
99480-04008
PIN,PARALLEL
2
39
90990-01J020
BOLT HEX,SOCKET HEAD
4
40
91317-03012
BOLT HEX,SOCKET HEAD
4
13
14
5
6
10
10
2
6
2
16
2
5
5
7
3
15
15
16
2
6
2
9
10
9
11
10
9
12
4
4
16
1
1
1
1
16
13
14
5
6
10
10
2
6
2
16
2
5
5
7
3
15
15
16
2
6
2
9
10
9
11
10
9
12
4
4
16
1
1
1
1
16
Head Shaft (HM)
Head Section
KMG-1702
5-11
NO
Parts_No.
Parts_Name
Q'ty
Remarks
Compati
Revision_No._date
1
$PF-M3
PLUG
20
2
90990-08J016
SCREW, PAN HEAD
40
3
90990-17J053
O-RING
20
4
91312-03006
BOLT HEX,SOCKET HEAD
20
5
KG7-M7137-A0
LEAF SPRING
20
6
KLW-M714W-00
PLATE,SPRING
20
7
KHY-M7105-00
HOLDER,NOZZLE
8
8
KKS-M7105-00
HOLDER,NOZZLE
2
With V slot Holder
9
KLW-M7107-A1
HEAD SHAFT 1 ASSY.
4
Under a pulley
10
KLW-M7107-B0
HEAD SHAFT 2 ASSY.
4
On a pulley
11
KLW-M7107-C1
HEAD SHAFT 1B ASSY.
1
Under a pulley .With V slot Holder
12
KLW-M7107-D0
HEAD SHAFT 2B ASSY.
1
On a pulley . With V slot Holder
13
KLW-M711S-A0
SHAFT 1,SPARE
1
Spare for H1,2,4,5,6,7,9,10
14
KLW-M711S-B0
SHAFT 2,SPARE
1
Spare for H3,8 _With V slot Holder
15
KHY-M7108-00
COLLAR,BRG.
10
16
90990-25J026
BEARING
20
extractive-selected from ball-spline
